Penumbral Lunar Eclipse of 0653 May 18

Fred Espenak

Introduction

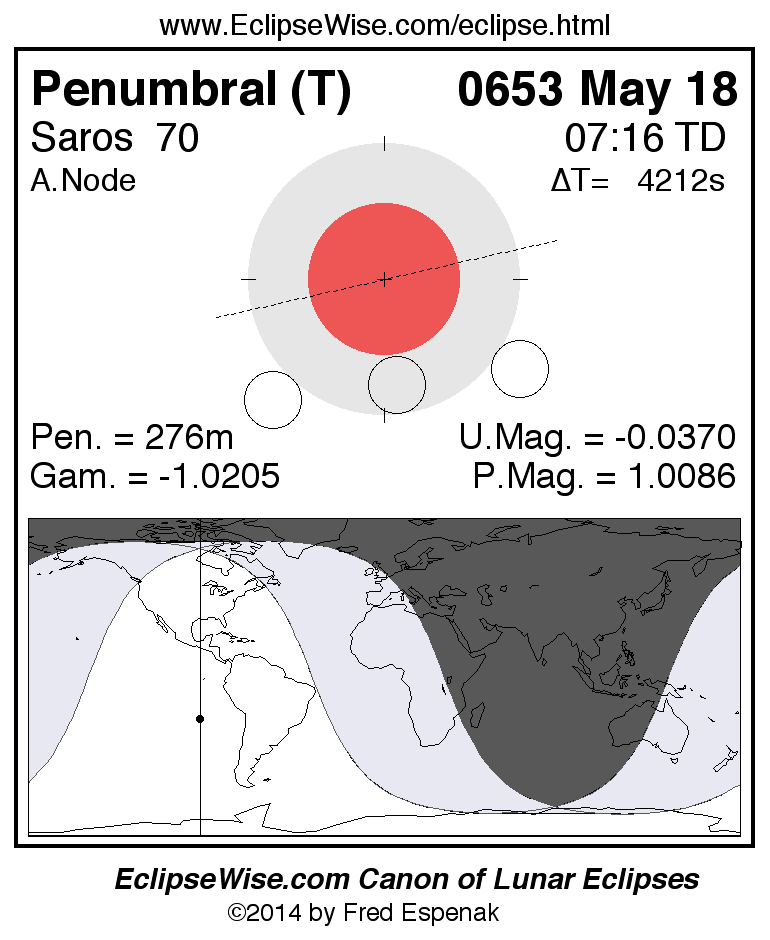

The Penumbral Lunar Eclipse of 0653 May 18 is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 0653 May 18 at 07:15:60 TD (06:05:48 UT1). This is 4.6 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Ophiuchus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -15703.

The eclipse belongs to Saros 70 and is number 66 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This very deep penumbral eclipse is a rare total penumbral eclipse in which the entire disk of the Moon is immersed in the penumbral shadow. It has a penumbral eclipse magnitude of 1.0086 and a penumbral eclipse duration of 276.2 minutes. Gamma has a value of -1.0205.

The penumbral lunar eclipse of 0653 May 18 is followed two weeks later by a total solar eclipse on 0653 Jun 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4211.4 seconds for this eclipse. The uncertainty in ΔT is 108.9 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.45°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 0653 May 18 .


Eclipse Data: Penumbral Lunar Eclipse of 0653 May 18

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.00858
Umbral Magnitude-0.03699
Gamma-1.02047
Epsilon 0.9396°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 0653 May 18 at 07:15:59.8 TD (06:05:48.4 UT1) 1959703.754033
Ecliptic Opposition 0653 May 18 at 07:04:22.6 TD (05:54:11.1 UT1) 1959703.745962
Equatorial Opposition 0653 May 18 at 07:30:26.5 TD (06:20:15.0 UT1) 1959703.764063
Geocentric Coordinates of Sun and Moon
0653 May 18 at 07:15:59.8 TD (06:05:48.4 UT1)
Coordinate Sun Moon
Right Ascension03h48m00.3s15h47m30.9s
Declination+20°08'02.8"-21°04'00.3"
Semi-Diameter 15'44.4" 15'03.3"
Eq. Hor. Parallax 08.7" 0°55'15.0"
Geocentric Libration of Moon
Angle Value
l -4.0°
b 1.3°
c 14.1°
Earth's Shadows
Parameter Value
Penumbral Radius 1.1948°
Umbral Radius 0.6701°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 4211.4 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 70 (66/72)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 0653 May 18

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP104:57:55.703:47:44.220°54.5'S059°43.5'W 236.5° 1.4448°
Greatest EclipseGreatest07:15:59.806:05:48.421°04.0'S093°04.5'W 187.0° 0.9396°
Penumbral EndsP409:34:08.008:23:56.621°13.0'S126°26.2'W 137.4° 1.4466°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h36m12.3s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 0653 May 18

Polynomial Besselian Elements
0653 May 18 at 07:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.24057 -0.91714 0.3514 1.19472 0.67004 0.25089
1 0.47406 -0.05811 0.0002 0.00030 0.00030 0.00008
2 0.00019 0.00013 -0.0000 0.00000 0.00000 0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 7.000

Explanation of Besselian Elements

Links for the Penumbral Lunar Eclipse of 0653 May 18

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 0653 May 18 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4211.4 seconds for this eclipse. The uncertainty in ΔT is 108.9 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.45°.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
