Penumbral Lunar Eclipse of 2020 Jun 05

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Penumbral Lunar Eclipse of 2020 Jun 05 is visible from the following geographic regions:

  • Europe, Africa, Asia, Australia

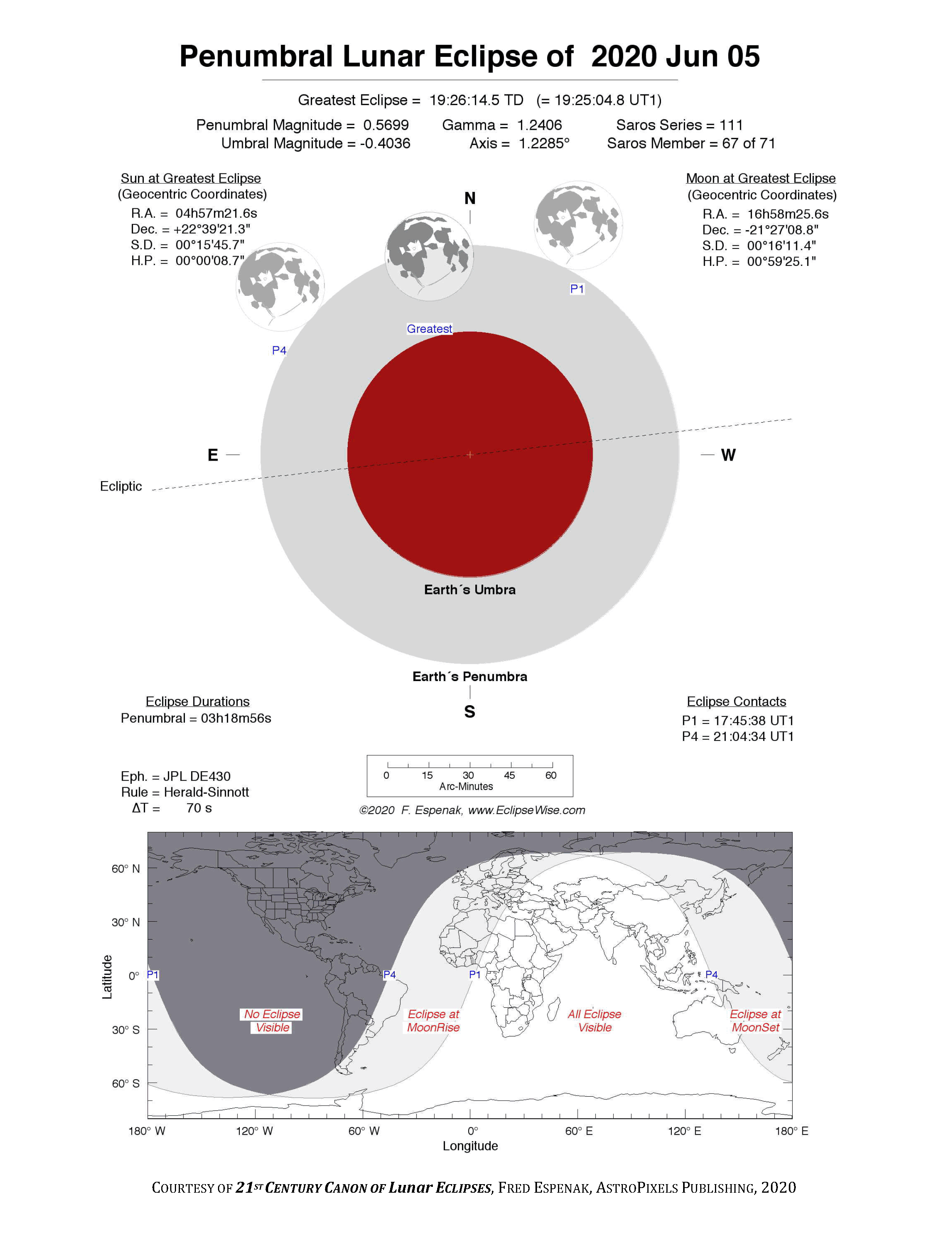

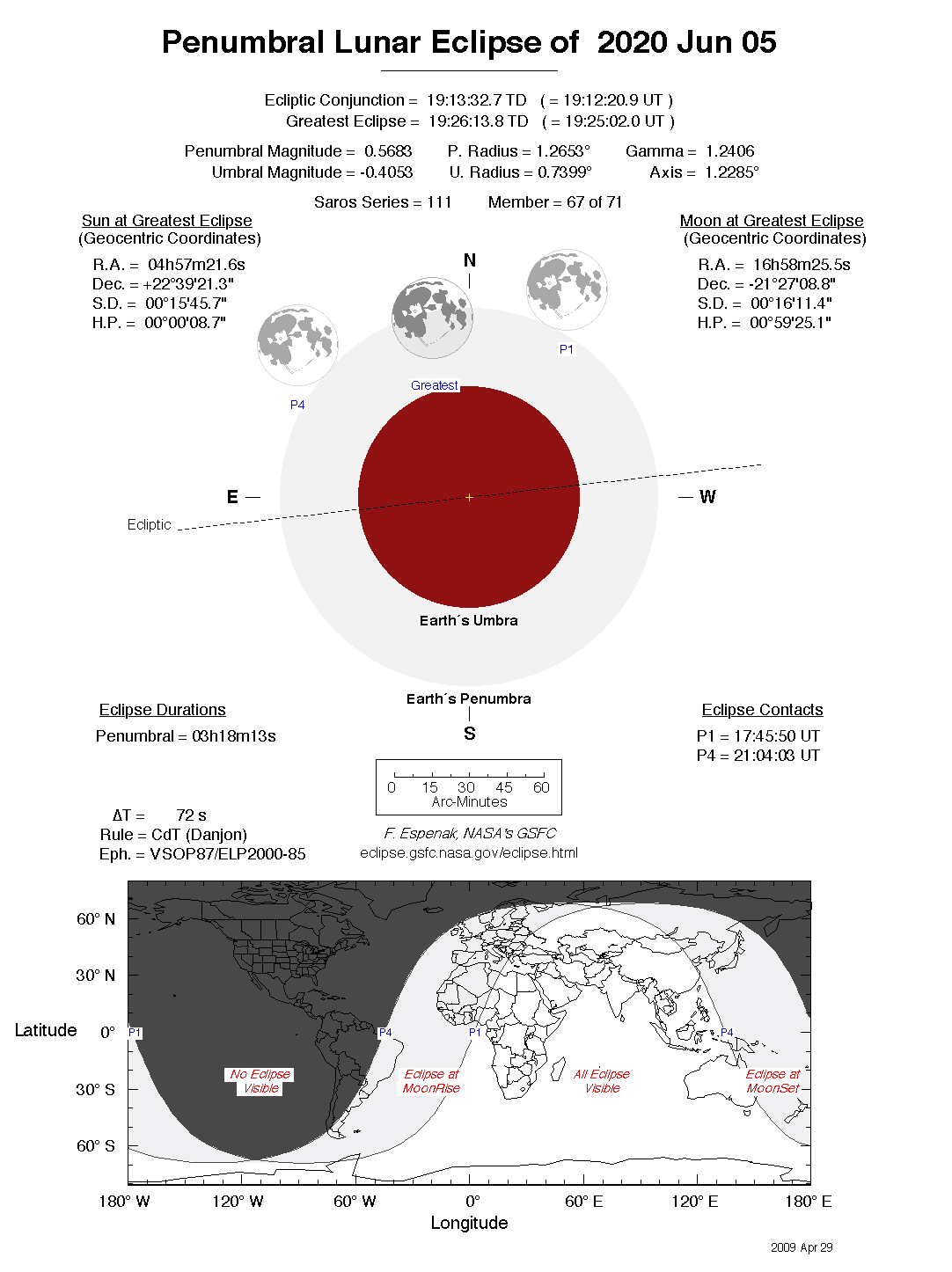

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2020 Jun 05 at 19:26:14 TD (19:25:05 UT1). This is 2.7 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Ophiuchus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1205.

The eclipse belongs to Saros 111 and is number 67 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The penumbral lunar eclipse of 2020 Jun 05 is followed two weeks later by a annular solar eclipse on 2020 Jun 21.

Another lunar eclipse occurs one synodic month after the 2020 Jun 05 eclipse. It is the penumbral lunar eclipse of 2020 Jul 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 69.6 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 2020 Jun 05 .


Eclipse Data: Penumbral Lunar Eclipse of 2020 Jun 05

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 0.56993
Umbral Magnitude-0.40361
Gamma 1.24063
Epsilon 1.2285°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2020 Jun 05 at 19:26:14.5 TD (19:25:04.8 UT1) 2459006.309083
Ecliptic Opposition 2020 Jun 05 at 19:13:32.6 TD (19:12:23.0 UT1) 2459006.300266
Equatorial Opposition 2020 Jun 05 at 18:58:57.9 TD (18:57:48.3 UT1) 2459006.290142
Geocentric Coordinates of Sun and Moon
2020 Jun 05 at 19:26:14.5 TD (19:25:04.8 UT1)
Coordinate Sun Moon
Right Ascension04h57m21.6s16h58m25.6s
Declination+22°39'21.3"-21°27'08.8"
Semi-Diameter 15'45.7" 16'11.4"
Eq. Hor. Parallax 08.7" 0°59'25.1"
Geocentric Libration of Moon
Angle Value
l 4.2°
b -1.5°
c 4.6°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2689°
Umbral Radius 0.7435°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 69.6 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 111 (67/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 2020 Jun 05

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP117:46:47.317:45:37.621°15.4'S092°32.7'E 334.7° 1.5373°
Greatest EclipseGreatest19:26:14.519:25:04.821°27.1'S068°39.4'E 11.6° 1.2285°
Penumbral EndsP421:05:43.621:04:34.021°38.5'S044°45.6'E 48.6° 1.5367°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)03h18m56.3s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 2020 Jun 05

Polynomial Besselian Elements
2020 Jun 05 at 19:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.00941 1.25237 0.3954 1.26909 0.74370 0.26988
1 0.54568 -0.11257 0.0001 -0.00039 -0.00039 -0.00011
2 -0.00020 0.00013 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Penumbral Lunar Eclipse of 2020 Jun 05

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 2020 Jun 05 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 69.6 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
