Partial Lunar Eclipse of 2030 Jun 15

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Partial Lunar Eclipse of 2030 Jun 15 is visible from the following geographic regions:

  • Europe, Africa, Asia, Australia

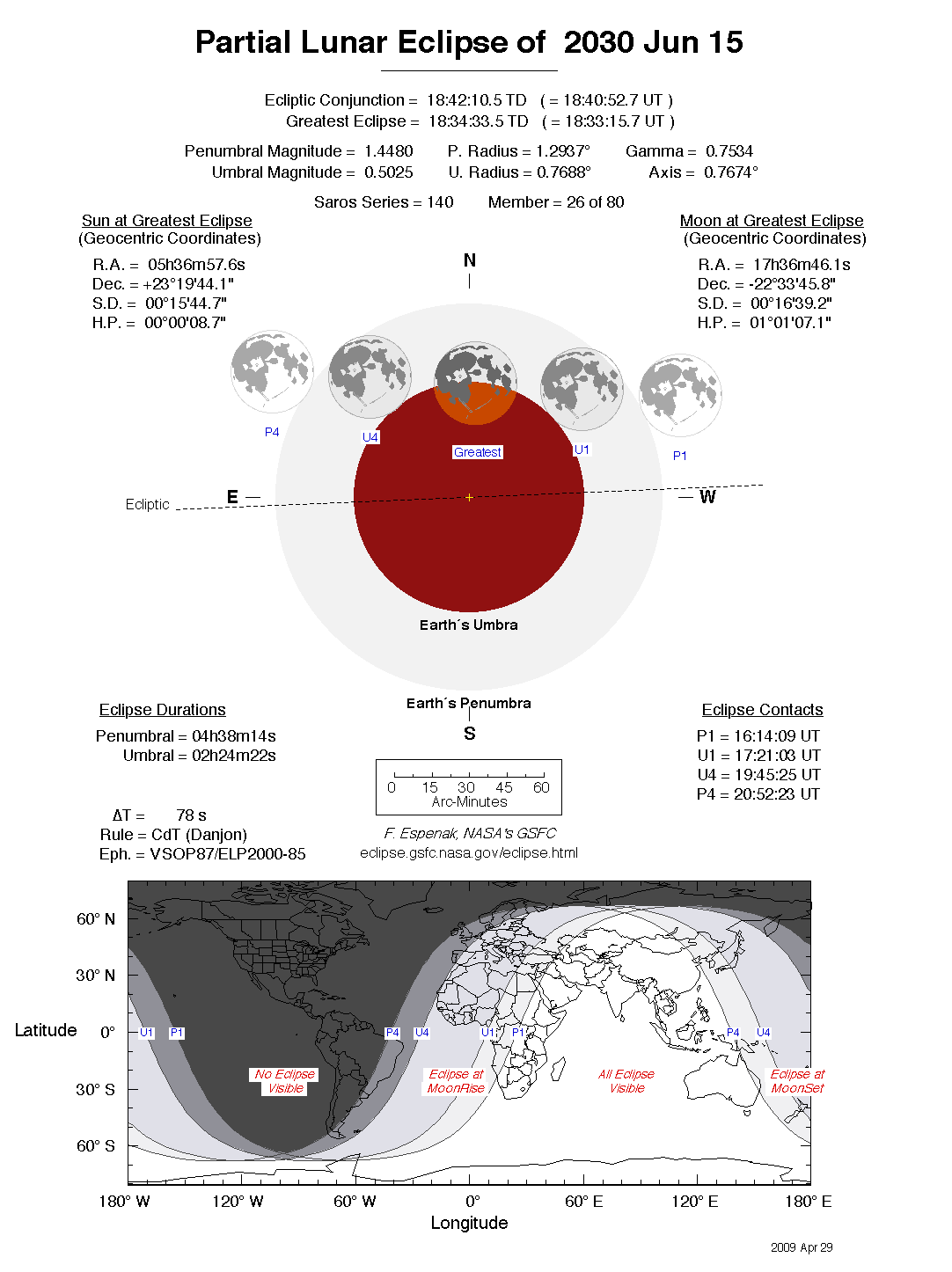

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2030 Jun 15 at 18:34:33 TD (18:33:19 UT1). This is 0.8 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Ophiuchus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1329.

The eclipse belongs to Saros 140 and is number 25 of 77 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The partial lunar eclipse of 2030 Jun 15 is preceded two weeks earlier by a annular solar eclipse on 2030 Jun 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 74.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 2030 Jun 15 .


Eclipse Data: Partial Lunar Eclipse of 2030 Jun 15

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.44952
Umbral Magnitude 0.50401
Gamma 0.75346
Epsilon 0.7674°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2030 Jun 15 at 18:34:33.5 TD (18:33:19.4 UT1) 2462668.273141
Ecliptic Opposition 2030 Jun 15 at 18:42:10.7 TD (18:40:56.6 UT1) 2462668.278433
Equatorial Opposition 2030 Jun 15 at 18:39:03.0 TD (18:37:48.9 UT1) 2462668.276260
Geocentric Coordinates of Sun and Moon
2030 Jun 15 at 18:34:33.5 TD (18:33:19.4 UT1)
Coordinate Sun Moon
Right Ascension05h36m57.6s17h36m46.1s
Declination+23°19'44.0"-22°33'45.8"
Semi-Diameter 15'44.7" 16'39.2"
Eq. Hor. Parallax 08.7" 1°01'07.1"
Geocentric Libration of Moon
Angle Value
l 1.6°
b -1.0°
c 3.8°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2974°
Umbral Radius 0.7725°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 74.1 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 140 (25/77)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 2030 Jun 15

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP116:15:01.516:13:47.422°37.8'S115°10.0'E 295.9° 1.5749°
Partial BeginsU117:21:59.717:20:45.622°36.0'S099°08.5'E 313.7° 1.0489°
Greatest EclipseGreatest18:34:33.518:33:19.422°33.8'S081°46.6'E 356.7° 0.7674°
Partial EndsU419:47:01.419:45:47.322°31.3'S064°26.0'E 39.6° 1.0481°
Penumbral EndsP420:54:03.320:52:49.222°28.8'S048°23.5'E 57.5° 1.5735°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h39m01.8s
Partial (U4 - U1)02h25m01.7s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 2030 Jun 15

Polynomial Besselian Elements
2030 Jun 15 at 19:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.20600 0.78058 0.4072 1.29729 0.77243 0.27753
1 0.58992 0.03412 0.0000 -0.00018 -0.00018 -0.00005
2 -0.00013 0.00012 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Partial Lunar Eclipse of 2030 Jun 15

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 2030 Jun 15 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 74.1 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
