Partial Lunar Eclipse of 2209 Apr 21

Fred Espenak

Introduction

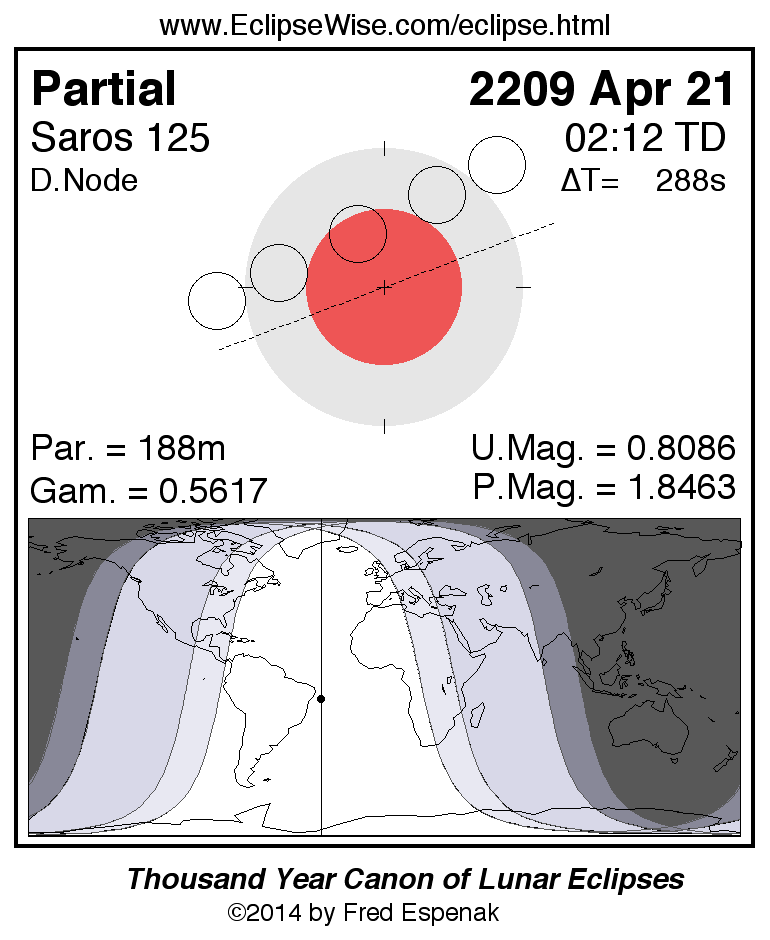

The Partial Lunar Eclipse of 2209 Apr 21 is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2209 Apr 21 at 02:12:20 TD (02:07:32 UT1). This is 6.1 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 3541.

The eclipse belongs to Saros 125 and is number 59 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The partial lunar eclipse of 2209 Apr 21 is followed two weeks later by a hybrid solar eclipse on 2209 May 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 287.5 seconds for this eclipse. The uncertainty in ΔT is 71.4 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.30°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 2209 Apr 21 .


Eclipse Data: Partial Lunar Eclipse of 2209 Apr 21

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.84633
Umbral Magnitude 0.80860
Gamma 0.56172
Epsilon 0.5275°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2209 Apr 21 at 02:12:19.9 TD (02:07:32.3 UT1) 2527990.588569
Ecliptic Opposition 2209 Apr 21 at 02:05:59.9 TD (02:01:12.4 UT1) 2527990.584171
Equatorial Opposition 2209 Apr 21 at 01:41:08.2 TD (01:36:20.7 UT1) 2527990.566906
Geocentric Coordinates of Sun and Moon
2209 Apr 21 at 02:12:19.9 TD (02:07:32.3 UT1)
Coordinate Sun Moon
Right Ascension01h54m21.7s13h55m18.5s
Declination+11°42'26.9"-11°14'01.2"
Semi-Diameter 15'56.0" 15'21.3"
Eq. Hor. Parallax 08.8" 0°56'21.1"
Geocentric Libration of Moon
Angle Value
l -5.0°
b -0.7°
c 18.8°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2166°
Umbral Radius 0.6854°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 287.5 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 125 (59/72)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 2209 Apr 21

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP123:26:24.323:21:36.810°35.3'S008°19.2'E 317.1° 1.4712°
Partial BeginsU100:38:17.800:33:30.310°52.1'S009°06.8'W 330.2° 0.9406°
Greatest EclipseGreatest02:12:19.902:07:32.311°14.0'S031°54.8'W 26.1° 0.5275°
Partial EndsU403:46:27.503:41:40.011°35.9'S054°43.9'W 82.0° 0.9421°
Penumbral EndsP404:58:12.004:53:24.511°52.5'S072°07.3'W 95.1° 1.4738°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h31m47.7s
Partial (U4 - U1)03h08m09.7s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 2209 Apr 21

Polynomial Besselian Elements
2209 Apr 21 at 02:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.14032 0.51866 0.2043 1.21649 0.68537 0.25588
1 0.44641 -0.21872 0.0002 0.00038 0.00038 0.00010
2 0.00022 -0.00005 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 2.000

Explanation of Besselian Elements

Links for the Partial Lunar Eclipse of 2209 Apr 21

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 2209 Apr 21 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 287.5 seconds for this eclipse. The uncertainty in ΔT is 71.4 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 0.30°.
