Partial Solar Eclipse of 0647 Sep 04

Fred Espenak

Introduction

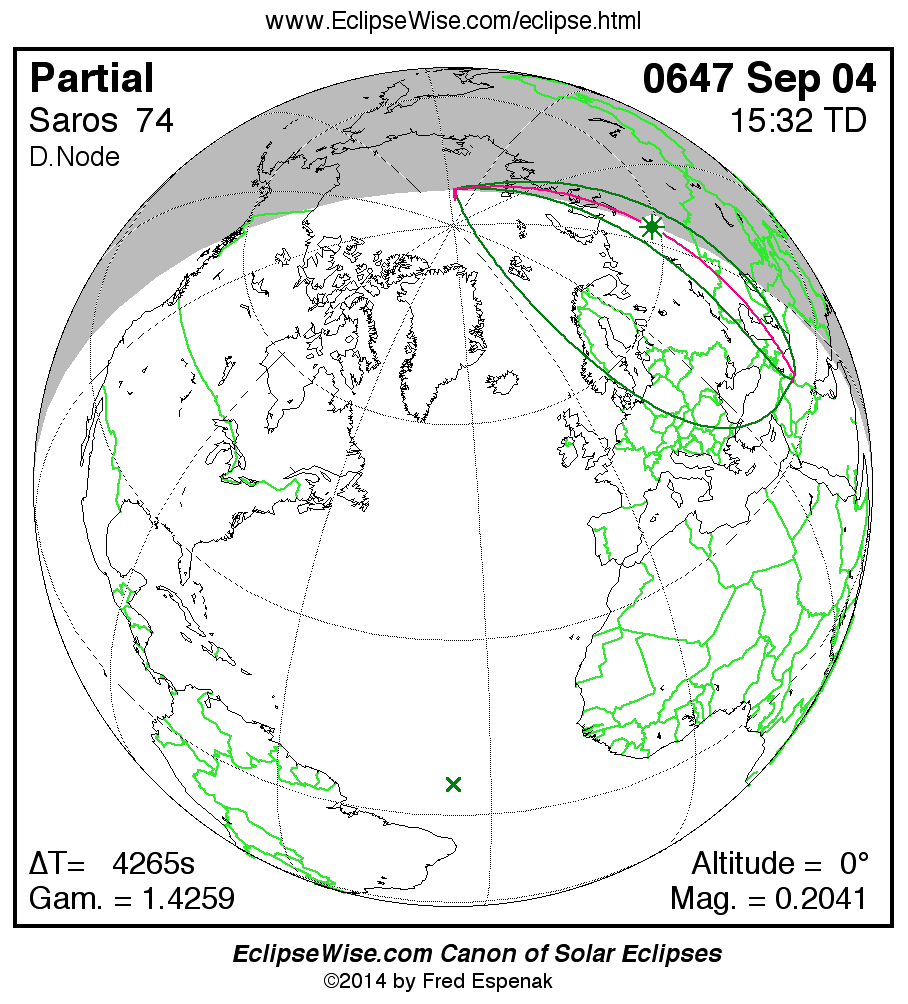

eclipse map


The Partial Solar Eclipse of 0647 Sep 04 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0647 Sep 04 at 15:31:33 TD (14:20:29 UT1). This is 1.0 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -15773.

The eclipse belongs to Saros 74 and is number 71 of 75 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.2041, while Gamma has a value of 1.4259.

The partial solar eclipse of 0647 Sep 04 is followed two weeks later by a total lunar eclipse on 0647 Sep 19.

Another solar eclipse occurs one synodic month after the 0647 Sep 04 eclipse. It is the partial solar eclipse of 0647 Oct 04.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4264.0 seconds for this eclipse. The uncertainty in ΔT is 109.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.46°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 0647 Sep 04 .


Eclipse Data: Partial Solar Eclipse of 0647 Sep 04

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.20411
Eclipse Obscuration 0.10834
Gamma 1.42592
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 0647 Sep 04 at 15:31:33.3 TD (14:20:29.2 UT1) 1957621.097561
Ecliptic Conjunction 0647 Sep 04 at 15:17:37.0 TD (14:06:32.9 UT1) 1957621.087881
Equatorial Conjunction 0647 Sep 04 at 14:12:28.8 TD (13:01:24.8 UT1) 1957621.042648
Geocentric Coordinates of Sun and Moon
0647 Sep 04 at 15:31:33.3 TD (14:20:29.2 UT1)
Coordinate Sun Moon
Right Ascension11h00m24.5s11h03m09.7s
Declination+06°24'50.3"+07°41'15.2"
Semi-Diameter 15'58.2" 16'36.5"
Eq. Hor. Parallax 08.8" 1°00'57.3"
Geocentric Libration of Moon
Angle Value
l 2.6°
b -1.8°
c 21.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 4264.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 74 (71/75)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 0647 Sep 04

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP114:33:23.313:22:19.380°46.8'N112°43.2'E
Last External ContactP416:30:17.215:19:13.240°02.2'N044°57.4'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:43:55.813:32:51.783°25.1'N143°28.6'E
South Extreme Path Limit 1S116:19:49.215:08:45.134°47.3'N046°38.3'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 0647 Sep 04

Polynomial Besselian Elements
0647 Sep 04 at 16:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.91511 1.12745 6.4037 0.53574 -0.01036 60.6886
1 0.51055 -0.27348 -0.0152 0.00005 0.00005 15.0043
2 -0.00008 -0.00010 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046681
Tan ƒ2 0.0046449

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 16.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 0647 Sep 04

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 0647 Sep 04 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4264.0 seconds for this eclipse. The uncertainty in ΔT is 109.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.46°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
