Total Solar Eclipse of 1235 Feb 19

Fred Espenak

Introduction

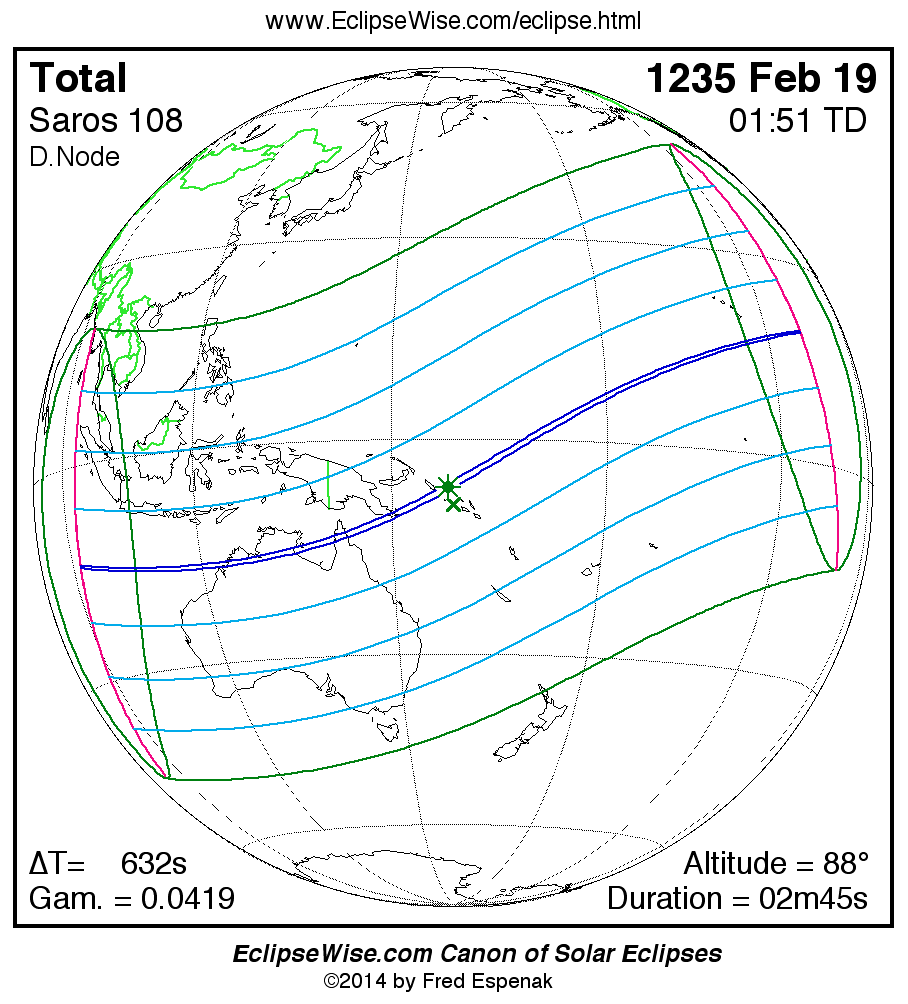

eclipse map


The Total Solar Eclipse of 1235 Feb 19 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1235 Feb 19 at 01:50:45 TD (01:40:13 UT1). This is 2.3 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -8507.

The eclipse belongs to Saros 108 and is number 39 of 76 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total solar eclipse of 1235 Feb 19 is preceded two weeks earlier by a penumbral lunar eclipse on 1235 Feb 04, and it is followed two weeks later by a penumbral lunar eclipse on 1235 Mar 06.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 631.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 1235 Feb 19 .


Eclipse Data: Total Solar Eclipse of 1235 Feb 19

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.02798
Eclipse Obscuration 1.05674
Gamma 0.04187
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1235 Feb 19 at 01:50:45.1 TD (01:40:13.4 UT1) 2172190.569600
Ecliptic Conjunction 1235 Feb 19 at 01:50:18.7 TD (01:39:47.0 UT1) 2172190.569294
Equatorial Conjunction 1235 Feb 19 at 01:52:02.6 TD (01:41:30.9 UT1) 2172190.570496
Geocentric Coordinates of Sun and Moon
1235 Feb 19 at 01:50:45.1 TD (01:40:13.4 UT1)
Coordinate Sun Moon
Right Ascension22h36m09.9s22h36m07.1s
Declination-08°51'19.6"-08°48'55.9"
Semi-Diameter 16'06.1" 16'16.7"
Eq. Hor. Parallax 08.9" 0°59'44.6"
Geocentric Libration of Moon
Angle Value
l 3.7°
b -0.0°
c -23.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 631.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 108 (39/76)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1235 Feb 19

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP123:07:14.722:56:43.014°33.4'S107°01.1'E
First Internal ContactP201:02:33.200:52:01.510°53.1'S078°47.7'E
Last Internal ContactP302:38:54.102:28:22.421°20.7'N127°03.8'W
Last External ContactP404:34:19.604:23:47.917°40.6'N155°16.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N100:21:09.300:10:37.719°25.0'N094°01.3'E
South Extreme Path Limit 1S100:22:32.400:12:00.745°45.7'S081°17.4'E
North Extreme Path Limit 2N203:20:03.803:09:32.251°22.7'N145°05.2'W
South Extreme Path Limit 2S203:19:11.903:08:40.213°45.1'S131°28.5'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1235 Feb 19

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU100:04:32.223:54:00.613°43.8'S092°50.0'E
First Internal ContactU200:05:09.923:54:38.313°42.9'S092°40.7'E
Last Internal ContactU303:36:22.003:25:50.418°30.9'N140°55.8'W
Last External ContactU403:36:55.403:26:23.818°30.2'N141°04.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N100:04:50.623:54:18.913°33.3'S092°47.2'E
South Extreme Path Limit 1S100:04:51.723:54:20.113°53.4'S092°43.5'E
North Extreme Path Limit 2N203:36:39.103:26:07.518°39.5'N141°01.5'W
South Extreme Path Limit 2S203:36:38.203:26:06.618°21.6'N140°58.2'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1235 Feb 19

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C100:04:51.123:54:19.413°43.4'S092°45.3'E
Extreme Central Line Limit 2C203:36:38.703:26:07.118°30.5'N140°59.9'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse01:50:45.101:40:13.406°35.7'S155°08.9'E 87.6° 163.6° 94.9 km02m45.05s
Greatest Duration01:46:46.101:36:14.507°11.5'S156°41.9'E 86.8° 121.5° 95.0 km02m45.21s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1235 Feb 19

Polynomial Besselian Elements
1235 Feb 19 at 02:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.07207 0.06457 -8.8532 0.54341 -0.00274 206.4899
1 0.54344 0.15806 0.0151 0.00009 0.00009 15.0033
2 -0.00003 0.00005 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047073
Tan ƒ2 0.0046838

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 2.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 1235 Feb 19

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 1235 Feb 19 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 631.7 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
