Solar Eclipse Prime Page

Annular Solar Eclipse of 1297 Apr 22

Fred Espenak

Introduction

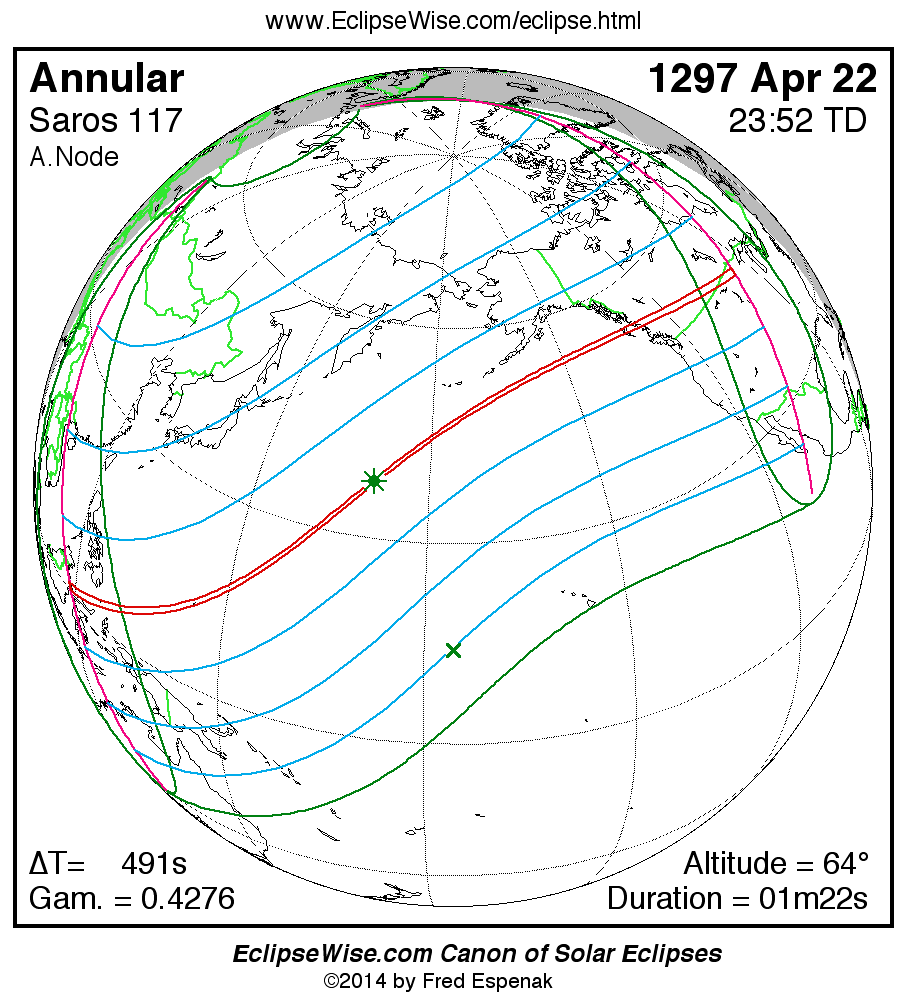

eclipse map


The Annular Solar Eclipse of 1297 Apr 22 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1297 Apr 22 at 23:51:53 TD (23:43:43 UT1). This is 6.1 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of -7738.

The eclipse belongs to Saros 117 and is number 29 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 1297 Apr 22 is preceded two weeks earlier by a partial lunar eclipse on 1297 Apr 09.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 490.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1297 Apr 22 .


Eclipse Data: Annular Solar Eclipse of 1297 Apr 22

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.98497
Eclipse Obscuration 0.97017
Gamma 0.42758
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1297 Apr 22 at 23:51:53.5 TD (23:43:42.9 UT1) 2194899.488692
Ecliptic Conjunction 1297 Apr 22 at 23:56:42.6 TD (23:48:32.0 UT1) 2194899.492038
Equatorial Conjunction 1297 Apr 23 at 00:13:30.3 TD (00:05:19.8 UT1) 2194899.503701
Geocentric Coordinates of Sun and Moon
1297 Apr 22 at 23:51:53.5 TD (23:43:42.9 UT1)
Coordinate Sun Moon
Right Ascension02h30m24.7s02h29m44.0s
Declination+14°52'52.9"+15°14'49.7"
Semi-Diameter 15'49.6" 15'22.2"
Eq. Hor. Parallax 08.7" 0°56'24.4"
Geocentric Libration of Moon
Angle Value
l 4.7°
b -0.5°
c -16.9°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 490.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 117 (29/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1297 Apr 22

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP121:03:22.020:55:11.507°58.8'S137°26.3'E
First Internal ContactP223:38:32.923:30:22.448°17.1'N079°10.1'E
Last Internal ContactP300:04:42.023:56:31.572°33.1'N032°14.0'E
Last External ContactP402:40:22.302:32:11.838°39.0'N116°39.6'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:33:04.423:24:53.953°02.9'N077°11.7'E
South Extreme Path Limit 1S121:52:02.021:43:51.530°11.2'S132°01.0'E
North Extreme Path Limit 2N200:10:06.500:01:56.069°36.7'N042°57.8'E
South Extreme Path Limit 2S201:51:54.101:43:43.616°35.4'N112°17.4'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1297 Apr 22

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU122:08:55.322:00:44.700°54.4'N118°40.6'E
First Internal ContactU222:10:56.622:02:46.101°20.1'N118°03.5'E
Last Internal ContactU301:32:34.501:24:24.047°39.7'N095°01.5'W
Last External ContactU401:34:41.701:26:31.247°14.1'N095°48.9'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:10:27.822:02:17.201°37.0'N118°06.1'E
South Extreme Path Limit 1S122:09:24.322:01:13.800°37.4'N118°37.8'E
North Extreme Path Limit 2N201:33:04.401:24:53.947°56.5'N094°58.6'W
South Extreme Path Limit 2S201:34:11.401:26:00.946°57.1'N095°51.5'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1297 Apr 22

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C122:09:55.922:01:45.301°07.1'N118°22.1'E
Extreme Central Line Limit 2C201:33:38.101:25:27.647°26.8'N095°25.3'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse23:51:53.523:43:42.937°45.0'N168°21.5'E 64.5° 150.3° 58.5 km01m22.29s
Greatest Duration22:09:55.922:01:45.301°07.1'N118°22.1'E 0.0° 75.1° 121.2 km01m43.43s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1297 Apr 22

Polynomial Besselian Elements
1297 Apr 23 at 00:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.10928 0.41959 14.8821 0.55454 0.00834 180.9071
1 0.48550 0.21759 0.0122 0.00011 0.00011 15.0028
2 0.00003 -0.00011 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046271
Tan ƒ2 0.0046041

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 0.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1297 Apr 22

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1297 Apr 22 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 490.5 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
