Solar Eclipse Prime Page

Total Solar Eclipse of 1836 Nov 09

Fred Espenak

Introduction

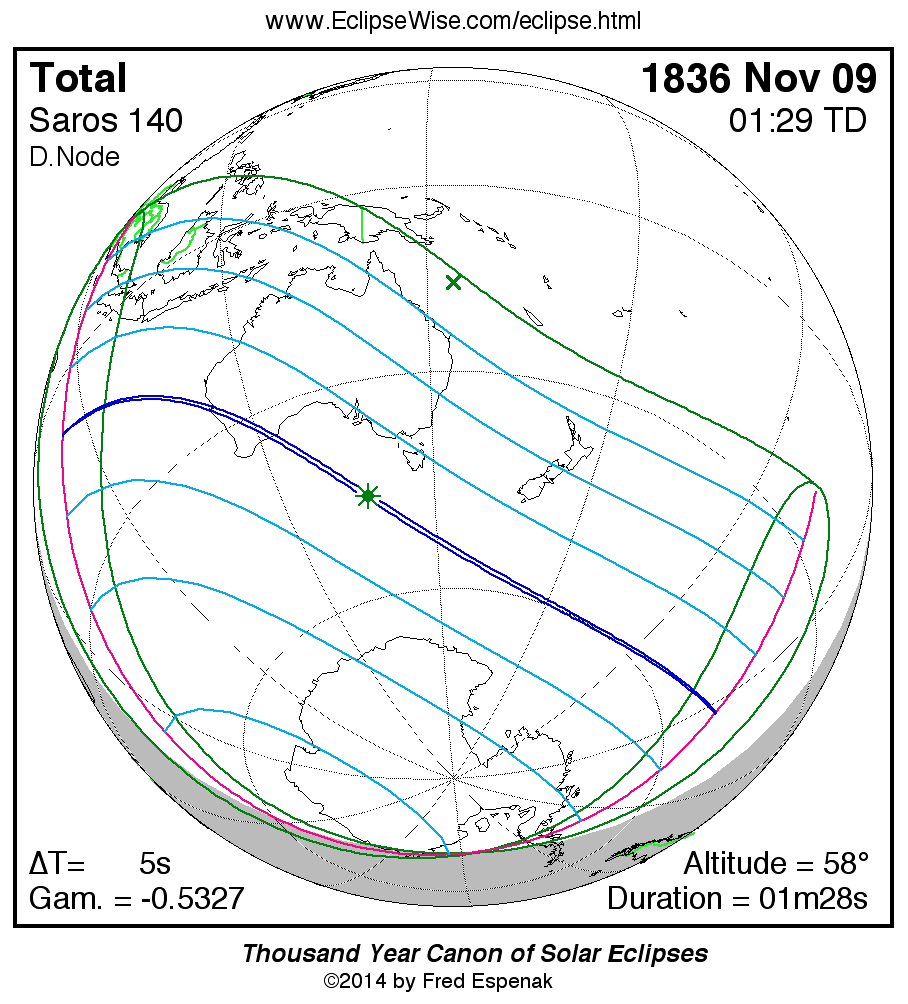

eclipse map


The Total Solar Eclipse of 1836 Nov 09 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1836 Nov 09 at 01:29:25 TD (01:29:20 UT1). This is 2.4 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of -1065.

The eclipse belongs to Saros 140 and is number 19 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total solar eclipse of 1836 Nov 09 is preceded two weeks earlier by a partial lunar eclipse on 1836 Oct 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 5.4 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 1836 Nov 09 .


Eclipse Data: Total Solar Eclipse of 1836 Nov 09

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.01910
Eclipse Obscuration 1.03857
Gamma-0.53272
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1836 Nov 09 at 01:29:25.3 TD (01:29:20.0 UT1) 2391957.562037
Ecliptic Conjunction 1836 Nov 09 at 01:35:00.3 TD (01:34:55.0 UT1) 2391957.565914
Equatorial Conjunction 1836 Nov 09 at 01:52:32.1 TD (01:52:26.7 UT1) 2391957.578087
Geocentric Coordinates of Sun and Moon
1836 Nov 09 at 01:29:25.3 TD (01:29:20.0 UT1)
Coordinate Sun Moon
Right Ascension14h57m00.8s14h56m10.6s
Declination-16°51'02.2"-17°20'21.0"
Semi-Diameter 16'09.5" 16'14.3"
Eq. Hor. Parallax 08.9" 0°59'35.6"
Geocentric Libration of Moon
Angle Value
l -3.9°
b 0.7°
c 15.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 5.4 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 140 (19/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 1836 Nov 09

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP122:55:07.822:55:02.401°59.5'N102°50.4'E
Last External ContactP404:03:28.704:03:23.340°18.2'S139°56.3'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:35:14.123:35:08.821°44.9'N099°08.4'E
South Extreme Path Limit 1S103:23:35.603:23:30.320°54.1'S138°13.8'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 1836 Nov 09

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU123:59:17.323:59:11.909°33.8'S083°16.6'E
First Internal ContactU223:59:32.823:59:27.409°38.1'S083°11.3'E
Last Internal ContactU302:59:00.502:58:55.251°18.8'S116°29.2'W
Last External ContactU402:59:20.602:59:15.351°13.7'S116°38.5'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:59:20.223:59:14.909°32.0'S083°16.4'E
South Extreme Path Limit 1S123:59:29.823:59:24.509°40.0'S083°11.5'E
North Extreme Path Limit 2N202:59:16.802:59:11.551°11.5'S116°39.3'W
South Extreme Path Limit 2S202:59:04.302:58:59.051°21.0'S116°28.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 1836 Nov 09

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C123:59:25.023:59:19.609°36.0'S083°13.9'E
Extreme Central Line Limit 2C202:59:10.602:59:05.251°16.2'S116°33.8'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse01:29:25.301:29:20.046°05.0'S136°48.2'E 57.6° 31.1° 76.8 km01m28.46s
Greatest Duration01:33:34.901:33:29.547°14.6'S138°34.8'E 57.5° 25.6° 76.5 km01m28.57s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 1836 Nov 09

Polynomial Besselian Elements
1836 Nov 09 at 01:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.45744 -0.38867 -16.8438 0.54505 -0.00110 199.0033
1 0.52237 -0.21330 -0.0114 -0.00009 -0.00009 15.0004
2 0.00008 0.00012 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047236
Tan ƒ2 0.0047001

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 1.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 1836 Nov 09

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 1836 Nov 09 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 5.4 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
