Annular Solar Eclipse of 1934 Aug 10

Fred Espenak

Introduction


The Annular Solar Eclipse of 1934 Aug 10 is visible from the following geographic regions:

  • Partial Eclipse: south Africa, Antarctica
  • Annular Eclipse: Angola, Nambia, Botswana, Zimbabwe, Zambia, Mozambique, S Africa

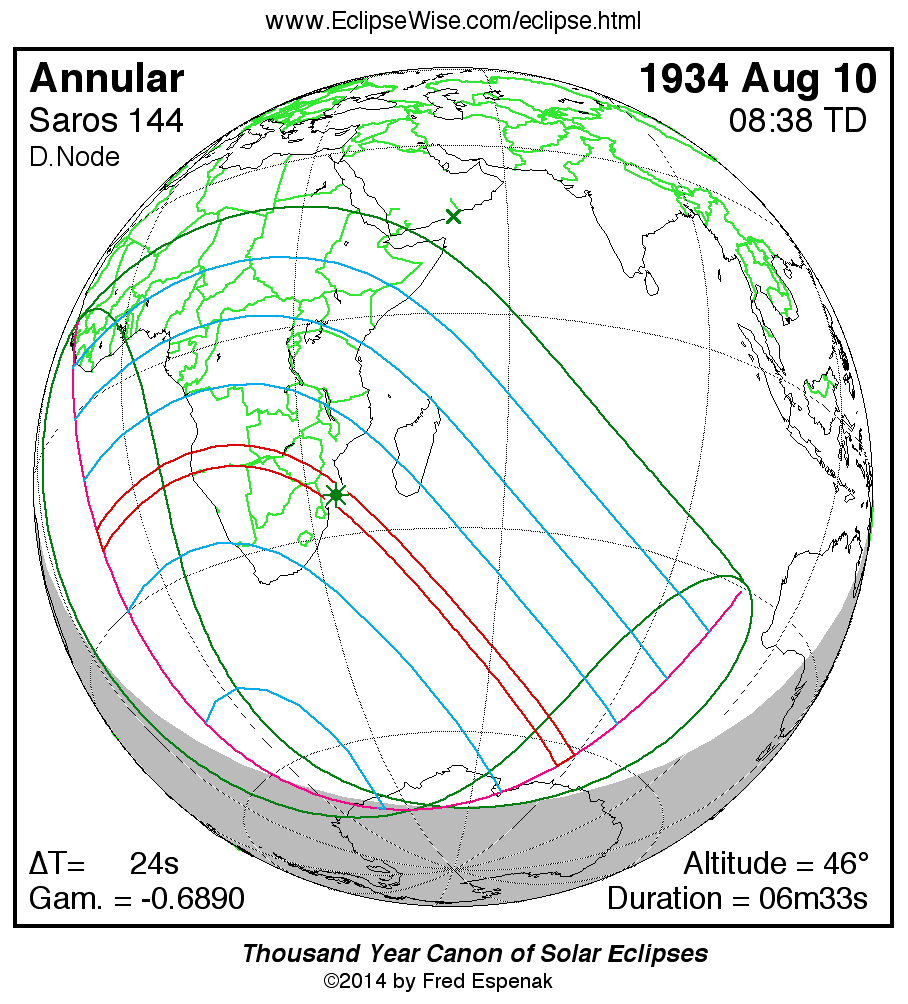

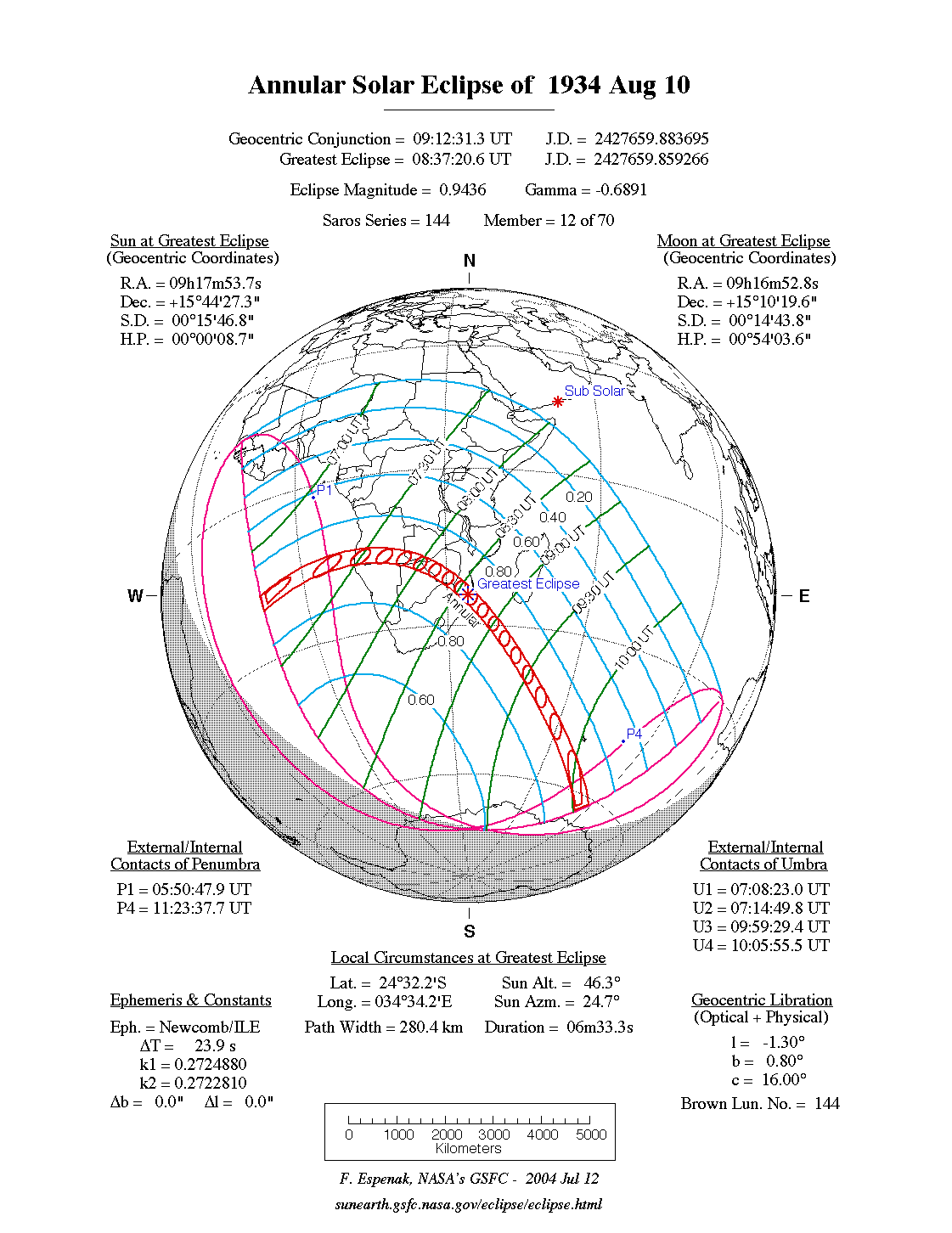

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1934 Aug 10 at 08:37:48 TD (08:37:24 UT1). This is 1.5 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of 144.

The eclipse belongs to Saros 144 and is number 12 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1934 Aug 10 is a relatively long annular eclipse with a duration at greatest eclipse of 06m33s. It has an eclipse magnitude of 0.9436.

The annular solar eclipse of 1934 Aug 10 is preceded two weeks earlier by a partial lunar eclipse on 1934 Jul 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 23.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1934 Aug 10 .


Eclipse Data: Annular Solar Eclipse of 1934 Aug 10

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94361
Eclipse Obscuration 0.89039
Gamma-0.68896
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1934 Aug 10 at 08:37:47.5 TD (08:37:23.7 UT1) 2427659.859302
Ecliptic Conjunction 1934 Aug 10 at 08:45:56.7 TD (08:45:32.9 UT1) 2427659.864964
Equatorial Conjunction 1934 Aug 10 at 09:12:57.7 TD (09:12:33.9 UT1) 2427659.883725
Geocentric Coordinates of Sun and Moon
1934 Aug 10 at 08:37:47.5 TD (08:37:23.7 UT1)
Coordinate Sun Moon
Right Ascension09h17m53.7s09h16m52.8s
Declination+15°44'27.3"+15°10'20.0"
Semi-Diameter 15'46.8" 14'43.8"
Eq. Hor. Parallax 08.7" 0°54'03.6"
Geocentric Libration of Moon
Angle Value
l -1.3°
b 0.8°
c 16.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 23.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 144 (12/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1934 Aug 10

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP105:51:14.005:50:50.102°43.3'S004°24.2'E
Last External ContactP411:24:05.211:23:41.447°11.3'S082°43.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N106:49:38.506:49:14.715°23.5'N015°25.6'W
South Extreme Path Limit 1S110:25:52.710:25:28.829°36.2'S105°45.5'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1934 Aug 10

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU107:08:49.007:08:25.118°34.8'S010°19.3'W
First Internal ContactU207:15:15.607:14:51.820°38.9'S011°16.3'W
Last Internal ContactU309:59:57.409:59:33.663°23.0'S087°15.3'E
Last External ContactU410:06:23.410:05:59.561°38.8'S088°23.0'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N107:10:07.107:09:43.318°06.7'S010°47.6'W
South Extreme Path Limit 1S107:14:01.307:13:37.521°05.6'S010°49.0'W
North Extreme Path Limit 2N210:05:05.710:04:41.861°15.1'S089°16.6'E
South Extreme Path Limit 2S210:01:10.910:00:47.163°44.9'S086°19.2'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1934 Aug 10

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C107:12:00.607:11:36.719°35.1'S010°48.1'W
Extreme Central Line Limit 2C210:03:12.210:02:48.362°29.8'S087°53.5'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse08:37:47.508:37:23.724°31.5'S034°27.5'E 46.3° 24.7° 280.3 km06m33.21s
Greatest Duration08:26:09.408:25:45.622°17.2'S031°49.2'E 45.8° 32.7° 290.1 km06m34.43s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1934 Aug 10

Polynomial Besselian Elements
1934 Aug 10 at 09:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.10048 -0.70692 15.7381 0.56589 0.01963 313.6651
1 0.46515 -0.20050 -0.0116 -0.00004 -0.00004 15.0026
2 -0.00003 -0.00006 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046138
Tan ƒ2 0.0045908

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 9.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1934 Aug 10

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1934 Aug 10 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 23.8 seconds for this eclipse.
