Solar Eclipse Prime Page

Annular Solar Eclipse of 1943 Aug 01

Fred Espenak

Introduction


The Annular Solar Eclipse of 1943 Aug 01 is visible from the following geographic regions:

  • Partial Eclipse: Madagascar, Antarctica, Indies, Australia
  • Annular Eclipse: south Indian Ocean

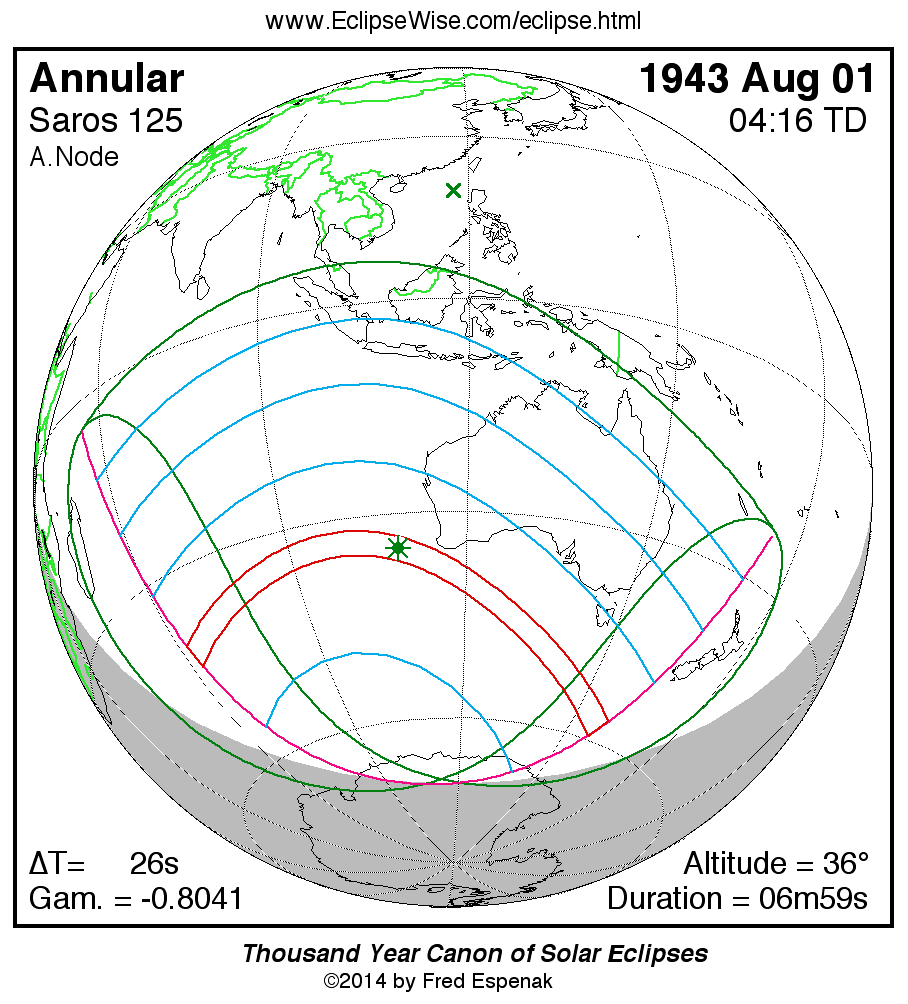

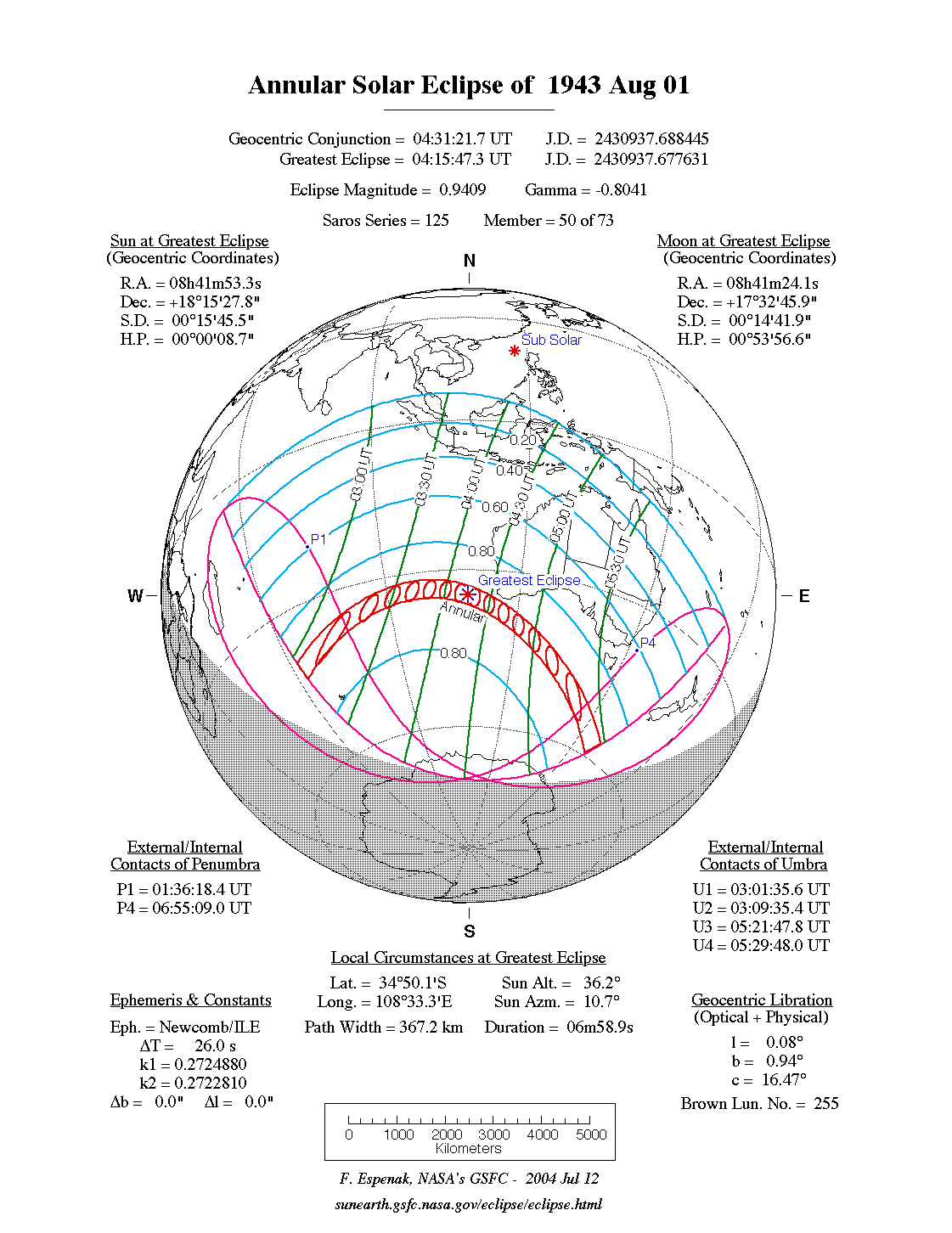

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1943 Aug 01 at 04:16:13 TD (04:15:47 UT1). This is 0.1 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of 255.

The eclipse belongs to Saros 125 and is number 50 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1943 Aug 01 is a relatively long annular eclipse with a duration at greatest eclipse of 06m59s. It has an eclipse magnitude of 0.9409.

The annular solar eclipse of 1943 Aug 01 is followed two weeks later by a partial lunar eclipse on 1943 Aug 15.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 26.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1943 Aug 01 .


Eclipse Data: Annular Solar Eclipse of 1943 Aug 01

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94090
Eclipse Obscuration 0.88530
Gamma-0.80410
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1943 Aug 01 at 04:16:13.0 TD (04:15:46.8 UT1) 2430937.677625
Ecliptic Conjunction 1943 Aug 01 at 04:06:41.0 TD (04:06:14.8 UT1) 2430937.671005
Equatorial Conjunction 1943 Aug 01 at 04:31:47.4 TD (04:31:21.2 UT1) 2430937.688440
Geocentric Coordinates of Sun and Moon
1943 Aug 01 at 04:16:13.0 TD (04:15:46.8 UT1)
Coordinate Sun Moon
Right Ascension08h41m53.3s08h41m24.1s
Declination+18°15'27.8"+17°32'46.0"
Semi-Diameter 15'45.5" 14'41.9"
Eq. Hor. Parallax 08.7" 0°53'56.6"
Geocentric Libration of Moon
Angle Value
l 0.1°
b 1.0°
c 16.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 26.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 125 (50/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1943 Aug 01

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:36:43.501:36:17.420°37.8'S074°38.8'E
Last External ContactP406:55:35.406:55:09.337°58.5'S152°52.4'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:31:52.802:31:26.604°43.7'S055°16.5'E
South Extreme Path Limit 1S106:00:30.706:00:04.622°21.5'S173°45.2'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1943 Aug 01

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU103:02:00.903:01:34.740°25.1'S062°30.4'E
First Internal ContactU203:10:00.503:09:34.443°14.6'S062°15.9'E
Last Internal ContactU305:22:14.205:21:48.059°11.6'S157°32.7'E
Last External ContactU405:30:14.305:29:48.156°41.0'S159°00.6'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N103:03:06.503:02:40.340°04.3'S062°01.7'E
South Extreme Path Limit 1S103:09:00.403:08:34.243°33.4'S062°43.4'E
North Extreme Path Limit 2N205:29:08.705:28:42.556°22.3'S159°40.3'E
South Extreme Path Limit 2S205:23:14.105:22:47.959°28.0'S156°52.8'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1943 Aug 01

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C103:05:56.203:05:30.041°46.8'S062°21.1'E
Extreme Central Line Limit 2C205:26:18.805:25:52.657°54.1'S158°23.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse04:16:13.004:15:46.834°49.9'S108°27.0'E 36.2° 10.7° 367.1 km06m58.89s
Greatest Duration04:13:30.804:13:04.734°35.8'S107°40.5'E 36.2° 12.5° 368.8 km06m59.00s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1943 Aug 01

Polynomial Besselian Elements
1943 Aug 01 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.26423 -0.77163 18.2624 0.56613 0.01987 238.4323
1 0.49871 -0.08130 -0.0101 0.00001 0.00001 15.0018
2 -0.00001 -0.00008 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046075
Tan ƒ2 0.0045846

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1943 Aug 01

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1943 Aug 01 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 26.2 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
