Solar Eclipse Prime Page

Annular Solar Eclipse of 1947 Nov 12

Fred Espenak

Introduction


The Annular Solar Eclipse of 1947 Nov 12 is visible from the following geographic regions:

  • Partial Eclipse: N & South America
  • Annular Eclipse: central Pacific, Peru, Ecuador, Colombia Brazil

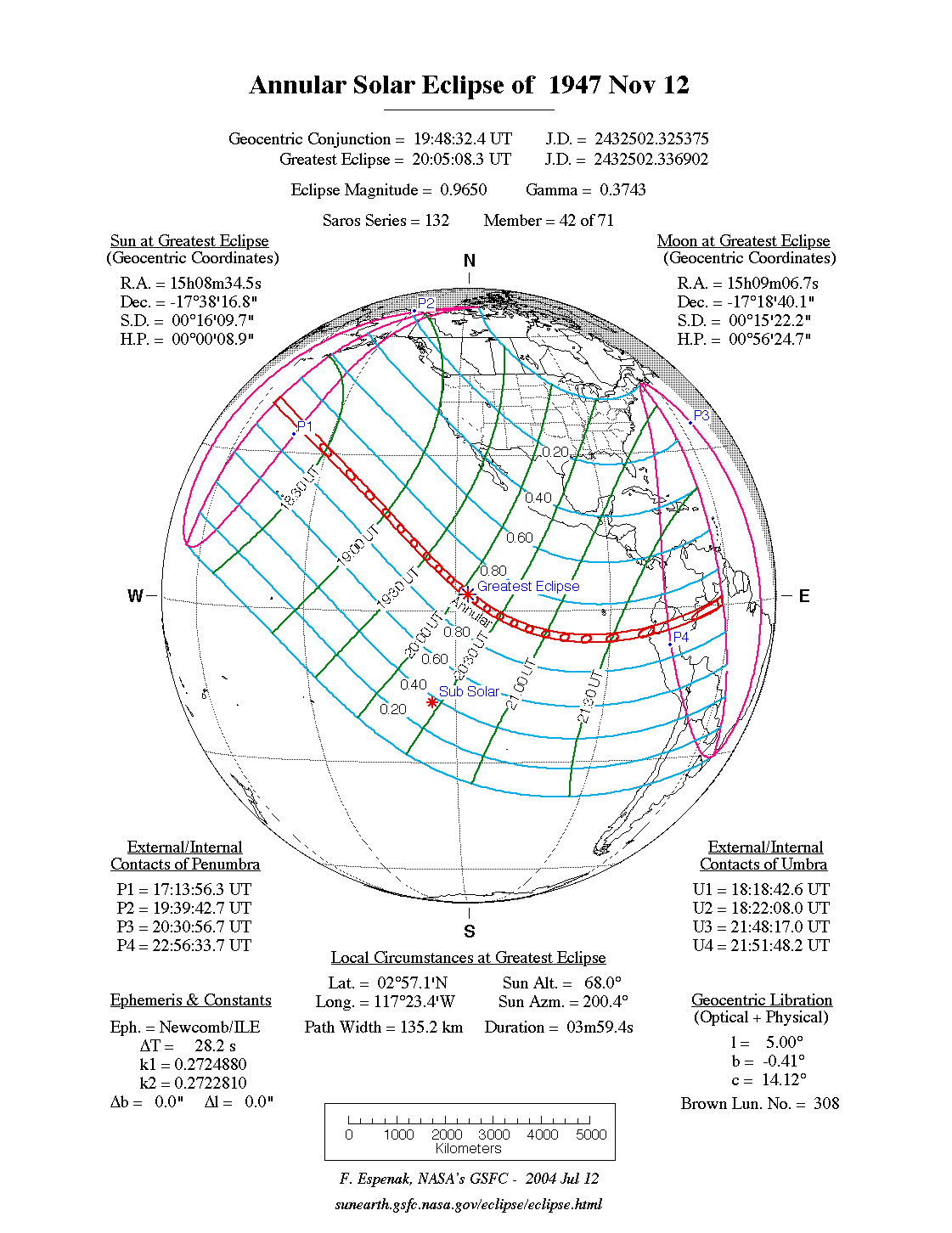

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1947 Nov 12 at 20:05:37 TD (20:05:08 UT1). This is 6.1 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 308.

The eclipse belongs to Saros 132 and is number 42 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 1947 Nov 12 is followed two weeks later by a penumbral lunar eclipse on 1947 Nov 28.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 28.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1947 Nov 12 .


Eclipse Data: Annular Solar Eclipse of 1947 Nov 12

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96505
Eclipse Obscuration 0.93132
Gamma 0.37431
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1947 Nov 12 at 20:05:36.6 TD (20:05:08.4 UT1) 2432502.336903
Ecliptic Conjunction 1947 Nov 12 at 20:01:22.9 TD (20:00:54.8 UT1) 2432502.333967
Equatorial Conjunction 1947 Nov 12 at 19:49:00.8 TD (19:48:32.6 UT1) 2432502.325378
Geocentric Coordinates of Sun and Moon
1947 Nov 12 at 20:05:36.6 TD (20:05:08.4 UT1)
Coordinate Sun Moon
Right Ascension15h08m34.6s15h09m06.8s
Declination-17°38'16.9"-17°18'40.3"
Semi-Diameter 16'09.7" 15'22.3"
Eq. Hor. Parallax 08.9" 0°56'24.7"
Geocentric Libration of Moon
Angle Value
l 5.0°
b -0.4°
c 14.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 28.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 132 (42/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1947 Nov 12

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP117:14:24.417:13:56.333°35.7'N160°16.6'W
First Internal ContactP219:40:11.019:39:42.870°01.8'N147°52.1'W
Last Internal ContactP320:31:25.120:30:56.935°22.6'N054°45.1'W
Last External ContactP422:57:02.222:56:34.007°10.9'S075°48.2'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:22:14.319:21:46.172°20.9'N111°30.5'W
South Extreme Path Limit 1S118:23:14.518:22:46.310°33.8'N173°44.4'E
North Extreme Path Limit 2N220:49:35.620:49:07.445°08.4'N064°53.2'W
South Extreme Path Limit 2S221:47:53.221:47:25.030°17.7'S050°05.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1947 Nov 12

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU118:19:10.818:18:42.740°48.3'N172°43.6'W
First Internal ContactU218:22:36.318:22:08.141°24.1'N173°14.1'W
Last Internal ContactU321:48:45.321:48:17.200°54.0'N061°19.2'W
Last External ContactU421:52:16.521:51:48.400°15.6'N061°59.7'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:21:18.718:20:50.541°53.2'N172°37.4'W
South Extreme Path Limit 1S118:20:29.618:20:01.440°18.8'N173°20.1'W
North Extreme Path Limit 2N221:50:05.521:49:37.401°25.3'N061°49.3'W
South Extreme Path Limit 2S221:50:55.221:50:27.000°16.1'S061°29.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1947 Nov 12

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C118:20:53.418:20:25.241°05.9'N172°59.0'W
Extreme Central Line Limit 2C221:50:31.021:50:02.900°34.5'N061°39.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse20:05:36.620:05:08.402°57.0'N117°30.3'W 68.0° 200.4° 135.2 km03m59.39s
Greatest Duration20:36:27.920:35:59.801°48.5'S109°57.8'W 62.4° 233.5° 142.6 km04m02.92s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1947 Nov 12

Polynomial Besselian Elements
1947 Nov 12 at 20:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.09041 0.36659 -17.6379 0.56047 0.01424 123.9627
1 0.49377 -0.19353 -0.0109 0.00012 0.00012 15.0000
2 0.00002 0.00010 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047253
Tan ƒ2 0.0047018

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1947 Nov 12

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1947 Nov 12 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 28.2 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
