Solar Eclipse Prime Page

Partial Solar Eclipse of 2054 Mar 09

Fred Espenak

Introduction


The Partial Solar Eclipse of 2054 Mar 09 is visible from the following geographic regions:

  • Partial Eclipse: Antarctica, South Africa, Madagascar, Chile

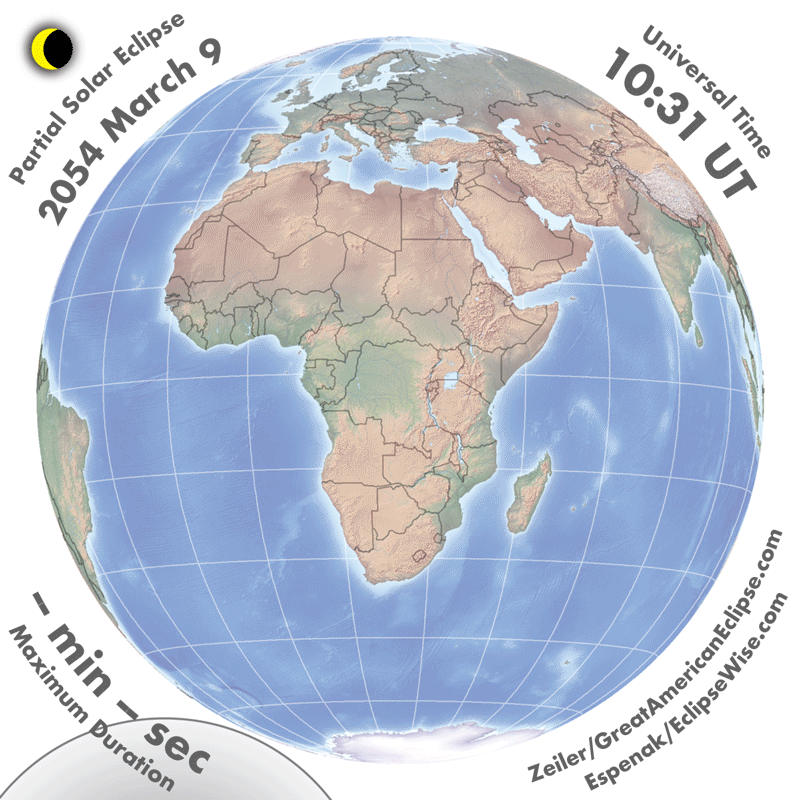

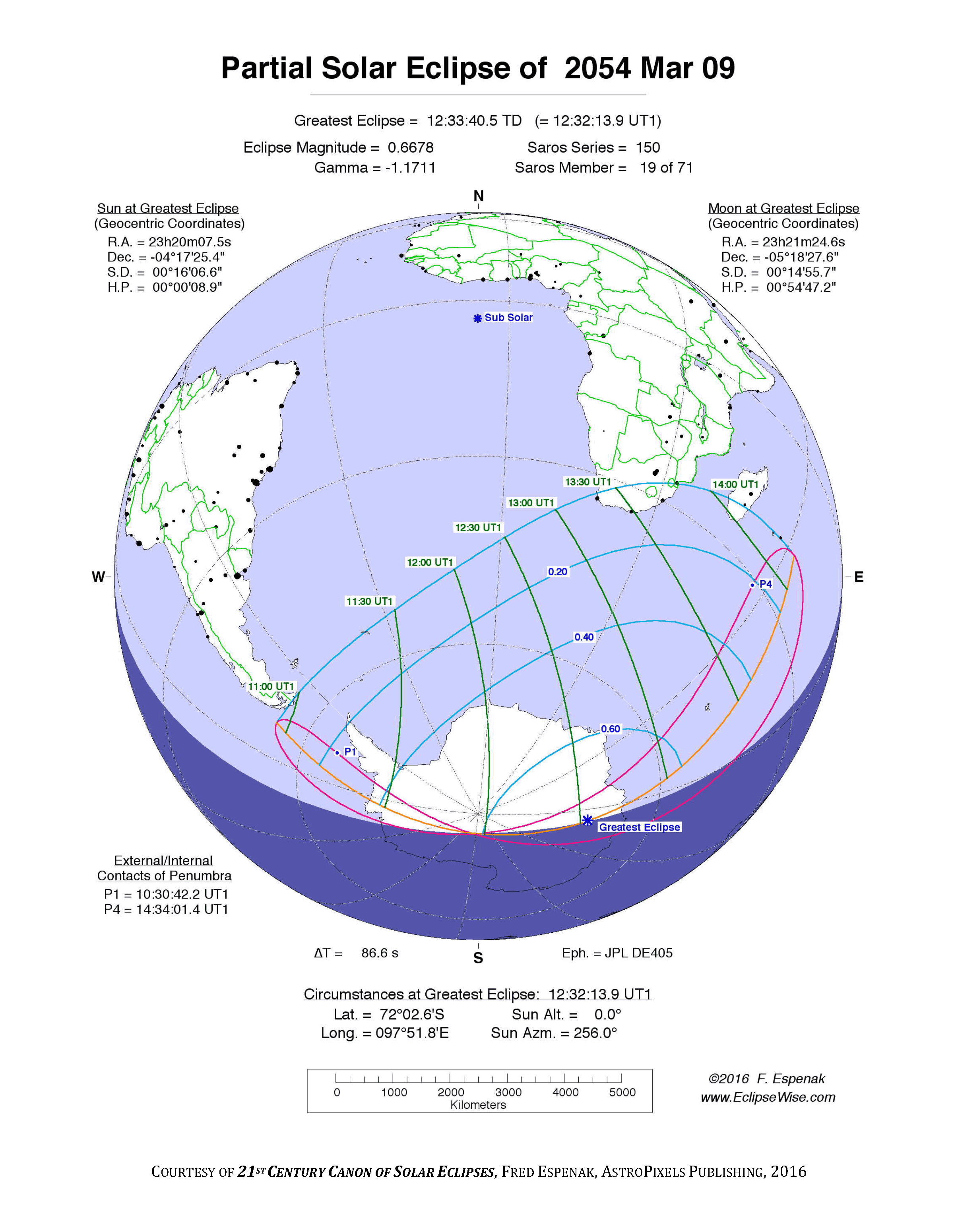

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2054 Mar 09 at 12:33:40 TD (12:32:13 UT1). This is 3.8 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1623.

The eclipse belongs to Saros 150 and is number 19 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.6678, while Gamma has a value of -1.1711.

The partial solar eclipse of 2054 Mar 09 is preceded two weeks earlier by a total lunar eclipse on 2054 Feb 22.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 87.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2054 Mar 09 .


Eclipse Data: Partial Solar Eclipse of 2054 Mar 09

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.66783
Eclipse Obscuration 0.56962
Gamma-1.17111
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2054 Mar 09 at 12:33:40.5 TD (12:32:12.6 UT1) 2471336.022369
Ecliptic Conjunction 2054 Mar 09 at 12:47:06.8 TD (12:45:38.9 UT1) 2471336.031700
Equatorial Conjunction 2054 Mar 09 at 11:50:36.8 TD (11:49:08.9 UT1) 2471335.992465
Geocentric Coordinates of Sun and Moon
2054 Mar 09 at 12:33:40.5 TD (12:32:12.6 UT1)
Coordinate Sun Moon
Right Ascension23h20m07.5s23h21m24.6s
Declination-04°17'25.4"-05°18'27.6"
Semi-Diameter 16'06.6" 14'55.7"
Eq. Hor. Parallax 08.9" 0°54'47.2"
Geocentric Libration of Moon
Angle Value
l -3.7°
b 1.4°
c -24.6°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 87.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 150 (19/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2054 Mar 09

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP110:32:08.810:30:41.065°38.7'S074°40.0'W
Last External ContactP414:35:28.014:34:00.230°58.0'S056°39.1'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N110:58:35.910:57:08.154°35.4'S077°46.0'W
South Extreme Path Limit 1S114:09:00.514:07:32.619°44.1'S062°14.6'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2054 Mar 09

Polynomial Besselian Elements
2054 Mar 09 at 13:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.56600 -1.04966 -4.2806 0.56801 0.02174 12.4007
1 0.48942 0.15395 0.0159 -0.00009 -0.00009 15.0038
2 -0.00002 0.00007 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047104
Tan ƒ2 0.0046870

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 13.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 2054 Mar 09

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 2054 Mar 09 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 87.9 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
