Solar Eclipse Prime Page

Annular Solar Eclipse of 2064 Feb 17

Fred Espenak

Introduction


The Annular Solar Eclipse of 2064 Feb 17 is visible from the following geographic regions:

  • Partial Eclipse: Africa, Asia
  • Annular Eclipse: Zaire, Zambia, Tanzania, India, Nepal, Bangladesh, Bhutan, China

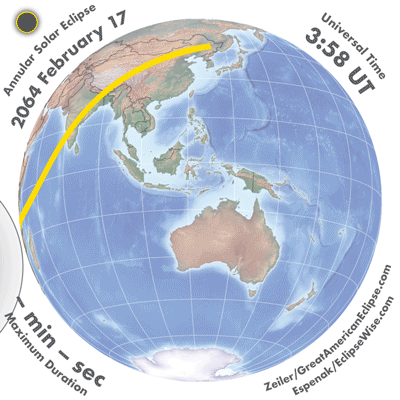

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2064 Feb 17 at 07:00:23 TD (06:58:48 UT1). This is 2.5 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1746.

The eclipse belongs to Saros 141 and is number 26 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2064 Feb 17 is a relatively long annular eclipse with a duration at greatest eclipse of 08m56s. It has an eclipse magnitude of 0.9262.

The annular solar eclipse of 2064 Feb 17 is preceded two weeks earlier by a partial lunar eclipse on 2064 Feb 02.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 94.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2064 Feb 17 .


Eclipse Data: Annular Solar Eclipse of 2064 Feb 17

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.92624
Eclipse Obscuration 0.85792
Gamma 0.35965
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2064 Feb 17 at 07:00:23.3 TD (06:58:48.4 UT1) 2474967.790838
Ecliptic Conjunction 2064 Feb 17 at 07:04:41.9 TD (07:03:07.0 UT1) 2474967.793831
Equatorial Conjunction 2064 Feb 17 at 07:21:11.6 TD (07:19:36.6 UT1) 2474967.805285
Geocentric Coordinates of Sun and Moon
2064 Feb 17 at 07:00:23.3 TD (06:58:48.4 UT1)
Coordinate Sun Moon
Right Ascension22h02m13.8s22h01m38.9s
Declination-12°01'37.5"-11°44'08.3"
Semi-Diameter 16'11.3" 14'47.1"
Eq. Hor. Parallax 08.9" 0°54'15.6"
Geocentric Libration of Moon
Angle Value
l 2.0°
b -0.4°
c -18.7°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 94.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 141 (26/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2064 Feb 17

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP103:59:12.403:57:37.412°35.0'S031°20.8'E
First Internal ContactP206:33:12.106:31:37.230°47.9'N002°52.7'E
Last Internal ContactP307:27:03.507:25:28.576°35.5'N098°49.1'E
Last External ContactP410:01:29.109:59:54.138°27.0'N113°47.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N106:14:45.406:13:10.441°52.1'N011°12.6'E
South Extreme Path Limit 1S105:11:37.705:10:02.837°20.1'S006°36.0'E
North Extreme Path Limit 2N207:45:14.407:43:39.476°56.0'N044°04.8'E
South Extreme Path Limit 2S208:49:20.108:47:45.213°42.1'N138°34.2'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2064 Feb 17

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU105:06:37.905:05:03.005°25.1'S016°03.8'E
First Internal ContactU205:13:14.105:11:39.104°17.2'S014°39.3'E
Last Internal ContactU308:47:18.308:45:43.346°34.7'N129°04.0'E
Last External ContactU408:53:57.908:52:22.945°28.1'N127°54.2'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N105:10:49.705:09:14.803°17.8'S015°28.2'E
South Extreme Path Limit 1S105:09:06.705:07:31.806°25.4'S015°13.5'E
North Extreme Path Limit 2N208:49:42.708:48:07.847°32.7'N128°00.6'E
South Extreme Path Limit 2S208:51:28.608:49:53.644°29.0'N128°57.2'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2064 Feb 17

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C105:09:55.605:08:20.604°52.1'S015°21.5'E
Extreme Central Line Limit 2C208:50:38.508:49:03.546°00.5'N128°29.6'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse07:00:23.306:58:48.407°02.0'N069°13.9'E 68.9° 154.4° 294.6 km08m56.36s
Greatest Duration06:44:39.006:43:04.103°50.2'N066°34.7'E 67.4° 134.9° 300.9 km08m58.69s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2064 Feb 17

Polynomial Besselian Elements
2064 Feb 17 at 07:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.16083 0.32170 -12.0280 0.57243 0.02615 281.5188
1 0.45534 0.22246 0.0140 0.00005 0.00005 15.0019
2 -0.00003 0.00005 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047338
Tan ƒ2 0.0047102

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 7.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2064 Feb 17

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2064 Feb 17 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 94.9 seconds for this eclipse.
