Total Solar Eclipse of 2070 Apr 11

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Total Solar Eclipse of 2070 Apr 11 is visible from the following geographic regions:

  • Partial Eclipse: Asia, Indies, Alaska, Canada
  • Total Eclipse: Sri Lanka, Myanmar, Thailand, Laos, Vietnam, Philippines

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2070 Apr 11 at 02:36:09 TD (02:34:32 UT1). This is 1.6 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1822.

The eclipse belongs to Saros 130 and is number 55 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 2070 Apr 11 is a relatively long total eclipse with a duration at greatest eclipse of 04m04s. It has an eclipse magnitude of 1.0472.

The total solar eclipse of 2070 Apr 11 is followed two weeks later by a penumbral lunar eclipse on 2070 Apr 25.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 97.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Total Solar Eclipse of 2070 Apr 11 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

The Moon's umbral shadow appears as a small black disk and tracks along the path of totality (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while a total eclipse is visible inside the umbra.

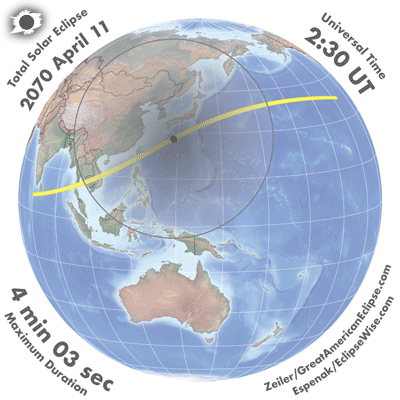

The map to the right shows a single frame from the medium size animation for the Total Solar Eclipse of 2070 Apr 11 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of totality. To the lower right is the credit for the animation.

Animations for the Total Solar Eclipse of 2070 Apr 11 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Total Solar Eclipse of 2070 Apr 11

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.04715
Eclipse Obscuration 1.09653
Gamma 0.36524
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2070 Apr 11 at 02:36:09.4 TD (02:34:31.7 UT1) 2477212.607311
Ecliptic Conjunction 2070 Apr 11 at 02:32:21.8 TD (02:30:44.1 UT1) 2477212.604677
Equatorial Conjunction 2070 Apr 11 at 02:47:19.1 TD (02:45:41.4 UT1) 2477212.615063
Geocentric Coordinates of Sun and Moon
2070 Apr 11 at 02:36:09.4 TD (02:34:31.7 UT1)
Coordinate Sun Moon
Right Ascension01h19m45.0s01h19m20.0s
Declination+08°24'18.3"+08°45'25.6"
Semi-Diameter 15'57.8" 16'27.4"
Eq. Hor. Parallax 08.8" 1°00'23.9"
Geocentric Libration of Moon
Angle Value
l -3.3°
b -0.5°
c -23.5°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 97.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 130 (55/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2070 Apr 11

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP123:59:46.023:58:08.302°33.3'S091°07.1'E
First Internal ContactP202:06:46.702:05:09.035°53.7'N052°50.8'E
Last Internal ContactP303:05:15.203:03:37.567°33.7'N114°39.6'W
Last External ContactP405:12:23.705:10:45.929°48.8'N162°33.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:53:08.201:51:30.548°01.2'N052°57.2'E
South Extreme Path Limit 1S100:49:16.800:47:39.126°02.3'S082°29.1'E
North Extreme Path Limit 2N203:18:48.403:17:10.777°55.0'N095°19.5'W
South Extreme Path Limit 2S204:23:06.804:21:29.106°22.1'N154°09.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2070 Apr 11

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU100:57:51.300:56:13.604°56.0'N075°29.2'E
First Internal ContactU200:59:37.600:57:59.905°17.2'N074°59.5'E
Last Internal ContactU304:12:30.904:10:53.237°36.3'N145°54.5'W
Last External ContactU404:14:20.904:12:43.237°14.6'N146°27.2'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N100:59:07.100:57:29.405°35.4'N075°04.4'E
South Extreme Path Limit 1S100:58:22.300:56:44.604°37.6'N075°24.2'E
North Extreme Path Limit 2N204:13:02.204:11:24.537°55.0'N145°58.0'W
South Extreme Path Limit 2S204:13:48.904:12:11.236°55.8'N146°23.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2070 Apr 11

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C100:58:44.400:57:06.705°06.5'N075°14.4'E
Extreme Central Line Limit 2C204:13:25.904:11:48.237°25.3'N146°10.9'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse02:36:09.402:34:31.729°03.2'N134°54.7'E 68.4° 161.7° 168.2 km04m04.24s
Greatest Duration02:39:03.002:37:25.229°33.4'N135°54.7'E 68.3° 166.5° 167.9 km04m04.34s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2070 Apr 11

Polynomial Besselian Elements
2070 Apr 11 at 03:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.11634 0.41447 8.4102 0.53811 -0.00801 224.7371
1 0.55045 0.16071 0.0149 -0.00009 -0.00009 15.0040
2 0.00002 -0.00007 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046667
Tan ƒ2 0.0046434

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 3.000

Explanation of Polynomial Besselian Elements
