Solar Eclipse Prime Page

Total Solar Eclipse of 2071 Sep 23

Fred Espenak

Introduction


The Total Solar Eclipse of 2071 Sep 23 is visible from the following geographic regions:

  • Partial Eclipse: Americas, Africa
  • Total Eclipse: Mexico, Colombia, Venezuela, Guyana, Suriname, French Guiana, Brazil

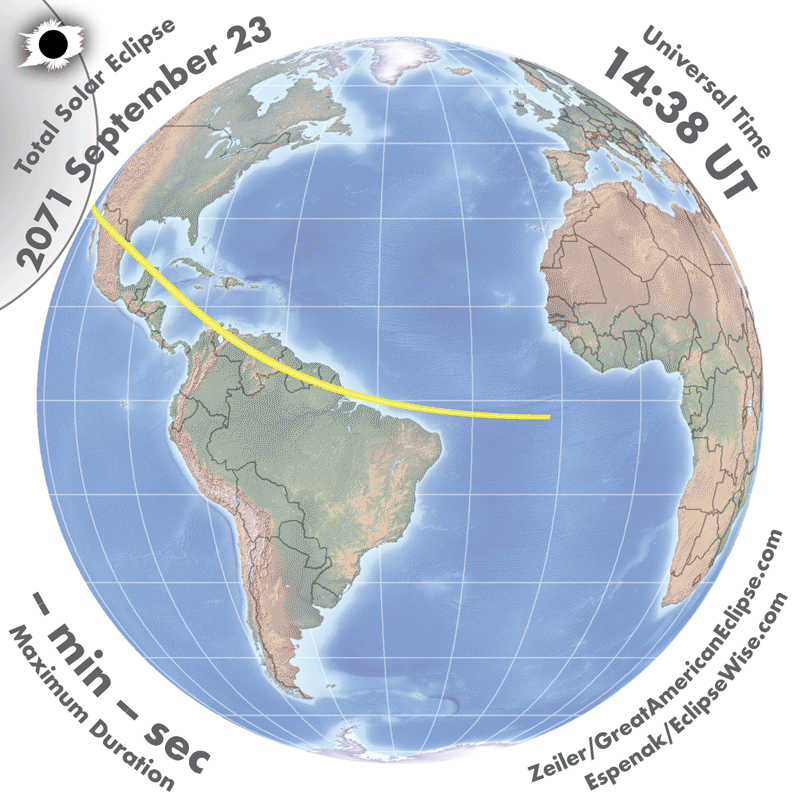

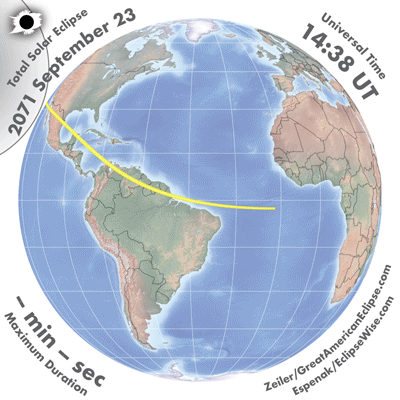

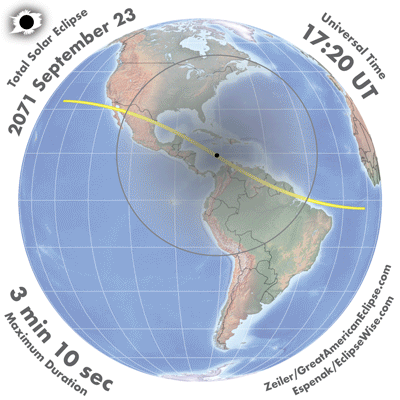

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2071 Sep 23 at 17:20:28 TD (17:18:47 UT1). This is 2.6 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1840.

The eclipse belongs to Saros 145 and is number 25 of 77 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2071 Sep 23 is preceded two weeks earlier by a penumbral lunar eclipse on 2071 Sep 09.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 100.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2071 Sep 23 .


Eclipse Data: Total Solar Eclipse of 2071 Sep 23

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.03329
Eclipse Obscuration 1.06769
Gamma 0.26200
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2071 Sep 23 at 17:20:28.0 TD (17:18:47.2 UT1) 2477743.221379
Ecliptic Conjunction 2071 Sep 23 at 17:23:14.4 TD (17:21:33.6 UT1) 2477743.223305
Equatorial Conjunction 2071 Sep 23 at 17:11:32.7 TD (17:09:51.8 UT1) 2477743.215183
Geocentric Coordinates of Sun and Moon
2071 Sep 23 at 17:20:28.0 TD (17:18:47.2 UT1)
Coordinate Sun Moon
Right Ascension12h02m56.7s12h03m15.7s
Declination-00°19'08.2"-00°04'20.0"
Semi-Diameter 15'56.2" 16'12.3"
Eq. Hor. Parallax 08.8" 0°59'28.3"
Geocentric Libration of Moon
Angle Value
l 4.3°
b -0.3°
c 24.9°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 100.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 145 (25/77)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2071 Sep 23

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP114:38:55.114:37:14.327°41.6'N131°05.0'W
First Internal ContactP216:40:44.416:39:03.652°59.3'N161°17.1'W
Last Internal ContactP318:00:25.017:58:44.117°16.1'N001°43.3'W
Last External ContactP420:02:10.420:00:29.508°01.2'S032°01.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N116:17:35.216:15:54.471°34.7'N154°58.2'W
South Extreme Path Limit 1S115:38:19.915:36:39.101°31.2'N145°59.6'W
North Extreme Path Limit 2N218:23:44.818:22:03.936°01.7'N007°42.2'W
South Extreme Path Limit 2S219:02:27.619:00:46.834°12.2'S016°52.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2071 Sep 23

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU115:37:23.615:35:42.833°03.3'N145°39.7'W
First Internal ContactU215:38:23.815:36:42.933°11.8'N145°54.7'W
Last Internal ContactU319:02:41.819:01:01.002°30.7'S017°11.7'W
Last External ContactU419:03:37.119:01:56.302°38.6'S017°25.5'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N115:38:01.815:36:20.933°23.8'N145°49.1'W
South Extreme Path Limit 1S115:37:45.915:36:05.132°51.3'N145°45.4'W
North Extreme Path Limit 2N219:03:02.219:01:21.302°19.7'S017°11.9'W
South Extreme Path Limit 2S219:03:16.519:01:35.702°49.6'S017°18.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2071 Sep 23

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C115:37:53.715:36:12.833°07.6'N145°47.1'W
Extreme Central Line Limit 2C219:03:09.519:01:28.602°34.7'S017°18.6'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse17:20:28.017:18:47.214°13.5'N077°19.5'W 74.7° 198.2° 116.1 km03m10.83s
Greatest Duration17:18:47.317:17:06.414°30.8'N077°22.2'W 74.7° 194.7° 116.0 km03m10.86s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2071 Sep 23

Polynomial Besselian Elements
2071 Sep 23 at 17:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.10335 0.30817 -0.3142 0.54177 -0.00436 76.9319
1 0.53709 -0.17189 -0.0158 0.00012 0.00011 15.0050
2 -0.00001 -0.00001 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046586
Tan ƒ2 0.0046354

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 17.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2071 Sep 23

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2071 Sep 23 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 100.9 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
