Annular Solar Eclipse of 2078 Nov 04

Fred Espenak

Introduction


The Annular Solar Eclipse of 2078 Nov 04 is visible from the following geographic regions:

  • Partial Eclipse: Americas, Antarctica
  • Annular Eclipse: Chile, Argentina

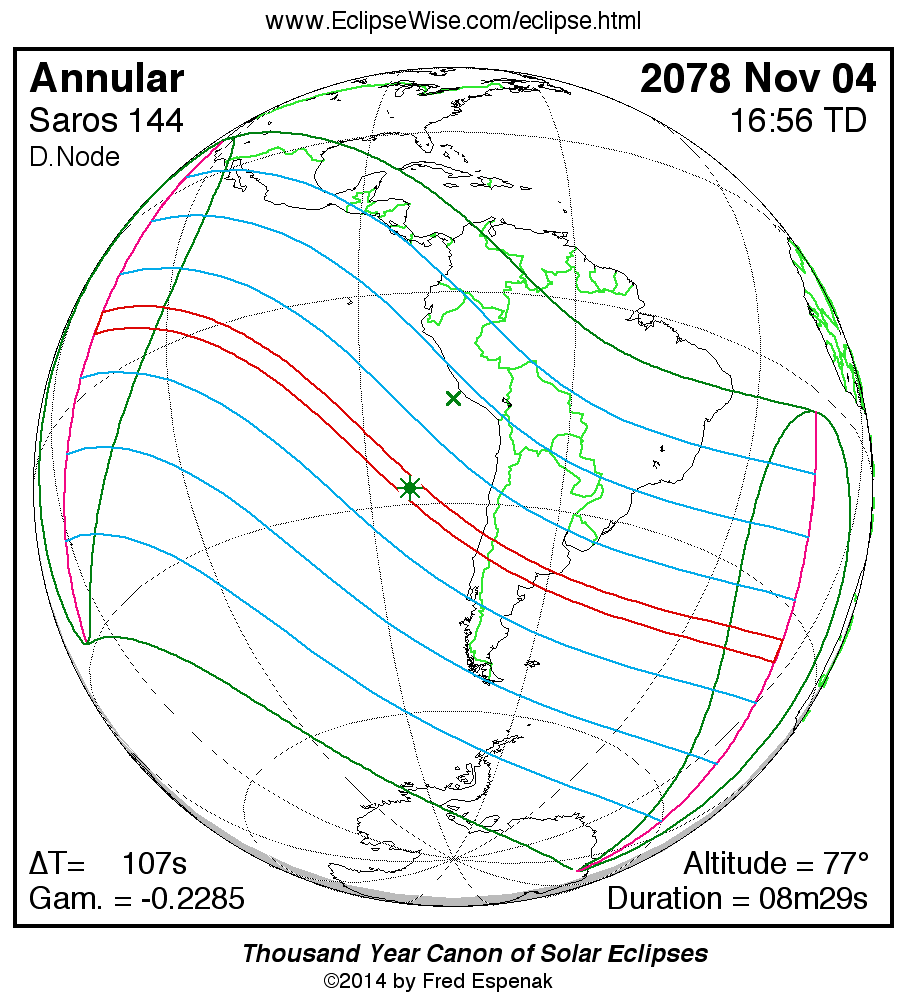

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2078 Nov 04 at 16:55:44 TD (16:53:58 UT1). This is 0.9 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1928.

The eclipse belongs to Saros 144 and is number 20 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 2078 Nov 04 is a relatively long annular eclipse with a duration at greatest eclipse of 08m29s. It has an eclipse magnitude of 0.9255.

The annular solar eclipse of 2078 Nov 04 is preceded two weeks earlier by a penumbral lunar eclipse on 2078 Oct 21, and it is followed two weeks later by a penumbral lunar eclipse on 2078 Nov 19.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 106.9 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2078 Nov 04 .


Eclipse Data: Annular Solar Eclipse of 2078 Nov 04

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.92551
Eclipse Obscuration 0.85657
Gamma-0.22852
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2078 Nov 04 at 16:55:44.4 TD (16:53:57.5 UT1) 2480342.204138
Ecliptic Conjunction 2078 Nov 04 at 16:58:29.7 TD (16:56:42.8 UT1) 2480342.206051
Equatorial Conjunction 2078 Nov 04 at 17:07:32.6 TD (17:05:45.7 UT1) 2480342.212335
Geocentric Coordinates of Sun and Moon
2078 Nov 04 at 16:55:44.4 TD (16:53:57.5 UT1)
Coordinate Sun Moon
Right Ascension14h40m53.9s14h40m33.5s
Declination-15°38'07.6"-15°49'24.5"
Semi-Diameter 16'07.5" 14'42.4"
Eq. Hor. Parallax 08.9" 0°53'58.5"
Geocentric Libration of Moon
Angle Value
l 1.0°
b 0.3°
c 16.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 106.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 144 (20/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2078 Nov 04

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP113:50:30.413:48:43.614°39.2'N117°06.9'W
First Internal ContactP216:12:46.916:11:00.108°36.2'S159°17.8'W
Last Internal ContactP317:38:24.217:36:37.353°05.6'S023°36.9'E
Last External ContactP420:00:55.019:59:08.230°37.2'S024°21.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:54:27.314:52:40.541°30.8'N122°58.2'W
South Extreme Path Limit 1S115:49:26.515:47:39.728°38.6'S159°49.2'W
North Extreme Path Limit 2N218:57:18.618:55:31.803°31.3'S017°01.0'W
South Extreme Path Limit 2S218:01:32.417:59:45.569°40.2'S045°03.3'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2078 Nov 04

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU114:56:36.814:54:50.010°16.9'N134°55.4'W
First Internal ContactU215:03:05.215:01:18.309°35.4'N136°44.4'W
Last Internal ContactU318:48:15.518:46:28.735°36.1'S004°10.0'W
Last External ContactU418:54:45.518:52:58.734°55.3'S006°04.9'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:58:44.314:56:57.511°26.0'N135°07.2'W
South Extreme Path Limit 1S115:01:01.514:59:14.608°26.7'N136°33.2'W
North Extreme Path Limit 2N218:52:38.318:50:51.433°47.3'S006°01.6'W
South Extreme Path Limit 2S218:50:18.818:48:32.036°43.4'S004°11.2'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2078 Nov 04

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C114:59:50.814:58:04.009°56.7'N135°49.7'W
Extreme Central Line Limit 2C218:51:30.718:49:43.835°15.1'S005°07.7'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse16:55:44.416:53:57.527°49.8'S083°57.4'W 76.6° 25.4° 287.5 km08m29.08s
Greatest Duration17:13:29.617:11:42.731°24.5'S078°58.4'W 74.0° 349.2° 286.0 km08m31.94s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2078 Nov 04

Polynomial Besselian Elements
2078 Nov 04 at 17:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.05813 -0.22388 -15.6358 0.57284 0.02655 79.1227
1 0.46239 -0.20061 -0.0122 0.00002 0.00002 15.0009
2 0.00004 0.00010 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047151
Tan ƒ2 0.0046916

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 17.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2078 Nov 04

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2078 Nov 04 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 106.9 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
