Annular Solar Eclipse of 2100 Mar 10

Fred Espenak

Introduction


The Annular Solar Eclipse of 2100 Mar 10 is visible from the following geographic regions:

  • Partial Eclipse: Australia, North America
  • Annular Eclipse: Central Pacific, U.S.

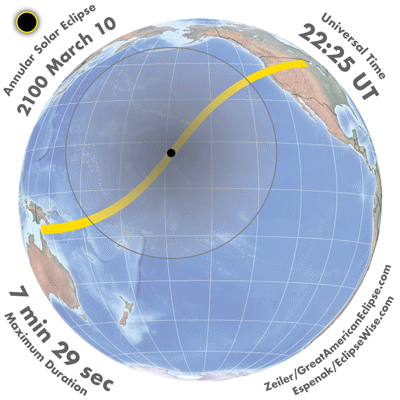

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2100 Mar 10 at 22:28:11 TD (22:26:04 UT1). This is 2.9 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2192.

The eclipse belongs to Saros 141 and is number 28 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2100 Mar 10 is a relatively long annular eclipse with a duration at greatest eclipse of 07m29s. It has an eclipse magnitude of 0.9338.

The annular solar eclipse of 2100 Mar 10 is preceded two weeks earlier by a penumbral lunar eclipse on 2100 Feb 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 127.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2100 Mar 10 .


Eclipse Data: Annular Solar Eclipse of 2100 Mar 10

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.93384
Eclipse Obscuration 0.87205
Gamma 0.30770
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2100 Mar 10 at 22:28:11.0 TD (22:26:03.8 UT1) 2488138.434767
Ecliptic Conjunction 2100 Mar 10 at 22:31:51.0 TD (22:29:43.8 UT1) 2488138.437313
Equatorial Conjunction 2100 Mar 10 at 22:48:12.9 TD (22:46:05.7 UT1) 2488138.448677
Geocentric Coordinates of Sun and Moon
2100 Mar 10 at 22:28:11.0 TD (22:26:03.8 UT1)
Coordinate Sun Moon
Right Ascension23h24m46.6s23h24m14.3s
Declination-03°47'43.4"-03°33'06.4"
Semi-Diameter 16'06.4" 14'49.6"
Eq. Hor. Parallax 08.9" 0°54'24.7"
Geocentric Libration of Moon
Angle Value
l 2.4°
b -0.4°
c -21.6°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 127.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 141 (28/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2100 Mar 10

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP119:26:43.119:24:35.917°39.9'S160°08.8'E
First Internal ContactP221:52:49.621:50:42.416°54.0'N125°59.6'E
Last Internal ContactP323:03:03.023:00:55.874°40.4'N086°42.0'W
Last External ContactP401:29:34.701:27:27.640°18.3'N112°33.1'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:30:38.621:28:31.432°38.9'N132°49.7'E
South Extreme Path Limit 1S120:36:41.920:34:34.844°10.9'S140°08.8'E
North Extreme Path Limit 2N223:24:57.723:22:50.586°10.0'N177°38.1'W
South Extreme Path Limit 2S200:19:55.700:17:48.613°45.7'N092°52.4'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2100 Mar 10

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU120:33:05.420:30:58.211°27.4'S143°59.9'E
First Internal ContactU220:38:57.220:36:50.010°34.5'S142°35.6'E
Last Internal ContactU300:17:11.100:15:03.947°22.4'N095°21.9'W
Last External ContactU400:23:06.700:20:59.546°29.3'N096°43.3'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:36:51.420:34:44.209°35.5'S143°11.1'E
South Extreme Path Limit 1S120:35:14.620:33:07.412°27.0'S143°23.4'E
North Extreme Path Limit 2N200:19:17.100:17:09.948°21.5'N096°02.1'W
South Extreme Path Limit 2S200:20:56.900:18:49.745°29.4'N096°02.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2100 Mar 10

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C120:36:01.020:33:53.811°01.6'S143°17.8'E
Extreme Central Line Limit 2C200:20:09.100:18:01.946°55.1'N096°02.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse22:28:11.022:26:03.811°57.3'N163°16.8'W 72.0° 150.6° 257.5 km07m29.19s
Greatest Duration22:21:55.722:19:48.610°27.3'N163°53.3'W 71.8° 140.8° 259.2 km07m29.38s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2100 Mar 10

Polynomial Besselian Elements
2100 Mar 10 at 22:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.35800 0.15382 -3.8035 0.57006 0.02378 147.4899
1 0.44551 0.24597 0.0158 0.00007 0.00007 15.0038
2 -0.00001 0.00001 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047099
Tan ƒ2 0.0046864

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 22.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2100 Mar 10

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2100 Mar 10 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 127.2 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
