Annular Solar Eclipse of 2107 Apr 23

Fred Espenak

Introduction

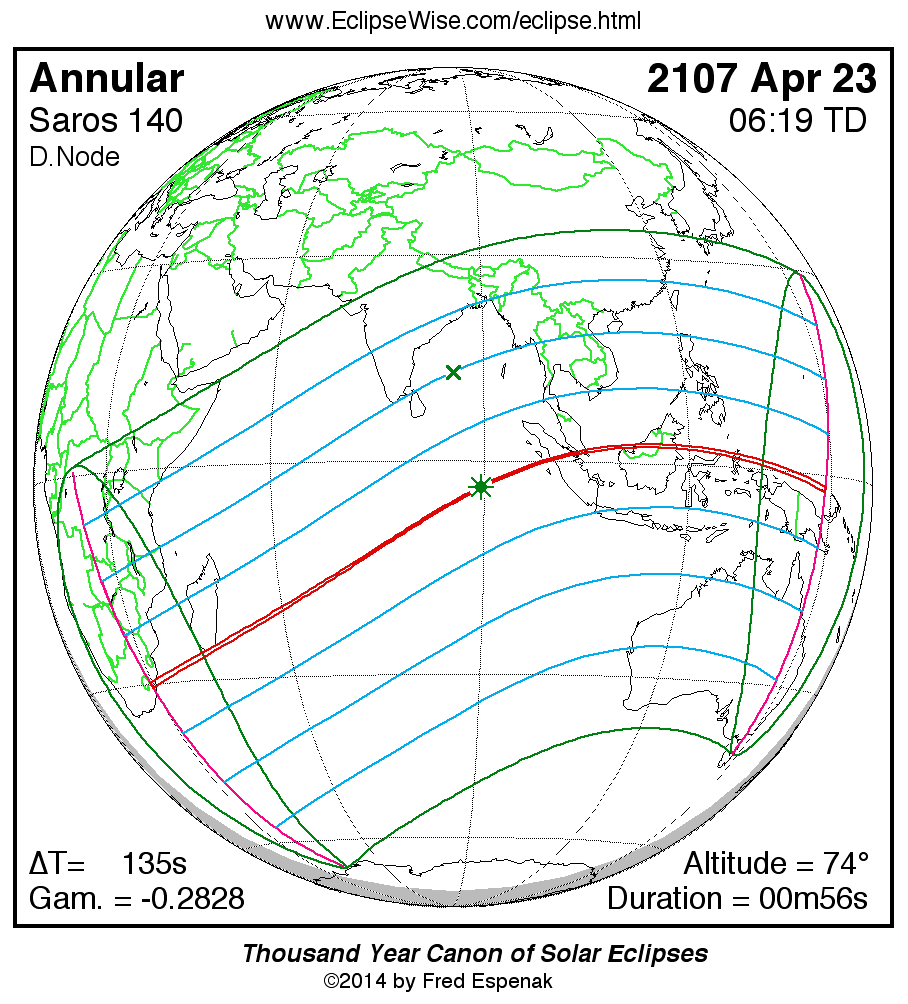

eclipse map


The Annular Solar Eclipse of 2107 Apr 23 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2107 Apr 23 at 06:18:41 TD (06:16:26 UT1). This is 6.8 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2280.

The eclipse belongs to Saros 140 and is number 34 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2107 Apr 23 is preceded two weeks earlier by a penumbral lunar eclipse on 2107 Apr 07, and it is followed two weeks later by a penumbral lunar eclipse on 2107 May 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 134.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2107 Apr 23 .


Eclipse Data: Annular Solar Eclipse of 2107 Apr 23

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.99180
Eclipse Obscuration 0.98366
Gamma-0.28285
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2107 Apr 23 at 06:18:41.0 TD (06:16:26.3 UT1) 2490737.761415
Ecliptic Conjunction 2107 Apr 23 at 06:21:49.3 TD (06:19:34.5 UT1) 2490737.763594
Equatorial Conjunction 2107 Apr 23 at 06:10:36.1 TD (06:08:21.4 UT1) 2490737.755803
Geocentric Coordinates of Sun and Moon
2107 Apr 23 at 06:18:41.0 TD (06:16:26.3 UT1)
Coordinate Sun Moon
Right Ascension02h01m21.2s02h01m37.5s
Declination+12°20'34.2"+12°04'58.7"
Semi-Diameter 15'55.0" 15'32.8"
Eq. Hor. Parallax 08.8" 0°57'03.5"
Geocentric Libration of Moon
Angle Value
l -5.2°
b 0.3°
c -21.6°
Prediction Parameters
Paramater Value
Ephemerides JPL DE406
ΔT 134.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 140 (34/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2107 Apr 23

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP103:28:33.703:26:18.924°25.5'S043°44.9'E
First Internal ContactP205:40:24.905:38:10.152°14.9'S021°29.8'E
Last Internal ContactP306:57:11.606:54:56.824°26.3'S160°11.0'E
Last External ContactP409:08:45.509:06:30.803°48.0'N133°49.9'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N104:37:09.804:34:55.001°07.0'N020°39.9'E
South Extreme Path Limit 1S105:14:02.105:11:47.367°45.5'S043°59.9'E
North Extreme Path Limit 2N208:00:03.607:57:48.829°16.7'N157°14.1'E
South Extreme Path Limit 2S207:23:43.607:21:28.941°17.4'S148°09.9'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2107 Apr 23

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU104:31:06.204:28:51.530°05.9'S029°41.8'E
First Internal ContactU204:32:42.304:30:27.530°19.5'S029°21.8'E
Last Internal ContactU308:04:47.908:02:33.202°08.0'S148°31.3'E
Last External ContactU408:06:17.808:04:03.101°55.1'S148°11.6'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N104:31:45.404:29:30.629°48.8'S029°27.0'E
South Extreme Path Limit 1S104:32:03.304:29:48.530°36.6'S029°36.6'E
North Extreme Path Limit 2N208:05:41.108:03:26.301°38.9'S148°24.4'E
South Extreme Path Limit 2S208:05:24.608:03:09.802°24.1'S148°18.6'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2107 Apr 23

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C104:31:54.304:29:39.530°12.7'S029°31.8'E
Extreme Central Line Limit 2C208:05:32.908:03:18.102°01.5'S148°21.5'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse06:18:41.006:16:26.303°36.8'S088°59.8'E 73.5° 345.9° 30.0 km00m55.80s
Greatest Duration04:31:54.304:29:39.530°12.7'S029°31.8'E 0.0° 75.7° 89.3 km01m34.31s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2107 Apr 23

Polynomial Besselian Elements
2107 Apr 23 at 06:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.09217 -0.31564 12.3393 0.55293 0.00674 270.3675
1 0.52159 0.13379 0.0136 -0.00012 -0.00012 15.0032
2 0.00004 -0.00005 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046535
Tan ƒ2 0.0046303

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 6.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2107 Apr 23

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2107 Apr 23 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 134.8 seconds for this eclipse.
