Annular Solar Eclipse of 2126 Apr 22

Fred Espenak

Introduction

eclipse map

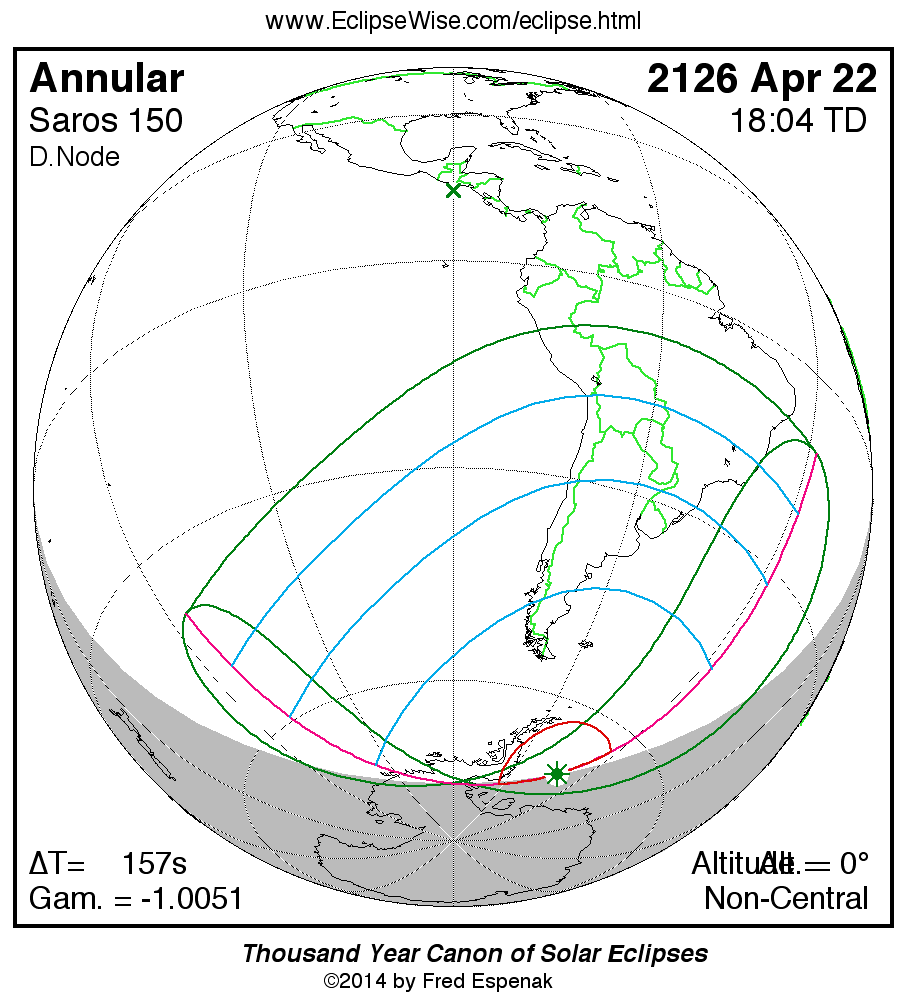

The Annular Solar Eclipse of 2126 Apr 22 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2126 Apr 22 at 18:04:22 TD (18:01:45 UT1). This is 2.9 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2515.

The eclipse belongs to Saros 150 and is number 23 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This annular eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a southern path limit. Instead , over half of the antumbral shadow falls off into space throughout the eclipse. Gamma has a value of -1.0051.

The annular solar eclipse of 2126 Apr 22 is preceded two weeks earlier by a total lunar eclipse on 2126 Apr 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 157.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2126 Apr 22 .


Eclipse Data: Annular Solar Eclipse of 2126 Apr 22

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.95138
Eclipse Obscuration -
Gamma-1.00511
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2126 Apr 22 at 18:04:22.4 TD (18:01:45.5 UT1) 2497677.251221
Ecliptic Conjunction 2126 Apr 22 at 18:16:04.8 TD (18:13:27.8 UT1) 2497677.259349
Equatorial Conjunction 2126 Apr 22 at 17:33:53.8 TD (17:31:16.8 UT1) 2497677.230056
Geocentric Coordinates of Sun and Moon
2126 Apr 22 at 18:04:22.4 TD (18:01:45.5 UT1)
Coordinate Sun Moon
Right Ascension02h00m57.4s02h01m52.9s
Declination+12°18'22.0"+11°25'33.7"
Semi-Diameter 15'55.1" 14'49.2"
Eq. Hor. Parallax 08.8" 0°54'23.3"
Geocentric Libration of Moon
Angle Value
l -2.9°
b 1.2°
c -21.6°
Prediction Parameters
Paramater Value
Ephemerides JPL DE406
ΔT 157.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 150 (23/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2126 Apr 22

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP115:43:08.715:40:31.752°47.1'S128°49.8'W
Last External ContactP420:25:46.920:23:09.925°00.7'S042°00.8'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N116:25:34.916:22:57.939°43.2'S145°40.1'W
South Extreme Path Limit 1S119:43:17.719:40:40.811°33.9'S028°05.7'W

Non-Central Annular Solar Eclipse

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2126 Apr 22

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU117:45:54.417:43:17.476°31.5'S061°43.5'W
Last External ContactU418:23:10.418:20:33.463°47.1'S031°48.6'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:46:08.617:43:31.676°33.7'S062°07.9'W
South Extreme Path Limit 1S118:22:56.318:20:19.363°42.3'S031°39.1'W

Non-Central Annular Solar Eclipse

Explanation of Umbral Shadow Contacts and Extremes Tables

Non-Central Annular Solar Eclipse

Explanation of Central Line Extremes Table

Non-Central Annular Solar Eclipse

Polynomial Besselian Elements: Annular Solar Eclipse of 2126 Apr 22

Polynomial Besselian Elements
2126 Apr 22 at 18:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.21463 -0.98263 12.3075 0.56669 0.02043 90.3575
1 0.49334 0.12701 0.0137 -0.00006 -0.00006 15.0032
2 0.00002 -0.00003 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046545
Tan ƒ2 0.0046314

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 18.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2126 Apr 22

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2126 Apr 22 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 157.0 seconds for this eclipse.
