Solar Eclipse Prime Page

Annular Solar Eclipse of 2183 Sep 16

Fred Espenak

Introduction

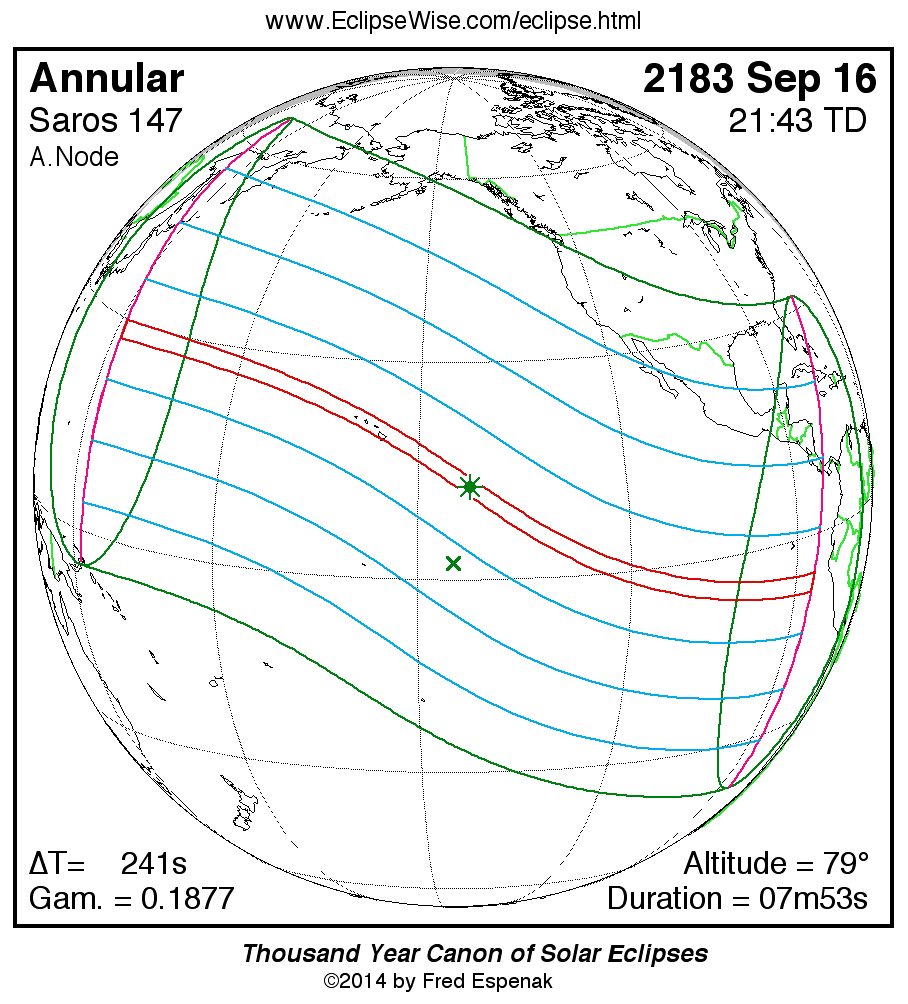

eclipse map


The Annular Solar Eclipse of 2183 Sep 16 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2183 Sep 16 at 21:42:37 TD (21:38:35 UT1). This is 0.4 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 3225.

The eclipse belongs to Saros 147 and is number 32 of 80 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2183 Sep 16 is a relatively long annular eclipse with a duration at greatest eclipse of 07m53s. It has an eclipse magnitude of 0.9384.

The annular solar eclipse of 2183 Sep 16 is preceded two weeks earlier by a penumbral lunar eclipse on 2183 Sep 02, and it is followed two weeks later by a penumbral lunar eclipse on 2183 Oct 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 241.4 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2183 Sep 16 .


Eclipse Data: Annular Solar Eclipse of 2183 Sep 16

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.93837
Eclipse Obscuration 0.88053
Gamma 0.18768
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2183 Sep 16 at 21:42:36.6 TD (21:38:35.1 UT1) 2518643.401796
Ecliptic Conjunction 2183 Sep 16 at 21:44:51.9 TD (21:40:50.5 UT1) 2518643.403362
Equatorial Conjunction 2183 Sep 16 at 21:35:33.8 TD (21:31:32.4 UT1) 2518643.396903
Geocentric Coordinates of Sun and Moon
2183 Sep 16 at 21:42:36.6 TD (21:38:35.1 UT1)
Coordinate Sun Moon
Right Ascension11h38m08.4s11h38m20.6s
Declination+02°21'41.4"+02°31'19.1"
Semi-Diameter 15'53.9" 14'42.0"
Eq. Hor. Parallax 08.7" 0°53'56.9"
Geocentric Libration of Moon
Angle Value
l 0.6°
b -0.2°
c 24.9°
Prediction Parameters
Paramater Value
Ephemerides JPL DE406
ΔT 241.4 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 147 (32/80)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2183 Sep 16

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP118:37:33.818:33:32.424°31.1'N169°14.5'E
First Internal ContactP220:56:40.220:52:38.843°34.3'N133°17.6'E
Last Internal ContactP322:28:44.822:24:43.408°19.1'N067°07.8'W
Last External ContactP400:47:43.400:43:41.910°43.6'S102°40.1'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:26:15.120:22:13.666°52.9'N137°34.2'E
South Extreme Path Limit 1S119:51:11.319:47:09.904°53.5'S152°08.0'E
North Extreme Path Limit 2N222:59:23.922:55:22.531°49.1'N073°41.0'W
South Extreme Path Limit 2S223:33:47.023:29:45.640°06.4'S085°42.3'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2183 Sep 16

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU119:43:14.519:39:13.128°14.6'N152°37.8'E
First Internal ContactU219:48:40.319:44:38.928°44.2'N151°14.8'E
Last Internal ContactU323:36:37.923:32:36.406°30.1'S084°43.0'W
Last External ContactU423:42:04.123:38:02.706°59.8'S086°05.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:46:33.419:42:31.929°48.0'N151°43.0'E
South Extreme Path Limit 1S119:45:24.519:41:23.027°10.5'N152°08.7'E
North Extreme Path Limit 2N223:38:45.723:34:44.305°26.1'S085°12.3'W
South Extreme Path Limit 2S223:39:53.323:35:51.908°04.2'S085°35.8'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2183 Sep 16

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C119:45:57.419:41:55.928°29.1'N151°56.3'E
Extreme Central Line Limit 2C223:39:21.123:35:19.606°45.3'S085°24.4'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse21:42:36.621:38:35.112°45.0'N143°37.4'W 79.1° 197.8° 232.7 km07m53.05s
Greatest Duration21:40:32.621:36:31.213°03.6'N143°04.1'W 79.1° 192.5° 232.5 km07m53.09s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2183 Sep 16

Polynomial Besselian Elements
2183 Sep 16 at 22:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.19605 0.13489 2.3565 0.56875 0.02248 151.2937
1 0.48138 -0.15206 -0.0157 0.00001 0.00001 15.0049
2 -0.00001 -0.00002 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046488
Tan ƒ2 0.0046256

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 22.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2183 Sep 16

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2183 Sep 16 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 241.4 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
