Solar Eclipse Prime Page

Annular Solar Eclipse of 2237 Oct 19

Fred Espenak

Introduction

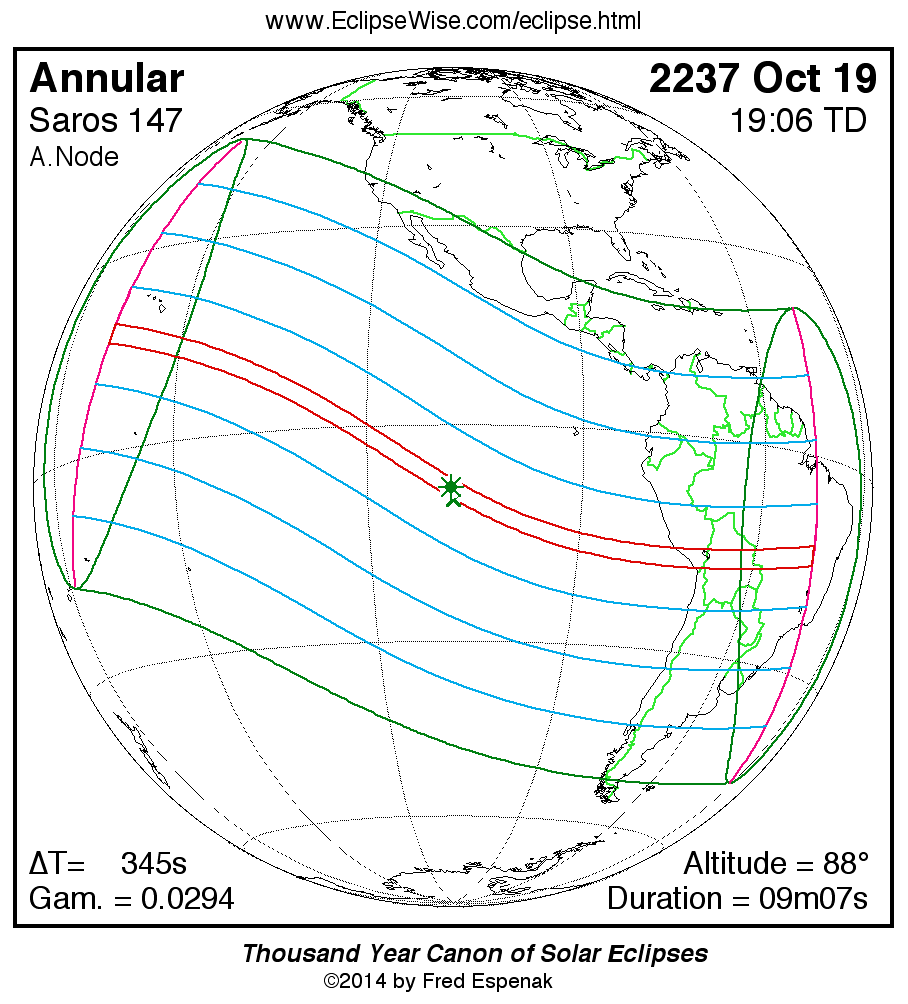

eclipse map


The Annular Solar Eclipse of 2237 Oct 19 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2237 Oct 19 at 19:06:03 TD (19:00:19 UT1). This is 1.3 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 3894.

The eclipse belongs to Saros 147 and is number 35 of 80 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2237 Oct 19 is an exceptionally long annular eclipse with a duration at greatest eclipse of 09m07s. It has an eclipse magnitude of 0.9316.

The annular solar eclipse of 2237 Oct 19 is preceded two weeks earlier by a penumbral lunar eclipse on 2237 Oct 05, and it is followed two weeks later by a penumbral lunar eclipse on 2237 Nov 03.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 344.9 seconds for this eclipse. The uncertainty in ΔT is 88.1 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.37°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2237 Oct 19 .


Eclipse Data: Annular Solar Eclipse of 2237 Oct 19

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.93156
Eclipse Obscuration 0.86781
Gamma 0.02947
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2237 Oct 19 at 19:06:03.5 TD (19:00:18.6 UT1) 2538399.291882
Ecliptic Conjunction 2237 Oct 19 at 19:06:24.7 TD (19:00:39.8 UT1) 2538399.292127
Equatorial Conjunction 2237 Oct 19 at 19:05:05.5 TD (18:59:20.6 UT1) 2538399.291211
Geocentric Coordinates of Sun and Moon
2237 Oct 19 at 19:06:03.5 TD (19:00:18.6 UT1)
Coordinate Sun Moon
Right Ascension13h37m34.3s13h37m36.1s
Declination-10°08'08.7"-10°06'36.9"
Semi-Diameter 16'02.4" 14'43.2"
Eq. Hor. Parallax 08.8" 0°54'01.2"
Geocentric Libration of Moon
Angle Value
l 1.4°
b -0.0°
c 22.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 344.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 147 (35/80)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2237 Oct 19

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP115:59:26.515:53:41.616°21.6'N149°11.7'W
First Internal ContactP218:15:14.418:09:29.519°10.6'N177°24.9'E
Last Internal ContactP319:56:53.919:51:09.011°22.3'S029°30.2'W
Last External ContactP422:12:42.922:06:58.014°11.4'S062°55.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:25:51.717:20:06.851°20.1'N160°55.2'W
South Extreme Path Limit 1S117:30:53.817:25:08.917°05.2'S178°12.0'W
North Extreme Path Limit 2N220:46:35.820:40:50.921°09.1'N047°58.1'W
South Extreme Path Limit 2S220:40:57.320:35:12.447°21.5'S031°21.7'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2237 Oct 19

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU117:04:22.816:58:37.916°55.2'N165°19.1'W
First Internal ContactU217:10:14.217:04:29.317°00.1'N166°46.0'W
Last Internal ContactU321:01:52.920:56:08.013°32.9'S045°20.3'W
Last External ContactU421:07:46.121:02:01.113°37.8'S046°47.7'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:07:09.717:01:24.818°21.0'N165°44.0'W
South Extreme Path Limit 1S117:07:30.717:01:45.815°34.2'N166°21.8'W
North Extreme Path Limit 2N221:04:59.020:59:14.112°11.6'S046°22.2'W
South Extreme Path Limit 2S221:04:36.520:58:51.614°59.3'S045°44.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2237 Oct 19

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C117:07:18.517:01:33.616°57.6'N166°02.6'W
Extreme Central Line Limit 2C221:04:49.520:59:04.613°35.4'S046°04.0'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse19:06:03.519:00:18.608°33.8'S109°50.4'W 88.4° 195.9° 256.1 km09m06.67s
Greatest Duration19:14:50.519:09:05.609°40.1'S106°26.9'W 85.4° 263.7° 256.5 km09m07.66s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2237 Oct 19

Polynomial Besselian Elements
2237 Oct 19 at 19:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.04130 0.04197 -10.1343 0.57101 0.02473 108.7790
1 0.48671 -0.13433 -0.0146 0.00003 0.00003 15.0031
2 0.00001 0.00006 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046904
Tan ƒ2 0.0046670

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2237 Oct 19

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2237 Oct 19 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 344.9 seconds for this eclipse. The uncertainty in ΔT is 88.1 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.37°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
