Total Solar Eclipse of 2247 Apr 06

Fred Espenak

Introduction

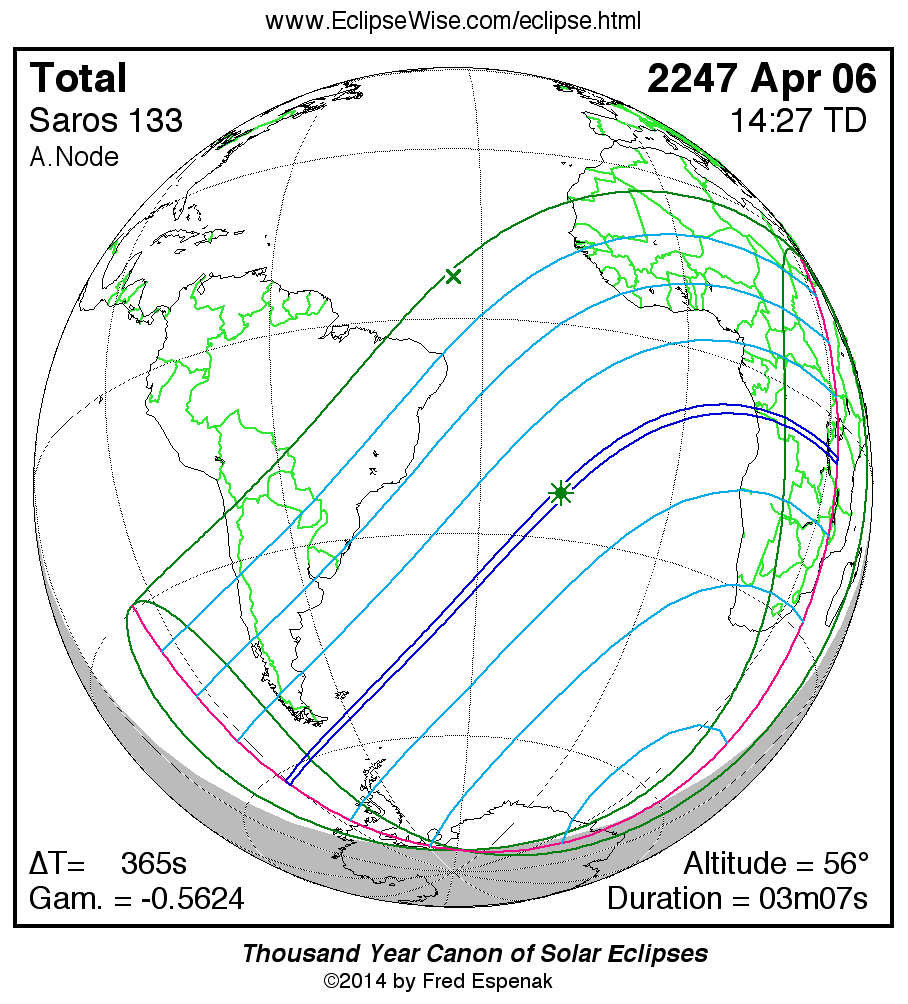

eclipse map


The Total Solar Eclipse of 2247 Apr 06 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2247 Apr 06 at 14:26:51 TD (14:20:46 UT1). This is 1.9 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Pisces. The synodic month in which the eclipse takes place has a Brown Lunation Number of 4011.

The eclipse belongs to Saros 133 and is number 58 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2247 Apr 06 is followed two weeks later by a partial lunar eclipse on 2247 Apr 20.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 365.4 seconds for this eclipse. The uncertainty in ΔT is 94.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.39°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2247 Apr 06 .


Eclipse Data: Total Solar Eclipse of 2247 Apr 06

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.03723
Eclipse Obscuration 1.07585
Gamma-0.56243
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2247 Apr 06 at 14:26:51.0 TD (14:20:45.6 UT1) 2541855.097750
Ecliptic Conjunction 2247 Apr 06 at 14:20:59.1 TD (14:14:53.8 UT1) 2541855.093678
Equatorial Conjunction 2247 Apr 06 at 13:55:04.3 TD (13:48:58.9 UT1) 2541855.075682
Geocentric Coordinates of Sun and Moon
2247 Apr 06 at 14:26:51.0 TD (14:20:45.6 UT1)
Coordinate Sun Moon
Right Ascension01h00m00.0s01h01m04.1s
Declination+06°23'36.7"+05°53'54.4"
Semi-Diameter 16'00.1" 16'22.3"
Eq. Hor. Parallax 08.8" 1°00'04.9"
Geocentric Libration of Moon
Angle Value
l -3.7°
b 0.8°
c -21.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 365.4 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 133 (58/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2247 Apr 06

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP111:56:04.811:49:59.449°26.3'S079°22.8'W
Last External ContactP416:57:45.616:51:40.206°47.7'N018°28.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N112:44:27.812:38:22.429°29.5'S095°20.2'W
South Extreme Path Limit 1S116:09:12.016:03:06.726°51.8'N033°06.7'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2247 Apr 06

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU112:59:23.012:53:17.661°48.3'S090°39.9'W
First Internal ContactU213:00:52.612:54:47.262°14.9'S090°48.4'W
Last Internal ContactU315:53:06.715:47:01.306°14.9'S033°09.7'E
Last External ContactU415:54:40.215:48:34.805°46.3'S032°49.6'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N112:59:44.212:53:38.861°37.9'S090°50.4'W
South Extreme Path Limit 1S113:00:31.712:54:26.362°25.2'S090°37.7'W
North Extreme Path Limit 2N215:54:17.815:48:12.405°35.1'S032°56.4'E
South Extreme Path Limit 2S215:53:28.615:47:23.206°26.0'S033°03.0'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2247 Apr 06

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C113:00:07.712:54:02.362°01.5'S090°44.2'W
Extreme Central Line Limit 2C215:53:53.515:47:48.106°00.5'S032°59.6'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse14:26:51.014:20:45.623°45.8'S019°12.3'W 55.6° 329.2° 148.9 km03m06.71s
Greatest Duration14:30:19.614:24:14.322°47.6'S016°46.5'W 55.6° 325.8° 150.0 km03m06.83s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2247 Apr 06

Polynomial Besselian Elements
2247 Apr 06 at 14:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.04124 -0.61617 6.3880 0.54021 -0.00592 29.3740
1 0.50215 0.26949 0.0151 -0.00008 -0.00008 15.0041
2 0.00003 0.00000 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046779
Tan ƒ2 0.0046546

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 14.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2247 Apr 06

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2247 Apr 06 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 365.4 seconds for this eclipse. The uncertainty in ΔT is 94.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.39°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
