Annular Solar Eclipse of 2346 Dec 13

Fred Espenak

Introduction

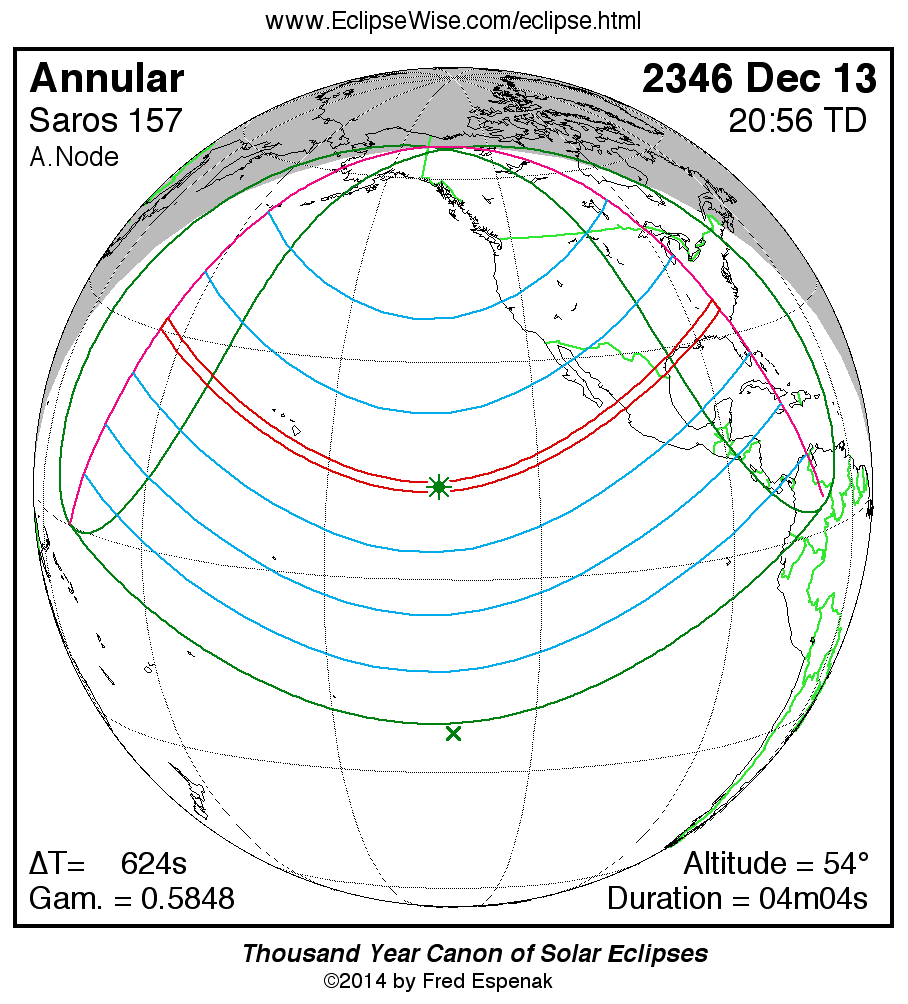

The Annular Solar Eclipse of 2346 Dec 13 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2346 Dec 13 at 20:55:35 TD (20:45:11 UT1). This is 6.6 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Ophiuchus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 5244.

The eclipse belongs to Saros 157 and is number 17 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 2346 Dec 13 is preceded two weeks earlier by a partial lunar eclipse on 2346 Nov 29.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 624.2 seconds for this eclipse. The uncertainty in ΔT is 163.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.68°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2346 Dec 13 .


Eclipse Data: Annular Solar Eclipse of 2346 Dec 13

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96652
Eclipse Obscuration 0.93416
Gamma 0.58482
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2346 Dec 13 at 20:55:35.3 TD (20:45:11.1 UT1) 2578265.364712
Ecliptic Conjunction 2346 Dec 13 at 21:02:09.4 TD (20:51:45.2 UT1) 2578265.369273
Equatorial Conjunction 2346 Dec 13 at 20:57:47.9 TD (20:47:23.7 UT1) 2578265.366247
Geocentric Coordinates of Sun and Moon
2346 Dec 13 at 20:55:35.3 TD (20:45:11.1 UT1)
Coordinate Sun Moon
Right Ascension17h21m40.7s17h21m35.9s
Declination-23°06'05.6"-22°32'57.3"
Semi-Diameter 16'13.9" 15'29.4"
Eq. Hor. Parallax 08.9" 0°56'50.9"
Geocentric Libration of Moon
Angle Value
l 5.0°
b -0.7°
c 5.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 624.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 157 (17/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2346 Dec 13

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP118:13:28.018:03:03.718°34.0'N174°11.0'W
Last External ContactP423:37:48.323:27:24.022°04.5'N093°27.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:15:16.919:04:52.600°07.4'N162°11.3'E
South Extreme Path Limit 1S122:35:55.322:25:31.003°40.1'N069°35.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2346 Dec 13

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU119:22:53.519:12:29.230°32.6'N174°48.3'E
First Internal ContactU219:26:31.219:16:06.931°30.6'N174°28.8'E
Last Internal ContactU322:24:35.522:14:11.334°56.4'N082°31.7'W
Last External ContactU422:28:19.322:17:55.133°57.4'N082°49.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:25:30.719:15:06.531°50.1'N174°55.8'E
South Extreme Path Limit 1S119:23:55.219:13:31.030°12.5'N174°21.0'E
North Extreme Path Limit 2N222:25:37.622:15:13.435°16.2'N083°00.5'W
South Extreme Path Limit 2S222:27:15.922:16:51.633°37.0'N082°20.0'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2346 Dec 13

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C119:24:41.919:14:17.731°01.1'N174°38.3'E
Extreme Central Line Limit 2C222:26:27.822:16:03.634°26.4'N082°40.0'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse20:55:35.320:45:11.112°45.5'N136°42.2'W 54.1° 178.2° 148.8 km04m03.70s
Greatest Duration20:58:31.620:48:07.312°49.0'N133°17.6'W 54.1° 180.6° 148.8 km04m03.75s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2346 Dec 13

Polynomial Besselian Elements
2346 Dec 13 at 21:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.01960 0.58581 -23.1032 0.55952 0.01330 136.6503
1 0.53429 0.01801 -0.0028 0.00012 0.00012 14.9966
2 -0.00002 0.00014 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047460
Tan ƒ2 0.0047224

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2346 Dec 13

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2346 Dec 13 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 624.2 seconds for this eclipse. The uncertainty in ΔT is 163.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.68°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
