Total Solar Eclipse of 2414 Apr 20

Fred Espenak

Introduction

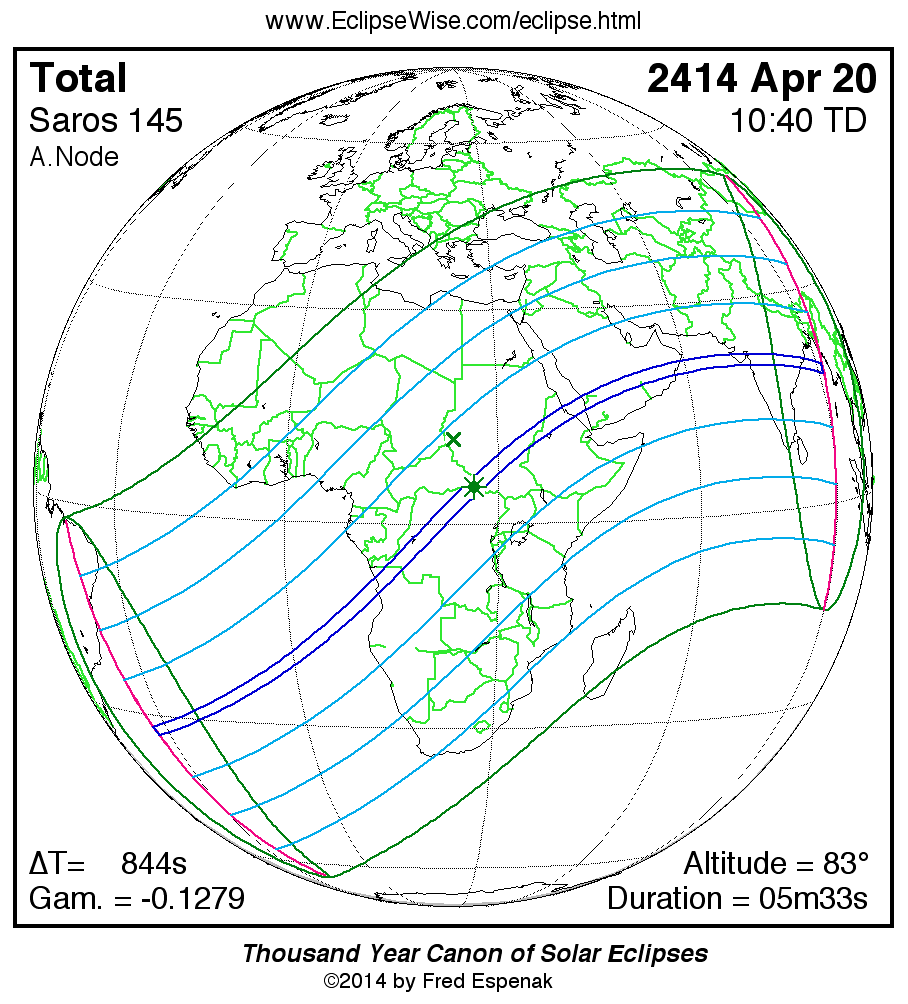

The Total Solar Eclipse of 2414 Apr 20 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2414 Apr 20 at 10:39:38 TD (10:25:34 UT1). This is 0.3 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 6077.

The eclipse belongs to Saros 145 and is number 44 of 77 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2414 Apr 20 is a relatively long total eclipse with a duration at greatest eclipse of 05m33s. It has an eclipse magnitude of 1.0661.

The total solar eclipse of 2414 Apr 20 is followed two weeks later by a penumbral lunar eclipse on 2414 May 05.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 843.7 seconds for this eclipse. The uncertainty in ΔT is 218.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.91°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2414 Apr 20 .


Eclipse Data: Total Solar Eclipse of 2414 Apr 20

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.06609
Eclipse Obscuration 1.13654
Gamma-0.12790
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2414 Apr 20 at 10:39:37.9 TD (10:25:34.2 UT1) 2602864.934423
Ecliptic Conjunction 2414 Apr 20 at 10:38:19.6 TD (10:24:16.0 UT1) 2602864.933518
Equatorial Conjunction 2414 Apr 20 at 10:33:11.0 TD (10:19:07.3 UT1) 2602864.929946
Geocentric Coordinates of Sun and Moon
2414 Apr 20 at 10:39:37.9 TD (10:25:34.2 UT1)
Coordinate Sun Moon
Right Ascension01h53m20.9s01h53m35.0s
Declination+11°36'01.7"+11°28'59.9"
Semi-Diameter 15'57.0" 16'43.1"
Eq. Hor. Parallax 08.8" 1°01'21.3"
Geocentric Libration of Moon
Angle Value
l 0.6°
b 0.2°
c -18.9°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 843.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 145 (44/77)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2414 Apr 20

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP108:02:29.607:48:25.930°22.5'S020°26.0'W
First Internal ContactP209:53:39.909:39:36.241°12.9'S044°46.3'W
Last Internal ContactP311:25:44.411:11:40.710°01.7'N103°56.3'E
Last External ContactP413:16:49.513:02:45.820°58.0'N078°36.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N109:09:48.008:55:44.402°14.6'S043°41.6'W
South Extreme Path Limit 1S109:18:46.509:04:42.865°00.6'S020°18.7'W
North Extreme Path Limit 2N212:09:12.511:55:08.848°46.8'N104°33.8'E
South Extreme Path Limit 2S212:00:56.511:46:52.815°00.1'S089°53.6'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2414 Apr 20

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU108:56:25.308:42:21.732°47.0'S033°13.5'W
First Internal ContactU208:58:59.608:44:56.032°57.7'S033°49.0'W
Last Internal ContactU312:20:20.612:06:16.918°21.9'N092°07.0'E
Last External ContactU412:22:54.112:08:50.418°32.6'N091°31.1'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N108:57:39.908:43:36.332°10.6'S033°42.7'W
South Extreme Path Limit 1S108:57:46.308:43:42.633°34.0'S033°19.9'W
North Extreme Path Limit 2N212:21:39.512:07:35.819°09.1'N091°58.2'E
South Extreme Path Limit 2S212:21:34.012:07:30.317°45.5'N091°40.4'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2414 Apr 20

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C108:57:42.508:43:38.832°52.3'S033°31.3'W
Extreme Central Line Limit 2C212:21:37.412:07:33.718°27.3'N091°49.1'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse10:39:37.910:25:34.205°01.2'N023°05.9'E 82.7° 334.2° 217.5 km05m33.28s
Greatest Duration10:45:02.310:30:58.606°19.1'N028°00.5'E 82.1° 312.3° 217.9 km05m33.66s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2414 Apr 20

Polynomial Besselian Elements
2414 Apr 20 at 11:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.23409 -0.02773 11.6054 0.53378 -0.01232 345.2333
1 0.52378 0.25662 0.0137 0.00001 0.00001 15.0033
2 0.00002 -0.00007 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046626
Tan ƒ2 0.0046393

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2414 Apr 20

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2414 Apr 20 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 843.7 seconds for this eclipse. The uncertainty in ΔT is 218.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.91°.
