Annular Solar Eclipse of 2598 Nov 19

Fred Espenak

Introduction

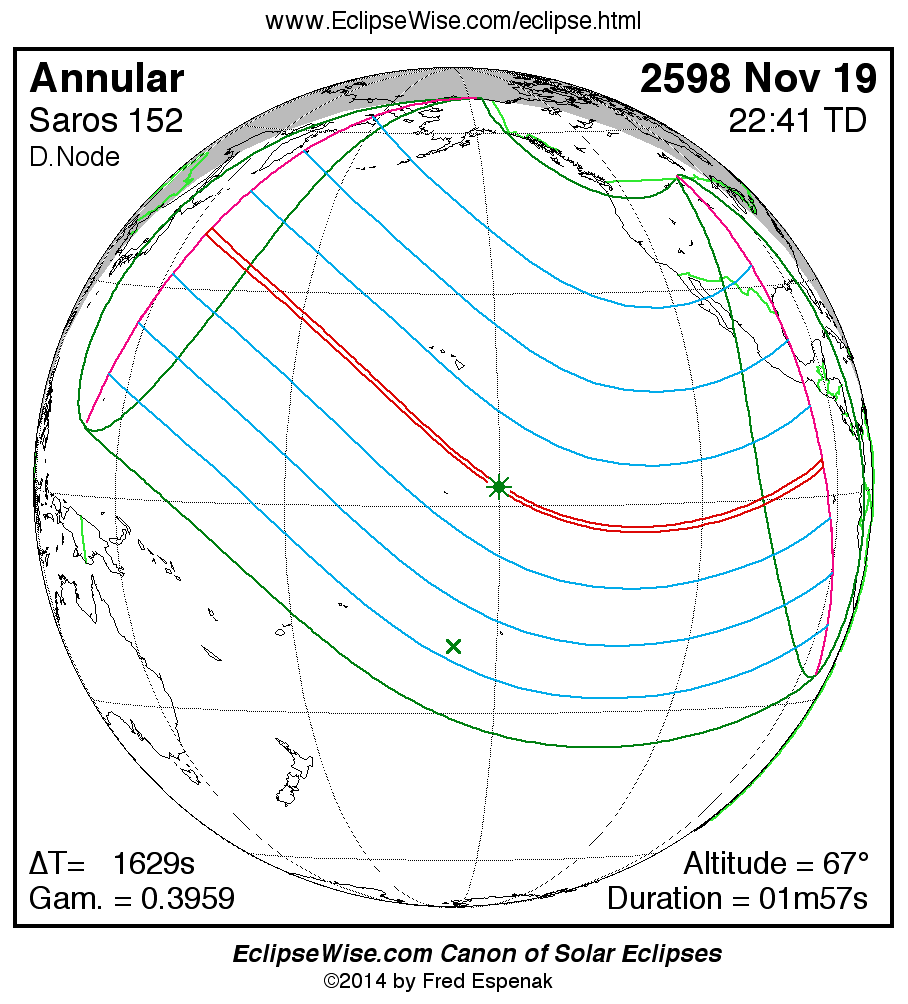

eclipse map


The Annular Solar Eclipse of 2598 Nov 19 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2598 Nov 19 at 22:41:01 TD (22:13:51 UT1). This is 6.3 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 8360.

The eclipse belongs to Saros 152 and is number 45 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2598 Nov 19 is followed two weeks later by a partial lunar eclipse on 2598 Dec 03.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1629.2 seconds for this eclipse. The uncertainty in ΔT is 397.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.66°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2598 Nov 19 .


Eclipse Data: Annular Solar Eclipse of 2598 Nov 19

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.98246
Eclipse Obscuration 0.96523
Gamma 0.39592
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2598 Nov 19 at 22:41:00.6 TD (22:13:51.4 UT1) 2670283.426289
Ecliptic Conjunction 2598 Nov 19 at 22:36:37.3 TD (22:09:28.1 UT1) 2670283.423242
Equatorial Conjunction 2598 Nov 19 at 22:26:11.5 TD (21:59:02.2 UT1) 2670283.415998
Geocentric Coordinates of Sun and Moon
2598 Nov 19 at 22:41:00.6 TD (22:13:51.4 UT1)
Coordinate Sun Moon
Right Ascension15h42m36.6s15h43m07.2s
Declination-19°37'42.3"-19°16'14.0"
Semi-Diameter 16'08.9" 15'38.0"
Eq. Hor. Parallax 08.9" 0°57'22.6"
Geocentric Libration of Moon
Angle Value
l -4.8°
b -0.5°
c 11.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 1629.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 152 (45/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2598 Nov 19

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP119:54:10.619:27:01.431°24.4'N167°01.8'E
First Internal ContactP222:19:17.921:52:08.769°00.2'N173°30.4'W
Last Internal ContactP323:03:06.222:35:57.041°36.7'N091°13.9'W
Last External ContactP401:27:50.401:00:41.203°39.1'S107°38.1'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:04:00.521:36:51.370°20.9'N144°50.4'W
South Extreme Path Limit 1S121:00:48.320:33:39.109°19.8'N141°10.2'E
North Extreme Path Limit 2N223:18:34.722:51:25.549°23.9'N101°13.5'W
South Extreme Path Limit 2S200:21:06.723:53:57.525°49.1'S082°18.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2598 Nov 19

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU120:58:09.220:31:00.039°02.1'N155°16.2'E
First Internal ContactU221:00:25.020:33:15.839°27.1'N154°57.9'E
Last Internal ContactU300:21:48.023:54:38.804°40.1'N094°06.2'W
Last External ContactU400:23:57.923:56:48.704°15.0'N094°29.6'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N120:59:34.320:32:25.139°45.8'N155°22.2'E
South Extreme Path Limit 1S120:59:00.420:31:51.238°43.2'N154°51.9'E
North Extreme Path Limit 2N200:22:36.823:55:27.604°58.8'N094°25.1'W
South Extreme Path Limit 2S200:23:08.823:55:59.603°56.1'N094°10.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2598 Nov 19

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C120:59:17.120:32:07.839°14.5'N155°06.9'E
Extreme Central Line Limit 2C200:22:53.023:55:43.804°27.4'N094°17.8'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse22:41:00.622:13:51.402°35.3'N156°45.9'W 66.7° 197.5° 67.4 km01m56.91s
Greatest Duration20:59:17.120:32:07.839°14.5'N155°06.9'E 0.0° 115.7° 123.2 km02m11.49s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2598 Nov 19

Polynomial Besselian Elements
2598 Nov 19 at 23:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.28871 0.32046 -19.6322 0.55535 0.00915 168.7903
1 0.51240 -0.17276 -0.0089 -0.00013 -0.00012 14.9991
2 0.00005 0.00011 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047212
Tan ƒ2 0.0046977

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2598 Nov 19

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2598 Nov 19 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1629.2 seconds for this eclipse. The uncertainty in ΔT is 397.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.66°.
