Hybrid Solar Eclipse of 2704 Mar 27

Fred Espenak

Introduction

eclipse map

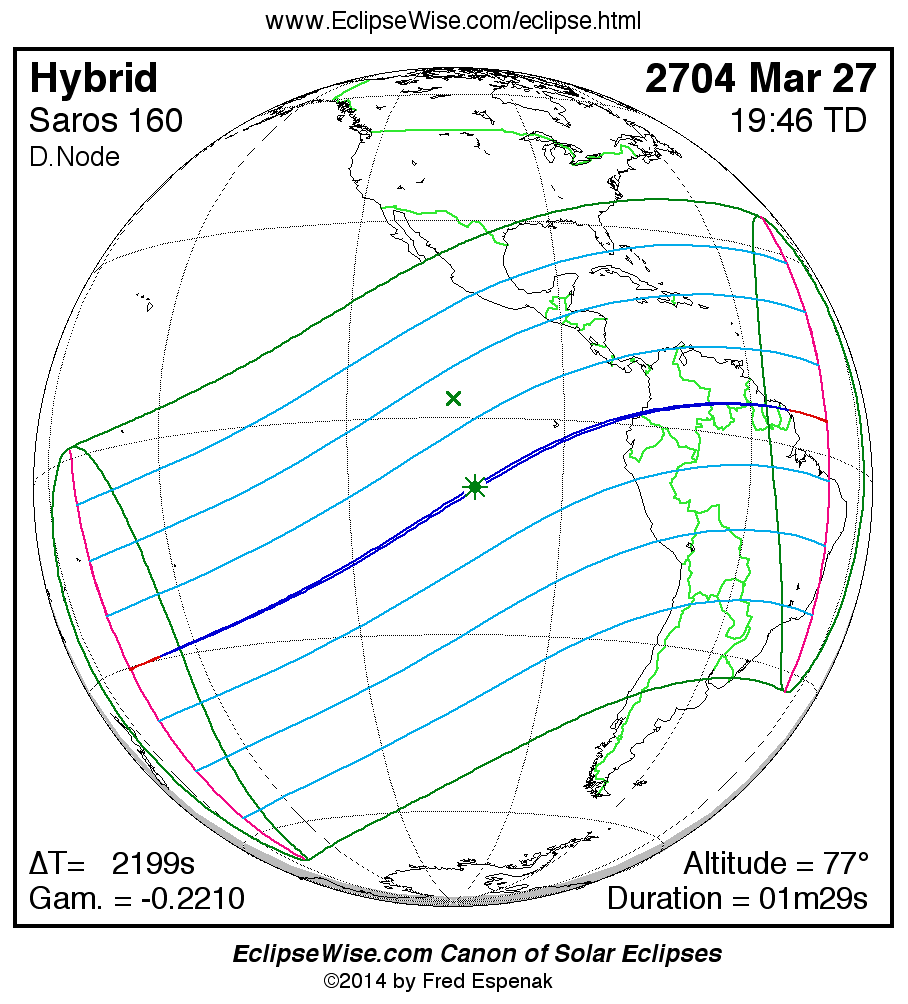

The Hybrid Solar Eclipse of 2704 Mar 27 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2704 Mar 27 at 19:45:54 TD (19:09:15 UT1). This is 3.2 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Pisces. The synodic month in which the eclipse takes place has a Brown Lunation Number of 9663.

The eclipse belongs to Saros 160 and is number 30 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 2704 Mar 27 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends.

The hybrid solar eclipse of 2704 Mar 27 is preceded two weeks earlier by a penumbral lunar eclipse on 2704 Mar 13.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2198.5 seconds for this eclipse. The uncertainty in ΔT is 518.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.17°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of 2704 Mar 27 .


Eclipse Data: Hybrid Solar Eclipse of 2704 Mar 27

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.01480
Eclipse Obscuration 1.02982
Gamma-0.22100
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2704 Mar 27 at 19:45:53.6 TD (19:09:15.1 UT1) 2708761.298091
Ecliptic Conjunction 2704 Mar 27 at 19:48:15.9 TD (19:11:37.4 UT1) 2708761.299738
Equatorial Conjunction 2704 Mar 27 at 19:38:23.6 TD (19:01:45.1 UT1) 2708761.292883
Geocentric Coordinates of Sun and Moon
2704 Mar 27 at 19:45:53.6 TD (19:09:15.1 UT1)
Coordinate Sun Moon
Right Ascension00h25m08.9s00h25m24.6s
Declination+02°42'21.8"+02°29'58.4"
Semi-Diameter 16'04.8" 16'03.5"
Eq. Hor. Parallax 08.8" 0°58'56.0"
Geocentric Libration of Moon
Angle Value
l 4.3°
b 0.3°
c -24.7°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 2198.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 160 (30/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 2704 Mar 27

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP117:01:16.616:24:38.125°50.8'S153°37.0'W
First Internal ContactP219:03:31.318:26:52.846°55.8'S177°24.6'E
Last Internal ContactP320:28:26.919:51:48.411°45.4'S027°16.8'W
Last External ContactP422:30:39.621:54:01.109°20.3'N056°49.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:05:15.017:28:36.501°29.7'N170°58.4'W
South Extreme Path Limit 1S118:36:31.817:59:53.367°48.9'S172°07.0'W
North Extreme Path Limit 2N221:26:22.220:49:43.736°40.5'N039°09.6'W
South Extreme Path Limit 2S220:55:38.920:19:00.432°51.2'S035°16.7'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 2704 Mar 27

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU118:01:00.617:24:22.030°24.6'S168°16.3'W
First Internal ContactU218:01:05.217:24:26.730°25.2'S168°17.4'W
Last Internal ContactU321:30:45.520:54:07.004°45.0'N042°04.2'W
Last External ContactU421:30:55.320:54:16.704°46.2'N042°06.5'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:01:02.417:24:23.930°23.7'S168°16.8'W
South Extreme Path Limit 1S118:01:03.317:24:24.830°26.1'S168°16.9'W
North Extreme Path Limit 2N221:30:51.420:54:12.904°48.2'N042°05.5'W
South Extreme Path Limit 2S221:30:49.420:54:10.904°43.0'N042°05.2'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of 2704 Mar 27

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C118:01:02.917:24:24.430°24.9'S168°16.8'W
Extreme Central Line Limit 2C221:30:50.420:54:11.904°45.6'N042°05.3'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse19:45:53.619:09:15.109°31.9'S111°23.6'W 77.2° 342.4° 52.0 km01m29.37s
Greatest Duration19:43:40.719:07:02.209°53.6'S102°47.6'W 77.1° 347.7° 52.0 km01m29.40s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of 2704 Mar 27

Polynomial Besselian Elements
2704 Mar 27 at 20:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.19151 -0.17134 2.7103 0.54676 0.00060 118.7860
1 0.53179 0.16771 0.0159 0.00010 0.00010 15.0042
2 -0.00002 -0.00001 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047009
Tan ƒ2 0.0046775

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of 2704 Mar 27

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of 2704 Mar 27 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2198.5 seconds for this eclipse. The uncertainty in ΔT is 518.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.17°.
