Partial Lunar Eclipse of 1905 Aug 15

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Partial Lunar Eclipse of 1905 Aug 15 is visible from the following geographic regions:

  • Americas, Europe, Africa, western Asia

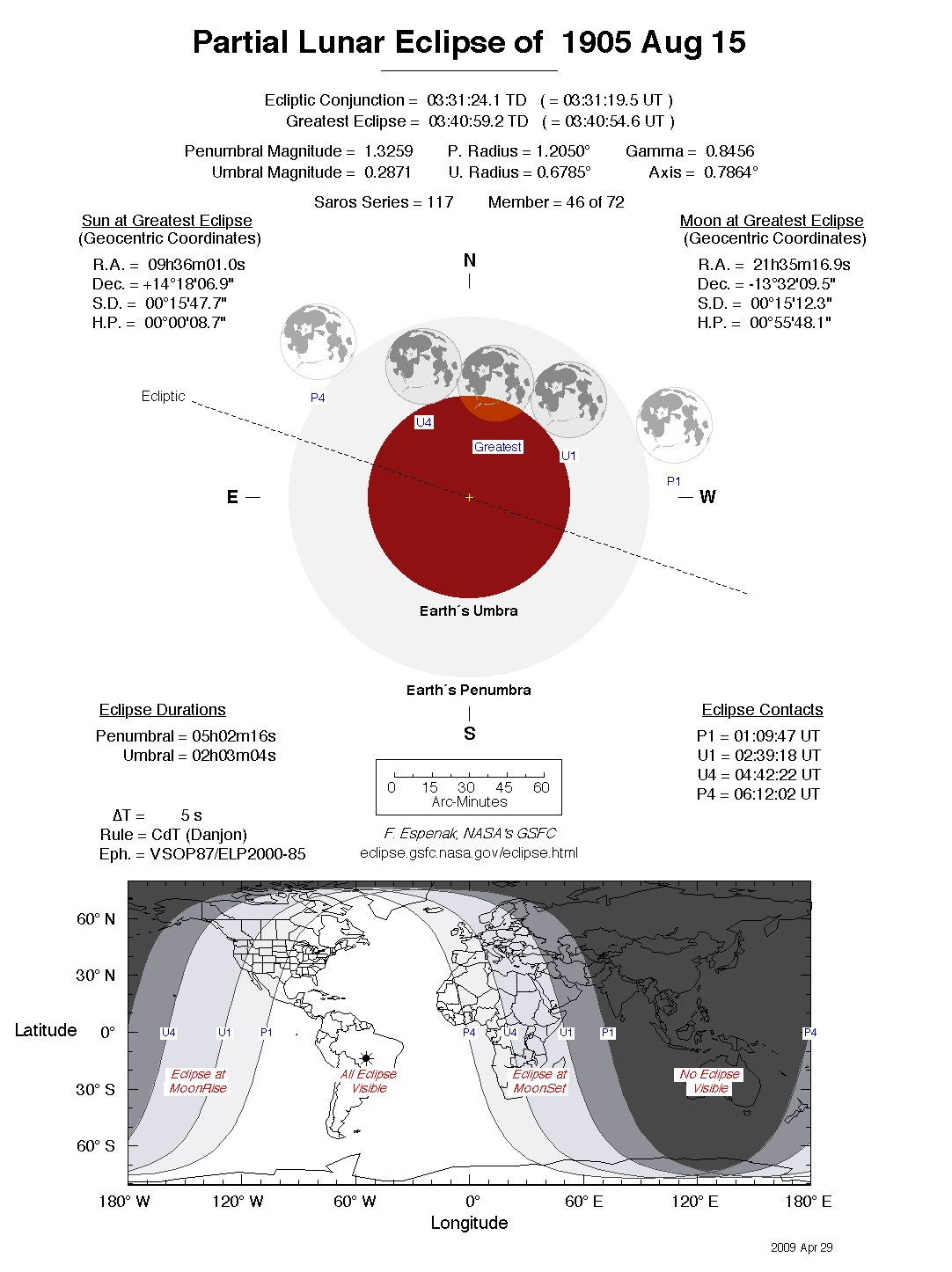

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1905 Aug 15 at 03:40:59 TD (03:40:54 UT1). This is 5.4 days before the Moon reaches apogee. During the eclipse, the Moon is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -215.

The eclipse belongs to Saros 117 and is number 46 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The partial lunar eclipse of 1905 Aug 15 is followed two weeks later by a total solar eclipse on 1905 Aug 30.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 4.6 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 1905 Aug 15 .


Eclipse Data: Partial Lunar Eclipse of 1905 Aug 15

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.32590
Umbral Magnitude 0.28710
Gamma 0.84566
Epsilon 0.7864°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1905 Aug 15 at 03:40:58.9 TD (03:40:54.3 UT1) 2417072.653406
Ecliptic Opposition 1905 Aug 15 at 03:31:24.2 TD (03:31:19.6 UT1) 2417072.646755
Equatorial Opposition 1905 Aug 15 at 04:03:34.1 TD (04:03:29.5 UT1) 2417072.669092
Geocentric Coordinates of Sun and Moon
1905 Aug 15 at 03:40:58.9 TD (03:40:54.3 UT1)
Coordinate Sun Moon
Right Ascension09h36m01.0s21h35m16.9s
Declination+14°18'06.9"-13°32'09.5"
Semi-Diameter 15'47.7" 15'12.3"
Eq. Hor. Parallax 08.7" 0°55'48.1"
Geocentric Libration of Moon
Angle Value
l 4.7°
b -1.0°
c -20.3°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2050°
Umbral Radius 0.6785°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE405
ΔT 4.6 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 117 (46/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 1905 Aug 15

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP101:09:47.601:09:43.013°50.6'S017°43.2'W 289.5° 1.4595°
Partial BeginsU102:39:21.502:39:16.913°39.7'S039°23.0'W 314.4° 0.9324°
Greatest EclipseGreatest03:40:58.903:40:54.313°32.2'S054°17.3'W 346.9° 0.7864°
Partial EndsU404:42:26.804:42:22.213°24.6'S069°09.5'W 19.3° 0.9315°
Penumbral EndsP406:12:09.106:12:04.513°13.3'S090°51.5'W 44.2° 1.4573°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h02m21.5s
Partial (U4 - U1)02h03m05.3s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 1905 Aug 15

Polynomial Besselian Elements
1905 Aug 15 at 04:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.02822 0.80094 0.2495 1.20488 0.67839 0.25338
1 0.47454 0.11074 -0.0002 -0.00034 -0.00035 -0.00009
2 -0.00021 0.00000 -0.0000 0.00000 0.00000 0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Partial Lunar Eclipse of 1905 Aug 15

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Partial Lunar Eclipse of 1905 Aug 15 were generated using the JPL DE405 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The Earth's umbral and penumbral shadows were calculated using the Danjon methodusing a mean mid-latitude ellipticity to compensate for the opacity of the terrestrial atmosphere.

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4.6 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
