Penumbral Lunar Eclipse of 1963 Jan 09

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Penumbral Lunar Eclipse of 1963 Jan 09 is visible from the following geographic regions:

  • Americas, Europe, Africa, Asia

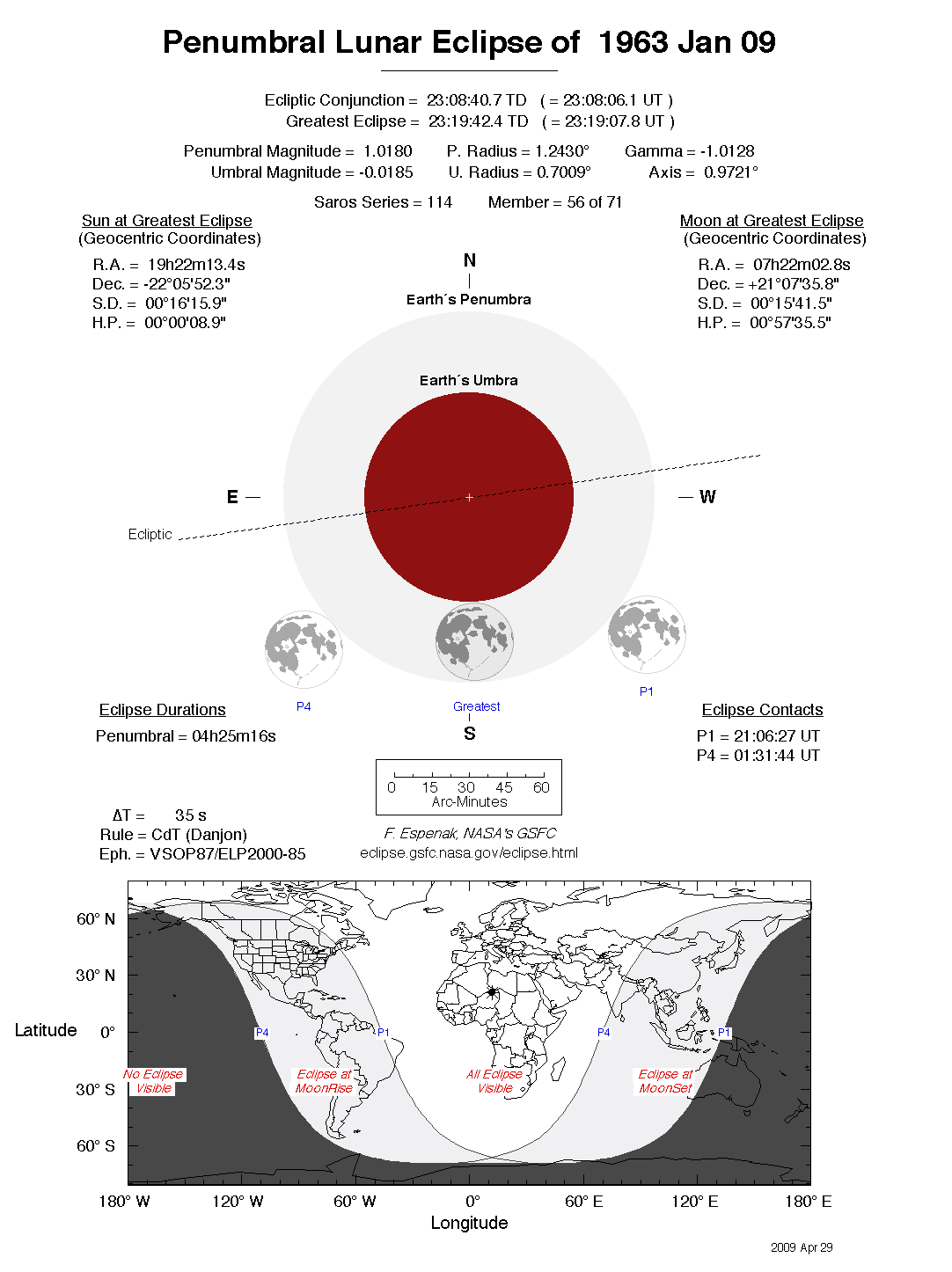

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1963 Jan 09 at 23:19:42 TD (23:19:08 UT1). This is 5.6 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of 495.

The eclipse belongs to Saros 114 and is number 56 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This very deep penumbral eclipse is a rare total penumbral eclipse in which the entire disk of the Moon is immersed in the penumbral shadow. It has a penumbral eclipse magnitude of 1.0180 and a penumbral eclipse duration of 265.4 minutes. Gamma has a value of -1.0128.

The penumbral lunar eclipse of 1963 Jan 09 is followed two weeks later by a annular solar eclipse on 1963 Jan 25.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 34.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 1963 Jan 09 .


Eclipse Data: Penumbral Lunar Eclipse of 1963 Jan 09

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.01802
Umbral Magnitude-0.01844
Gamma-1.01282
Epsilon 0.9721°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1963 Jan 09 at 23:19:42.3 TD (23:19:07.8 UT1) 2438039.471618
Ecliptic Opposition 1963 Jan 09 at 23:08:40.8 TD (23:08:06.3 UT1) 2438039.463961
Equatorial Opposition 1963 Jan 09 at 23:24:27.4 TD (23:23:52.9 UT1) 2438039.474918
Geocentric Coordinates of Sun and Moon
1963 Jan 09 at 23:19:42.3 TD (23:19:07.8 UT1)
Coordinate Sun Moon
Right Ascension19h22m13.4s07h22m02.8s
Declination-22°05'52.3"+21°07'35.9"
Semi-Diameter 16'15.9" 15'41.5"
Eq. Hor. Parallax 08.9" 0°57'35.5"
Geocentric Libration of Moon
Angle Value
l 5.0°
b 1.3°
c 9.5°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2430°
Umbral Radius 0.7009°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE405
ΔT 34.5 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 114 (56/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 1963 Jan 09

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP121:06:58.821:06:24.321°11.0'N043°53.8'E 232.2° 1.5057°
Greatest EclipseGreatest23:19:42.323:19:07.821°07.6'N011°57.4'E 182.4° 0.9721°
Penumbral EndsP401:32:20.801:31:46.321°03.6'N019°58.0'W 132.7° 1.5034°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h25m22.0s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 1963 Jan 09

Polynomial Besselian Elements
1963 Jan 09 at 23:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.21145 -0.96399 -0.3857 1.24315 0.70100 0.26158
1 0.51884 -0.02188 0.0001 -0.00041 -0.00041 -0.00011
2 -0.00024 -0.00010 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Penumbral Lunar Eclipse of 1963 Jan 09

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 1963 Jan 09 were generated using the JPL DE405 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The Earth's umbral and penumbral shadows were calculated using the Danjon methodusing a mean mid-latitude ellipticity to compensate for the opacity of the terrestrial atmosphere.

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 34.5 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
