Total Lunar Eclipse of 2054 Feb 22

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Total Lunar Eclipse of 2054 Feb 22 is visible from the following geographic regions:

  • eastern Asia, eastern Australia, Americas, Europe, western Africa

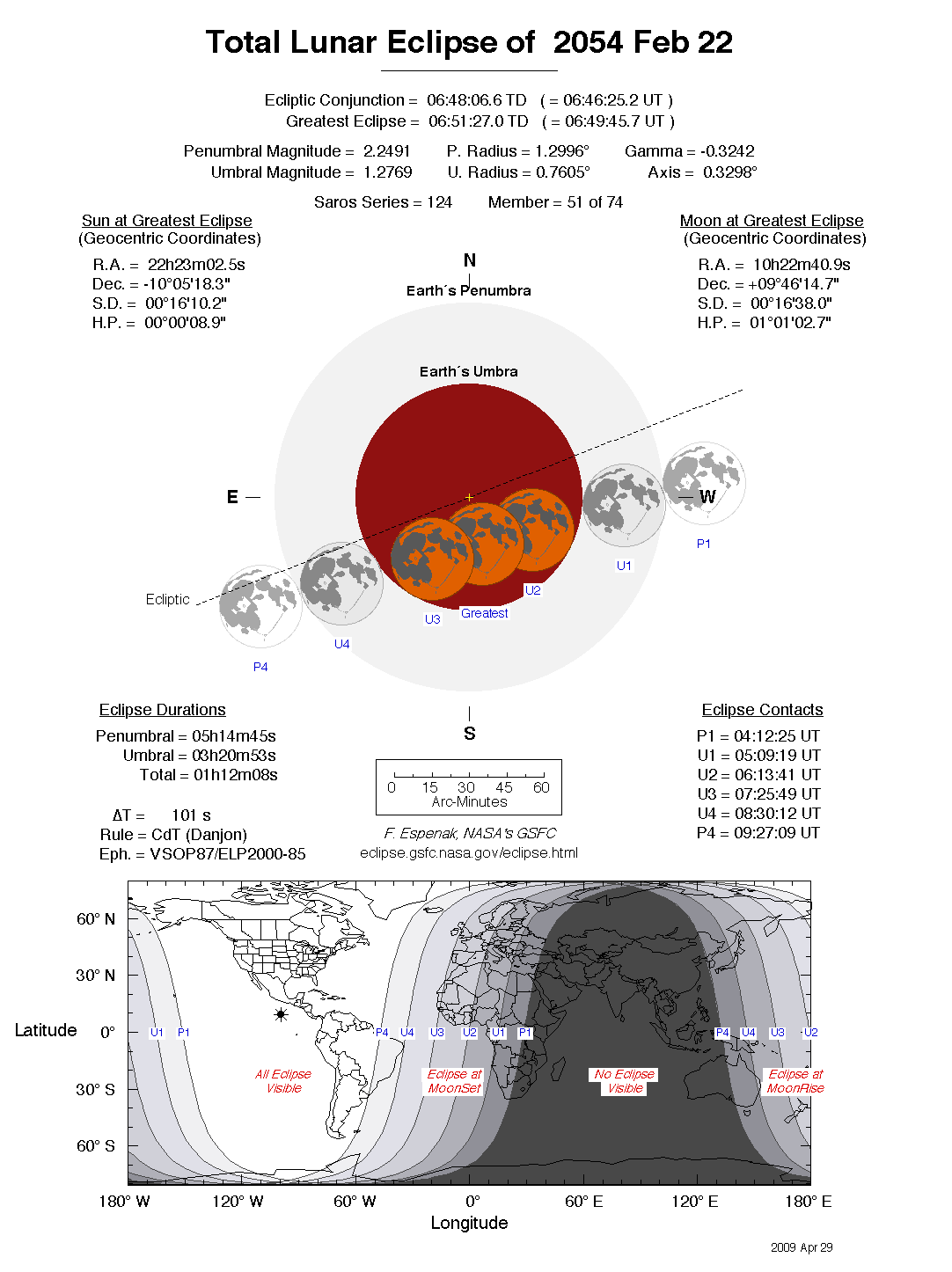

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2054 Feb 22 at 06:51:27 TD (06:49:59 UT1). This is 1.0 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1622.

The eclipse belongs to Saros 124 and is number 51 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total lunar eclipse of 2054 Feb 22 is followed two weeks later by a partial solar eclipse on 2054 Mar 09.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 87.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 2054 Feb 22 .


Eclipse Data: Total Lunar Eclipse of 2054 Feb 22

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.25022
Umbral Magnitude 1.27805
Gamma-0.32419
Epsilon 0.3298°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2054 Feb 22 at 06:51:27.0 TD (06:49:59.1 UT1) 2471320.784712
Ecliptic Opposition 2054 Feb 22 at 06:48:06.4 TD (06:46:38.6 UT1) 2471320.782391
Equatorial Opposition 2054 Feb 22 at 07:00:50.8 TD (06:59:23.0 UT1) 2471320.791238
Geocentric Coordinates of Sun and Moon
2054 Feb 22 at 06:51:27.0 TD (06:49:59.1 UT1)
Coordinate Sun Moon
Right Ascension22h23m02.4s10h22m40.9s
Declination-10°05'18.4"+09°46'14.8"
Semi-Diameter 16'10.2" 16'38.0"
Eq. Hor. Parallax 08.9" 1°01'02.7"
Geocentric Libration of Moon
Angle Value
l 2.0°
b 0.4°
c 22.8°
Earth's Shadows
Parameter Value
Penumbral Radius 1.3033°
Umbral Radius 0.7643°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 87.8 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 124 (51/73)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 2054 Feb 22

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP104:13:39.304:12:11.510°13.3'N061°17.9'W 273.5° 1.5811°
Partial BeginsU105:10:35.205:09:07.410°03.6'N074°59.2'W 267.1° 1.0419°
Total BeginsU206:14:57.106:13:29.309°52.5'N090°27.7'W 242.9° 0.4864°
Greatest EclipseGreatest06:51:27.006:49:59.109°46.2'N099°14.2'W 195.6° 0.3298°
Total EndsU307:27:41.507:26:13.709°40.0'N107°57.1'W 148.5° 0.4845°
Partial EndsU408:32:10.708:30:42.909°28.7'N123°27.5'W 124.1° 1.0399°
Penumbral EndsP409:29:12.309:27:44.509°18.7'N137°10.3'W 117.7° 1.5790°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h15m33.0s
Partial (U4 - U1)03h21m35.5s
Total (U3 - U2)01h12m44.4s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 2054 Feb 22

Polynomial Besselian Elements
2054 Feb 22 at 07:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.00798 -0.34017 -0.1760 1.30323 0.76422 0.27721
1 0.56603 -0.15798 0.0003 -0.00022 -0.00021 -0.00006
2 -0.00014 -0.00001 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 7.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Total Lunar Eclipse of 2054 Feb 22

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 2054 Feb 22 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 87.8 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
