Total Lunar Eclipse of 2066 Jan 11

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Total Lunar Eclipse of 2066 Jan 11 is visible from the following geographic regions:

  • Europe, eastern Africa, Asia, Australia, North America

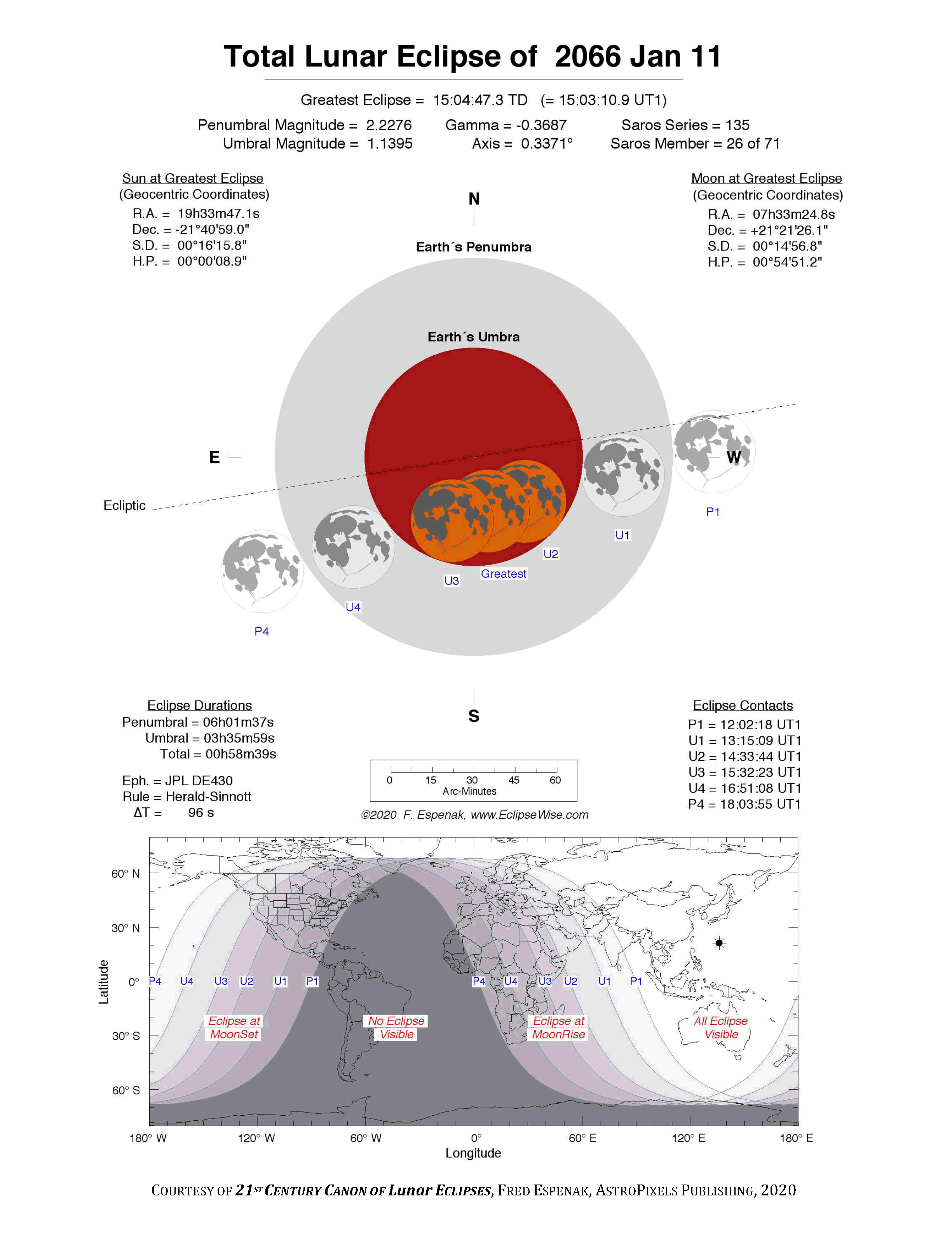

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2066 Jan 11 at 15:04:47 TD (15:03:11 UT1). This is 4.0 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1769.

The eclipse belongs to Saros 135 and is number 26 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The total lunar eclipse of 2066 Jan 11 is preceded two weeks earlier by a partial solar eclipse on 2065 Dec 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 96.4 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 2066 Jan 11 .


Eclipse Data: Total Lunar Eclipse of 2066 Jan 11

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.22759
Umbral Magnitude 1.13949
Gamma-0.36871
Epsilon 0.3371°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2066 Jan 11 at 15:04:47.3 TD (15:03:10.9 UT1) 2475662.127210
Ecliptic Opposition 2066 Jan 11 at 15:09:09.0 TD (15:07:32.6 UT1) 2475662.130239
Equatorial Opposition 2066 Jan 11 at 15:16:15.9 TD (15:14:39.6 UT1) 2475662.135180
Geocentric Coordinates of Sun and Moon
2066 Jan 11 at 15:04:47.3 TD (15:03:10.9 UT1)
Coordinate Sun Moon
Right Ascension19h33m47.1s07h33m24.8s
Declination-21°40'59.0"+21°21'26.1"
Semi-Diameter 16'15.8" 14'56.8"
Eq. Hor. Parallax 08.9" 0°54'51.2"
Geocentric Libration of Moon
Angle Value
l -3.5°
b 0.4°
c 7.5°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2002°
Umbral Radius 0.6581°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 96.4 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 135 (26/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 2066 Jan 11

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP112:03:54.212:02:17.821°43.8'N179°51.4'E 271.4° 1.4484°
Partial BeginsU113:16:45.413:15:09.021°34.9'N162°14.4'E 263.0° 0.9066°
Total BeginsU214:35:20.214:33:43.921°25.1'N143°14.2'E 229.1° 0.4078°
Greatest EclipseGreatest15:04:47.315:03:10.921°21.4'N136°06.8'E 194.9° 0.3371°
Total EndsU315:33:59.515:32:23.221°17.7'N129°03.1'E 160.8° 0.4067°
Partial EndsU416:52:44.316:51:07.921°07.6'N110°00.4'E 126.7° 0.9069°
Penumbral EndsP418:05:31.618:03:55.220°58.1'N092°24.1'E 118.4° 1.4497°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)06h01m37.4s
Partial (U4 - U1)03h35m58.9s
Total (U3 - U2)00h58m39.3s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 2066 Jan 11

Polynomial Besselian Elements
2066 Jan 11 at 15:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.12253 -0.31620 -0.3785 1.20022 0.65811 0.24910
1 0.45195 -0.11993 0.0001 0.00025 0.00025 0.00007
2 0.00010 -0.00015 0.0000 0.00000 0.00000 0.00000
3 -0.00000 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 15.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Total Lunar Eclipse of 2066 Jan 11

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 2066 Jan 11 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 96.4 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
