Penumbral Lunar Eclipse of 2070 Apr 25

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction


The Penumbral Lunar Eclipse of 2070 Apr 25 is visible from the following geographic regions:

  • eastern Asia, Australia, Americas

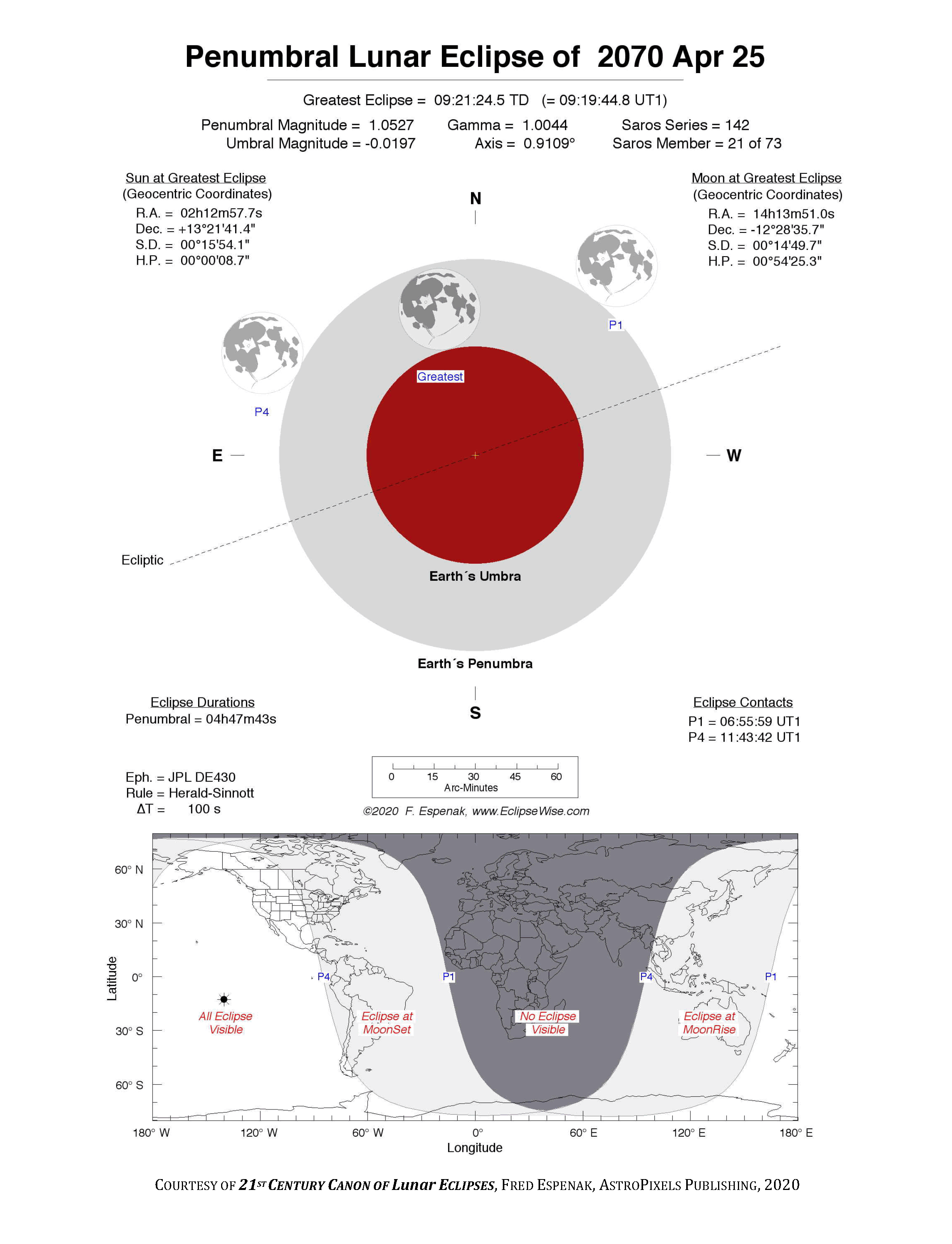

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2070 Apr 25 at 09:21:25 TD (09:19:45 UT1). This is 2.9 days before the Moon reaches apogee. During the eclipse, the Moon is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1822.

The eclipse belongs to Saros 142 and is number 21 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This very deep penumbral eclipse is a rare total penumbral eclipse in which the entire disk of the Moon is immersed in the penumbral shadow. It has a penumbral eclipse magnitude of 1.0527 and a penumbral eclipse duration of 287.7 minutes. Gamma has a value of 1.0044.

The penumbral lunar eclipse of 2070 Apr 25 is preceded two weeks earlier by a total solar eclipse on 2070 Apr 11.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 99.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 2070 Apr 25 .


Eclipse Data: Penumbral Lunar Eclipse of 2070 Apr 25

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 1.05273
Umbral Magnitude-0.01968
Gamma 1.00442
Epsilon 0.9109°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2070 Apr 25 at 09:21:24.5 TD (09:19:44.8 UT1) 2477226.888713
Ecliptic Opposition 2070 Apr 25 at 09:33:09.5 TD (09:31:29.7 UT1) 2477226.896872
Equatorial Opposition 2070 Apr 25 at 08:52:23.4 TD (08:50:43.7 UT1) 2477226.868561
Geocentric Coordinates of Sun and Moon
2070 Apr 25 at 09:21:24.5 TD (09:19:44.8 UT1)
Coordinate Sun Moon
Right Ascension02h12m57.7s14h13m51.0s
Declination+13°21'41.4"-12°28'35.7"
Semi-Diameter 15'54.1" 14'49.7"
Eq. Hor. Parallax 08.7" 0°54'25.3"
Geocentric Libration of Moon
Angle Value
l 2.3°
b -1.2°
c 20.9°
Earth's Shadows
Parameter Value
Penumbral Radius 1.1869°
Umbral Radius 0.6568°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 99.7 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 142 (21/73)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 2070 Apr 25

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP106:57:38.306:55:58.612°10.8'S105°22.4'W 323.3° 1.4327°
Greatest EclipseGreatest09:21:24.509:19:44.812°28.6'S140°13.3'W 13.8° 0.9109°
Penumbral EndsP411:45:21.511:43:41.712°46.1'S175°06.6'W 64.3° 1.4329°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)04h47m43.1s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 2070 Apr 25

Polynomial Besselian Elements
2070 Apr 25 at 09:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.05683 0.92393 0.2331 1.18692 0.65685 0.24716
1 0.44804 -0.10975 0.0002 -0.00019 -0.00018 -0.00005
2 -0.00008 0.00006 -0.0000 0.00000 0.00000 0.00000
3 -0.00000 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 9.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Penumbral Lunar Eclipse of 2070 Apr 25

Links to Additional Lunar Eclipse Information

Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of 2070 Apr 25 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 99.7 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
