Saros 111

Panorama of Lunar Eclipses of Saros 111

Fred Espenak

Introduction

A lunar eclipse occurs whenever the Moon passes through Earth's shadow. At least two lunar eclipses and as many as five occur every year.

The periodicity and recurrence of lunar eclipses is governed by the Saros cycle, a period of approximately 6,585.3 days (18 years 11 days 8 hours). When two eclipses are separated by a period of one Saros, they share a very similar geometry. The two eclipses occur at the same node with the Moon at nearly the same distance from Earth and the same time of year due to a harmonic in three cycles of the Moon's orbit. Thus, the Saros is useful for organizing eclipses into families or series. Each series typically lasts 12 to 15 centuries and contains about 70 to 80 eclipses. Every saros series begins with a number of penumbral lunar eclipses. The series will then produce several dozen partial eclipses, followed by several dozen total eclipses. The later portion of the series produces another set of partial eclipses before ending with a final group of penumbral eclipses. The exact numbers vary from one series to the next, but the overall sequence remains the same. For more information, see Periodicity of Lunar Eclipses.

Panorama of Lunar Eclipses of Saros 111

A panorama of all lunar eclipses belonging to Saros 111 is presented here. Each figure shows the Moon's path with respect to Earth's penumbral and umbral shadows. Below the path is a map depicting the geographic region of visibility for the eclipse. The date and time are given for the instant of Greatest Eclipse. Every figure serves as a hyperlink to the EclipseWise Prime page for that eclipse with a larger figure and complete details for the eclipse. Visit the Key to Lunar Eclipse Figures for a detailed explanation of these diagrams. Near the bottom of this page are a series of hyperlinks for more on lunar eclipses.

The exeligmos is a period of three Saros cycles and is equal to approximately 54 years 33 days. Because it is nearly an integral number of days in length, two eclipses separated by 1 exeligmos (= 3 Saroses) not only share all the characterists of a Saros, but also take place in approximately the same geographic location.

The Saros panorama below is arranged in horizontal rows of 3 eclipses. So one eclipse to the left or right is a difference of 1 Saros cycle, and one eclipse above or below is a difference of 1 exeligmos. By scanning a column of the table, it reveals how the geographic visibility of eclipses separated by an exeligmos slowly changes.

  • Click on any figure to go directly to the EclipseWise Prime Page for more information, tables, diagrams and maps. Key to Lunar Eclipse Figures explains the features in these diagrams.

For more information on this series see Statistics for Lunar Eclipses of Saros 111 .

Panorama of Lunar Eclipses of Saros 111
Penumbral Lunar Eclipse
0830 Jun 10

Penumbral Lunar Eclipse
0848 Jun 20

Penumbral Lunar Eclipse
0866 Jul 01

Penumbral Lunar Eclipse
0884 Jul 12

Penumbral Lunar Eclipse
0902 Jul 23

Penumbral Lunar Eclipse
0920 Aug 02

Penumbral Lunar Eclipse
0938 Aug 13

Penumbral Lunar Eclipse
0956 Aug 24

Penumbral Lunar Eclipse
0974 Sep 04

Partial Lunar Eclipse
0992 Sep 14

Partial Lunar Eclipse
1010 Sep 26

Partial Lunar Eclipse
1028 Oct 06

Partial Lunar Eclipse
1046 Oct 17

Partial Lunar Eclipse
1064 Oct 28

Partial Lunar Eclipse
1082 Nov 08

Partial Lunar Eclipse
1100 Nov 18

Partial Lunar Eclipse
1118 Nov 30

Partial Lunar Eclipse
1136 Dec 10

Partial Lunar Eclipse
1154 Dec 21

Partial Lunar Eclipse
1173 Jan 01

Partial Lunar Eclipse
1191 Jan 12

Partial Lunar Eclipse
1209 Jan 22

Partial Lunar Eclipse
1227 Feb 03

Partial Lunar Eclipse
1245 Feb 13

Partial Lunar Eclipse
1263 Feb 24

Partial Lunar Eclipse
1281 Mar 07

Partial Lunar Eclipse
1299 Mar 18

Partial Lunar Eclipse
1317 Mar 28

Partial Lunar Eclipse
1335 Apr 08

Total Lunar Eclipse
1353 Apr 19

Total Lunar Eclipse
1371 Apr 30

Total Lunar Eclipse
1389 May 10

Total Lunar Eclipse
1407 May 22

Total Lunar Eclipse
1425 Jun 01

Total Lunar Eclipse
1443 Jun 12

Total Lunar Eclipse
1461 Jun 22

Total Lunar Eclipse
1479 Jul 04

Total Lunar Eclipse
1497 Jul 14

Total Lunar Eclipse
1515 Jul 25

Total Lunar Eclipse
1533 Aug 04

Partial Lunar Eclipse
1551 Aug 16

Partial Lunar Eclipse
1569 Aug 26

Partial Lunar Eclipse
1587 Sep 16

Partial Lunar Eclipse

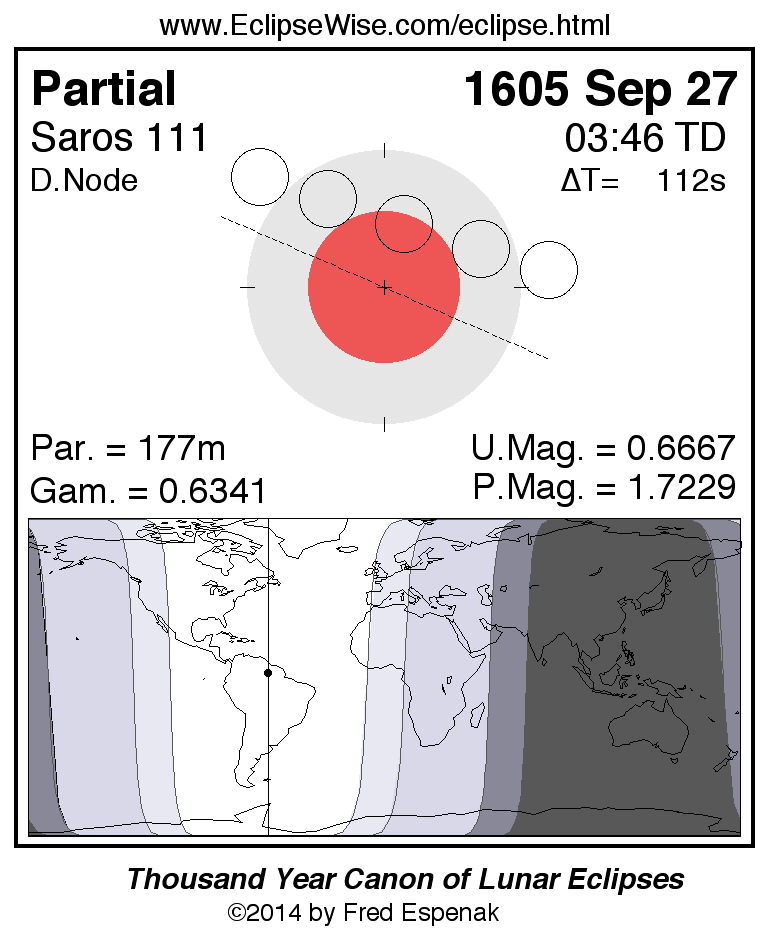

1605 Sep 27

Partial Lunar Eclipse
1623 Oct 08

Partial Lunar Eclipse
1641 Oct 18

Partial Lunar Eclipse
1659 Oct 30

Partial Lunar Eclipse
1677 Nov 09

Partial Lunar Eclipse
1695 Nov 20

Partial Lunar Eclipse
1713 Dec 02

Partial Lunar Eclipse

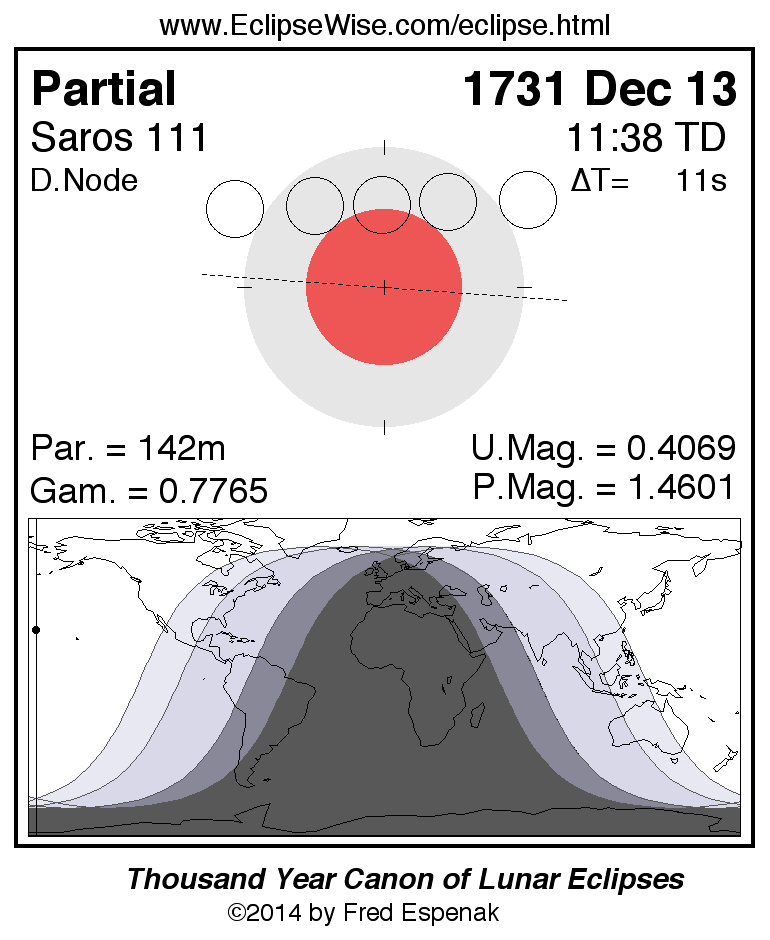

1731 Dec 13

Partial Lunar Eclipse

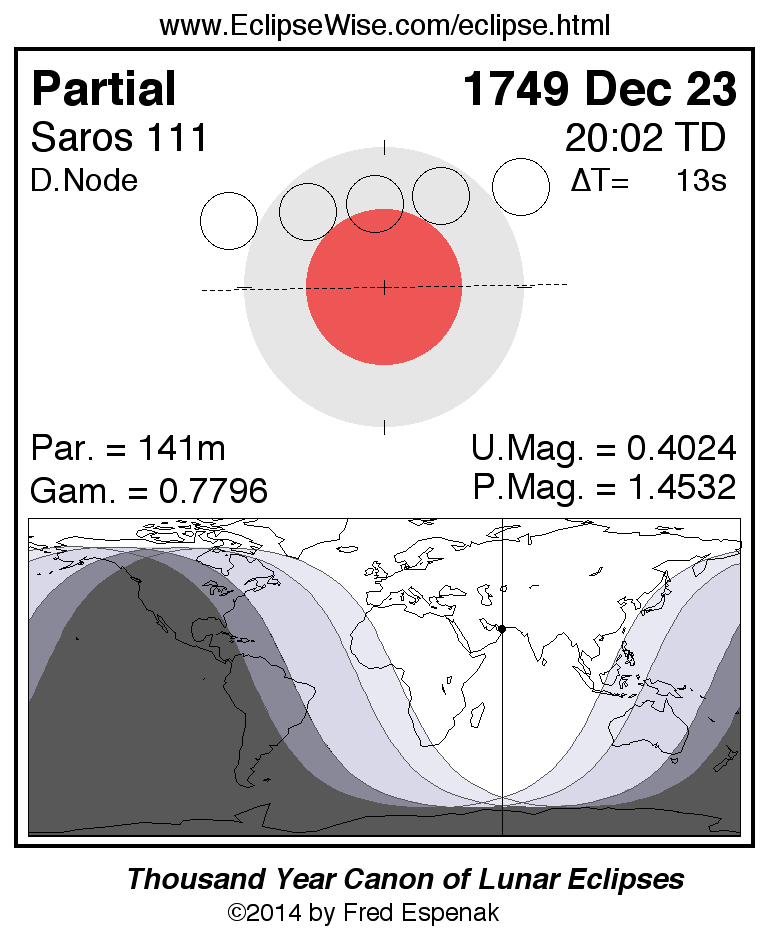

1749 Dec 23

Partial Lunar Eclipse

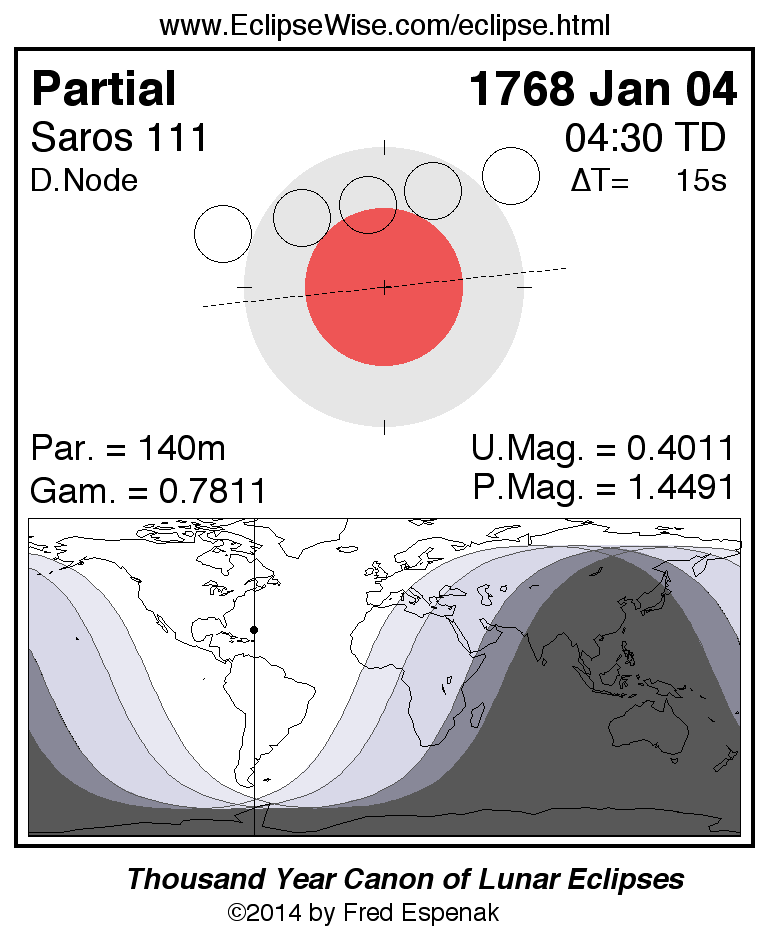

1768 Jan 04

Partial Lunar Eclipse
1786 Jan 14

Partial Lunar Eclipse
1804 Jan 26

Partial Lunar Eclipse

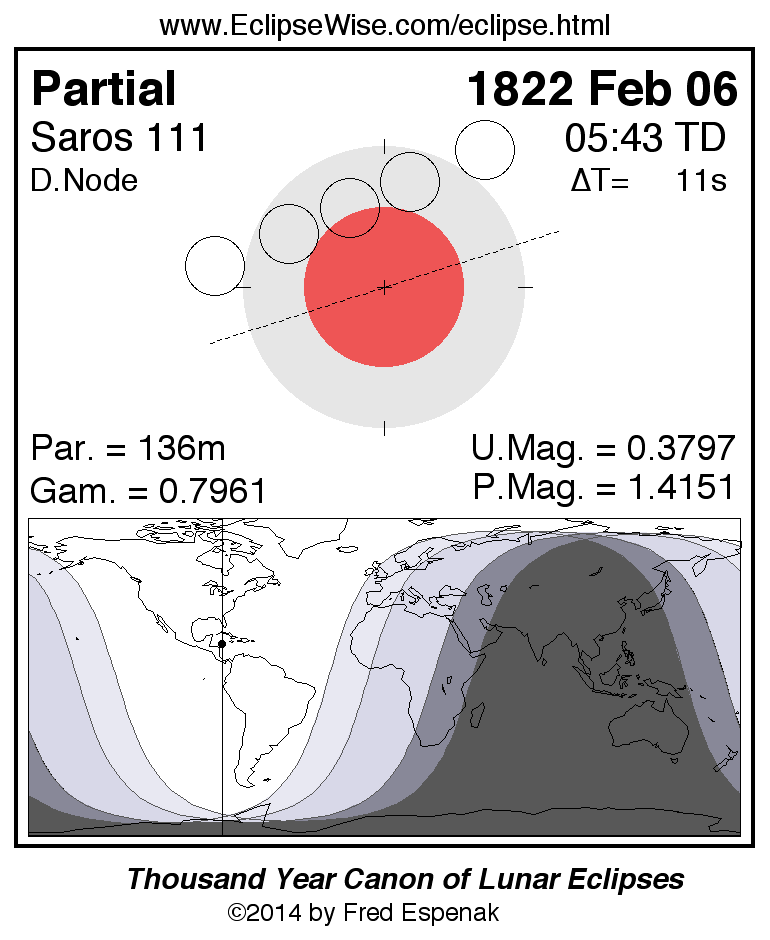

1822 Feb 06

Partial Lunar Eclipse
1840 Feb 17

Partial Lunar Eclipse

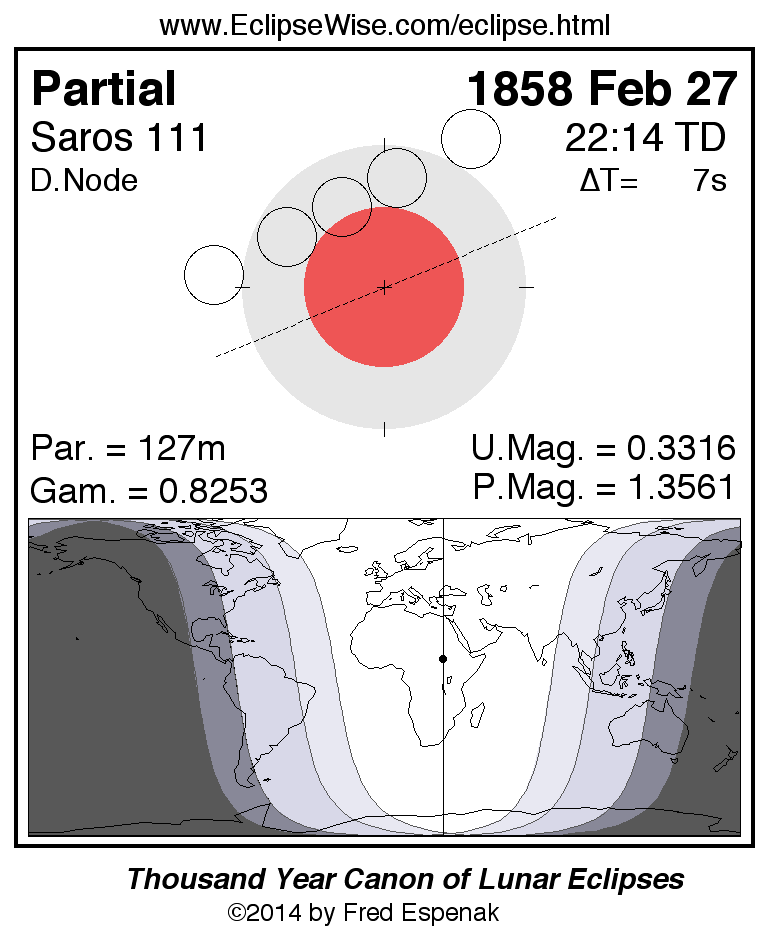

1858 Feb 27

Partial Lunar Eclipse

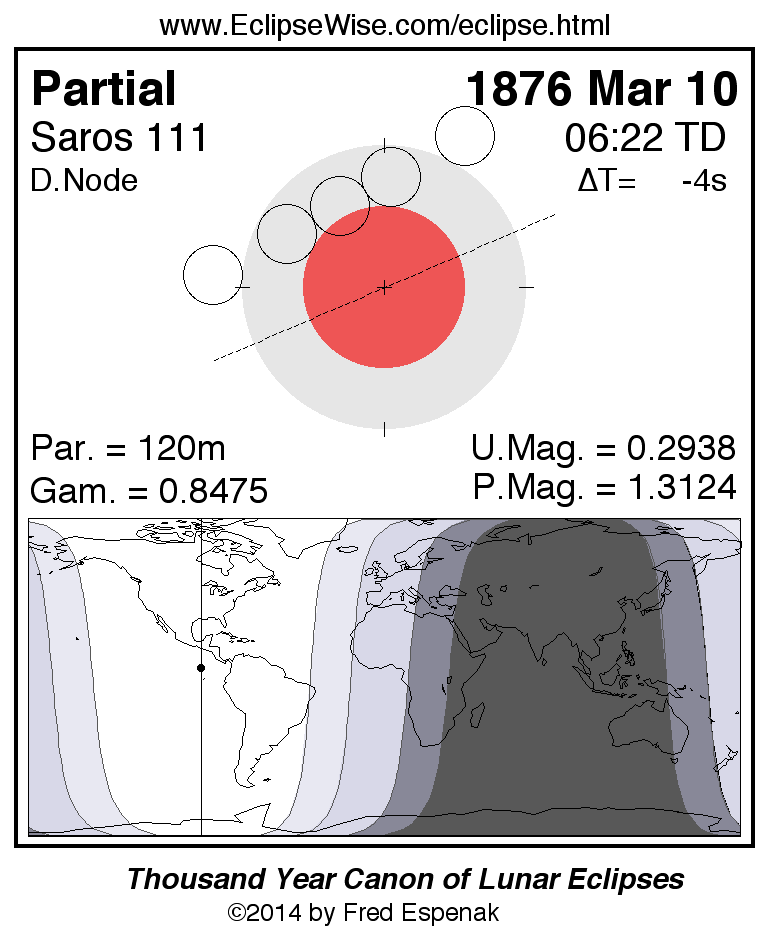

1876 Mar 10

Partial Lunar Eclipse
1894 Mar 21

Partial Lunar Eclipse
1912 Apr 01

Partial Lunar Eclipse
1930 Apr 13

Partial Lunar Eclipse
1948 Apr 23

Penumbral Lunar Eclipse
1966 May 04

Penumbral Lunar Eclipse
1984 May 15

Penumbral Lunar Eclipse
2002 May 26

Penumbral Lunar Eclipse
2020 Jun 05

Penumbral Lunar Eclipse
2038 Jun 17

Penumbral Lunar Eclipse
2056 Jun 27

Penumbral Lunar Eclipse
2074 Jul 08

Penumbral Lunar Eclipse
2092 Jul 19

Statistics for Lunar Eclipses of Saros 111

Lunar eclipses of Saros 111 all occur at the Moon’s descending node and the Moon moves northward with each eclipse. The series will begin with a penumbral eclipse near the southern edge of the penumbra on 0830 Jun 10. The series will end with a penumbral eclipse near the northern edge of the penumbra on 2092 Jul 19. The total duration of Saros series 111 is 1262.11 years.

Summary of Saros 111
First Eclipse 0830 Jun 10
Last Eclipse 2092 Jul 19
Series Duration 1262.11 Years
No. of Eclipses 71
Sequence 9N 20P 11T 23P 8N

Saros 111 is composed of 71 lunar eclipses as follows:

Lunar Eclipses of Saros 111
Eclipse Type Symbol Number Percent
All Eclipses - 71100.0%
PenumbralN 17 23.9%
PartialP 43 60.6%
TotalT 11 15.5%

The 71 lunar eclipses of Saros 111 occur in the order of 9N 20P 11T 23P 8N which corresponds to the following.

Sequence Order of Lunar Eclipses in Saros 111
Eclipse Type Symbol Number
Penumbral N 9
Partial P 20
Total T 11
Partial P 23
Penumbral N 8

The 71 eclipses in Saros 111 occur in the following order : 9N 20P 11T 23P 8N

The longest and shortest eclipses of Saros 111 as well as largest and smallest partial eclipses appear below.

Extreme Durations and Magnitudes of Lunar Eclipses of Saros 111
Extrema Type Date Duration Magnitude
Longest Total Lunar Eclipse 1443 Jun 1201h46m14s -
Shortest Total Lunar Eclipse 1353 Apr 1900h36m25s -
Longest Partial Lunar Eclipse 1335 Apr 0803h25m04s -
Shortest Partial Lunar Eclipse 1948 Apr 2300h34m24s -
Longest Penumbral Lunar Eclipse 0974 Sep 0404h42m53s -
Shortest Penumbral Lunar Eclipse 0830 Jun 1001h03m01s -
Largest Partial Lunar Eclipse 1551 Aug 16 - 0.97026
Smallest Partial Lunar Eclipse 1948 Apr 23 - 0.02300

Eclipse Publications

by Fred Espenak

jpeg jpeg
jpeg jpeg
jpeg jpeg

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

The eclipse predictions presented here were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates have been calculated with respect to the Moon's Center of Mass.

The largest uncertainty in the eclipse predictions is caused by fluctuations in Earth's rotation due primarily to tidal friction of the Moon. The resultant drift in apparent clock time is expressed as ΔT and is determined as follows:

  1. pre-1950's: ΔT calculated from empirical fits to historical records derived by Morrison and Stephenson (2004)
  2. 1955-present: ΔT obtained from published observations
  3. future: ΔT is extrapolated from current values weighted by the long term trend from tidal effects

A series of polynomial expressions have been derived to simplify the evaluation of ΔT for any time from -2999 to +3000. The uncertainty in ΔT over this period can be estimated from scatter in the measurements.

Acknowledgments

Some of the content on this web site is based on the books Five Millennium Canon of Lunar Eclipses: -1999 to +3000 and Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
