Annular Solar Eclipse of 1086 Aug 12

Fred Espenak

Introduction

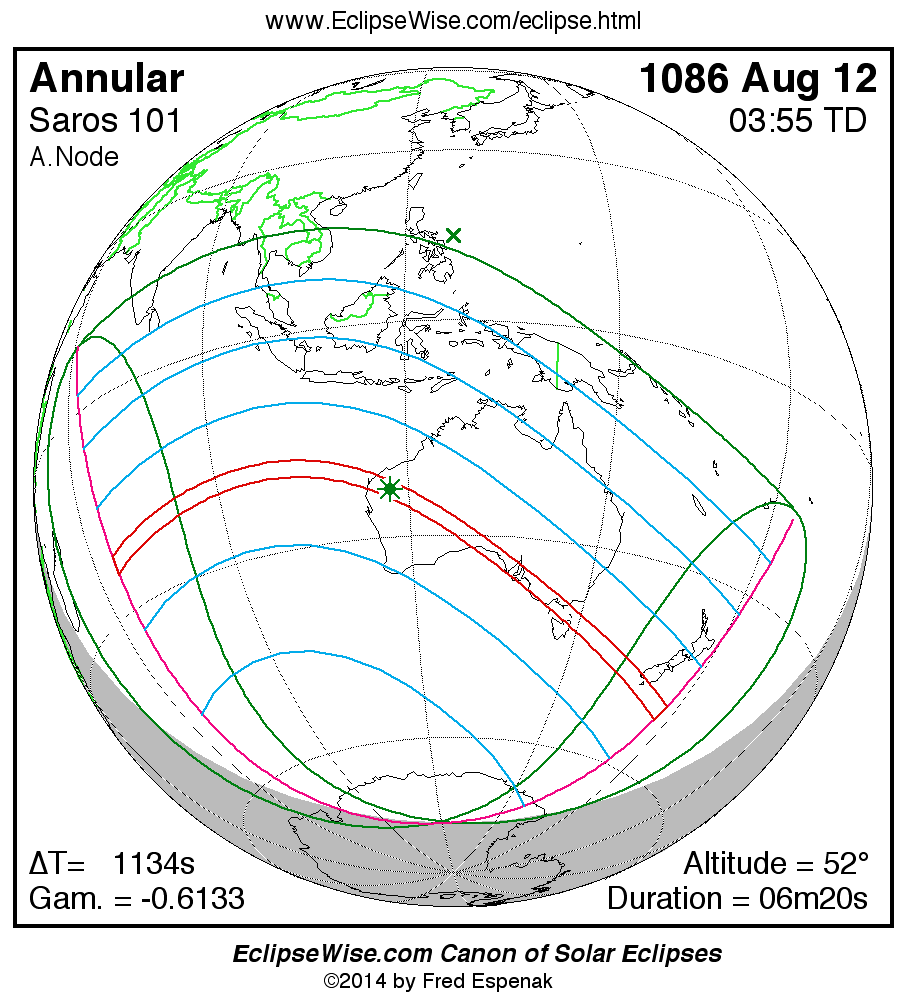

eclipse map


The Annular Solar Eclipse of 1086 Aug 12 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1086 Aug 12 at 03:55:29 TD (03:36:35 UT1). This is 3.2 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -10344.

The eclipse belongs to Saros 101 and is number 43 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1086 Aug 12 is a relatively long annular eclipse with a duration at greatest eclipse of 06m20s. It has an eclipse magnitude of 0.9482.

The annular solar eclipse of 1086 Aug 12 is followed two weeks later by a partial lunar eclipse on 1086 Aug 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1133.8 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1086 Aug 12 .


Eclipse Data: Annular Solar Eclipse of 1086 Aug 12

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94821
Eclipse Obscuration 0.89910
Gamma-0.61334
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1086 Aug 12 at 03:55:28.6 TD (03:36:34.7 UT1) 2117942.650402
Ecliptic Conjunction 1086 Aug 12 at 03:48:16.8 TD (03:29:23.0 UT1) 2117942.645405
Equatorial Conjunction 1086 Aug 12 at 04:13:13.8 TD (03:54:20.0 UT1) 2117942.662731
Geocentric Coordinates of Sun and Moon
1086 Aug 12 at 03:55:28.6 TD (03:36:34.7 UT1)
Coordinate Sun Moon
Right Ascension09h47m32.6s09h46m59.8s
Declination+13°23'48.3"+12°51'25.9"
Semi-Diameter 15'51.0" 14'51.1"
Eq. Hor. Parallax 08.7" 0°54'30.4"
Geocentric Libration of Moon
Angle Value
l 3.2°
b 0.7°
c 21.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 1133.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 101 (43/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1086 Aug 12

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:06:32.500:47:38.609°02.9'S080°57.0'E
Last External ContactP406:44:20.506:25:26.735°58.2'S164°22.6'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:06:01.001:47:07.110°35.7'N061°20.4'E
South Extreme Path Limit 1S105:44:57.905:26:04.116°29.2'S174°53.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1086 Aug 12

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU102:20:07.202:01:13.422°40.1'S066°05.4'E
First Internal ContactU202:25:36.602:06:42.824°16.0'S065°10.4'E
Last Internal ContactU305:25:06.005:06:12.150°48.4'S177°09.4'E
Last External ContactU405:30:39.605:11:45.849°15.0'S176°42.3'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:21:25.502:02:31.722°09.8'S065°37.3'E
South Extreme Path Limit 1S102:24:21.102:05:27.324°45.3'S065°37.8'E
North Extreme Path Limit 2N205:29:20.505:10:26.748°45.6'S177°18.9'E
South Extreme Path Limit 2S205:26:22.005:07:28.151°16.8'S176°32.6'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1086 Aug 12

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C102:22:50.902:03:57.123°26.9'S065°37.7'E
Extreme Central Line Limit 2C205:27:53.705:08:59.950°00.7'S176°56.8'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse03:55:28.603:36:34.723°30.5'S112°34.8'E 52.0° 14.7° 239.1 km06m19.69s
Greatest Duration03:50:49.903:31:56.122°56.7'S116°05.4'E 51.9° 18.5° 240.7 km06m19.90s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1086 Aug 12

Polynomial Besselian Elements
1086 Aug 12 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.10942 -0.60473 13.3972 0.56481 0.01856 239.3410
1 0.49625 -0.12237 -0.0132 0.00007 0.00007 15.0032
2 -0.00002 -0.00005 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046345
Tan ƒ2 0.0046114

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1086 Aug 12

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1086 Aug 12 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1133.8 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
