Solar Eclipse Prime Page

Annular Solar Eclipse of 1604 Apr 29

Fred Espenak

Introduction

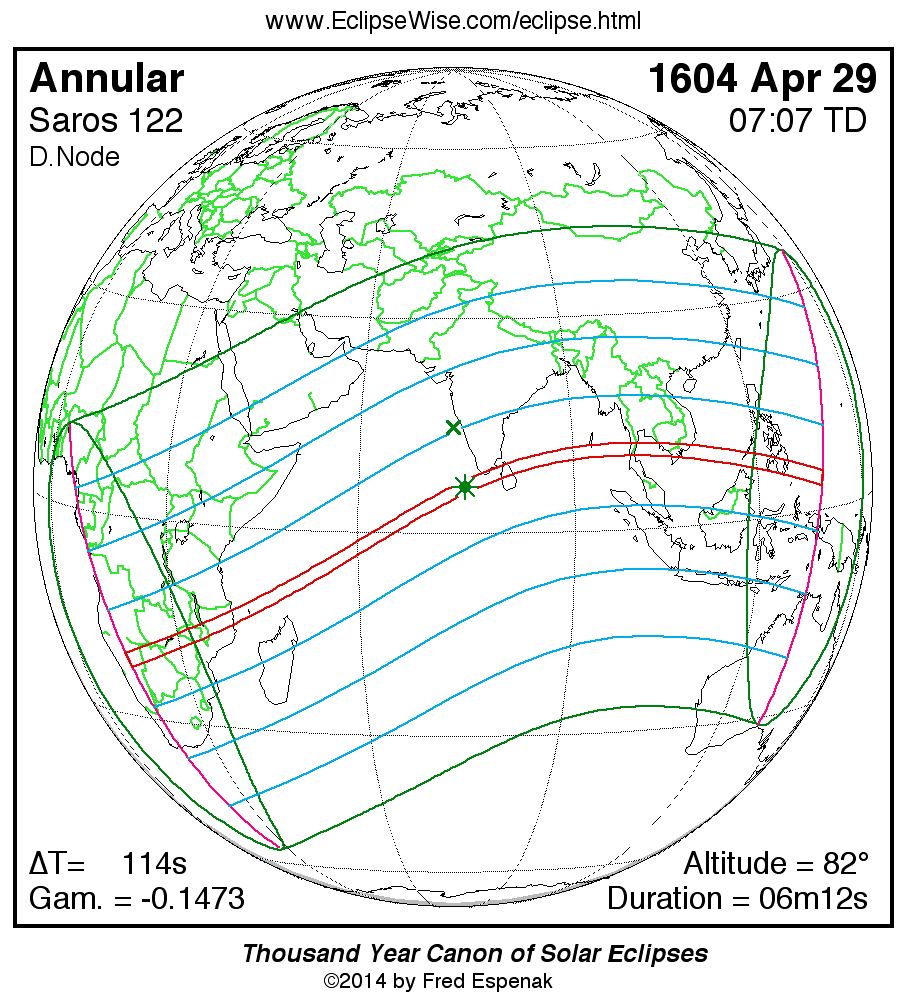

eclipse map

The Annular Solar Eclipse of 1604 Apr 29 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1604 Apr 29 at 07:07:20 TD (07:05:27 UT1). This is 3.4 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of -3941.

The eclipse belongs to Saros 122 and is number 35 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1604 Apr 29 is a relatively long annular eclipse with a duration at greatest eclipse of 06m12s. It has an eclipse magnitude of 0.9525.

The annular solar eclipse of 1604 Apr 29 is preceded two weeks earlier by a penumbral lunar eclipse on 1604 Apr 14, and it is followed two weeks later by a penumbral lunar eclipse on 1604 May 13.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 113.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1604 Apr 29 .

Eclipse Data: Annular Solar Eclipse of 1604 Apr 29

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.95249
Eclipse Obscuration 0.90724
Gamma-0.14737
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1604 Apr 29 at 07:07:20.2 TD (07:05:26.7 UT1) 2307027.795448
Ecliptic Conjunction 1604 Apr 29 at 07:09:04.5 TD (07:07:11.0 UT1) 2307027.796655
Equatorial Conjunction 1604 Apr 29 at 07:03:23.1 TD (07:01:29.6 UT1) 2307027.792703
Geocentric Coordinates of Sun and Moon
1604 Apr 29 at 07:07:20.2 TD (07:05:26.7 UT1)
Coordinate Sun Moon
Right Ascension02h26m47.9s02h26m55.3s
Declination+14°33'31.6"+14°25'42.4"
Semi-Diameter 15'51.1" 14'52.3"
Eq. Hor. Parallax 08.7" 0°54'34.9"
Geocentric Libration of Moon
Angle Value
l -3.3°
b 0.2°
c -20.2°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 113.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 122 (35/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1604 Apr 29

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP104:04:49.304:02:55.717°49.3'S033°17.1'E
First Internal ContactP206:19:25.606:17:32.131°42.2'S004°04.6'E
Last Internal ContactP307:55:22.207:53:28.606°42.7'S149°06.5'E
Last External ContactP410:09:48.510:07:55.007°15.6'N119°08.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N105:27:50.305:25:56.811°14.3'N004°47.8'E
South Extreme Path Limit 1S105:38:26.405:36:32.955°29.4'S027°15.8'E
North Extreme Path Limit 2N208:46:39.608:44:46.136°06.2'N148°58.3'E
South Extreme Path Limit 2S208:36:33.408:34:39.831°18.4'S131°27.7'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1604 Apr 29

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU105:09:18.505:07:25.020°38.4'S017°59.3'E
First Internal ContactU205:13:38.605:11:45.120°56.5'S016°59.7'E
Last Internal ContactU309:01:06.208:59:12.604°07.8'N135°30.1'E
Last External ContactU409:05:22.209:03:28.604°25.8'N134°30.7'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N105:11:26.705:09:33.219°46.2'S017°11.8'E
South Extreme Path Limit 1S105:11:32.205:09:38.721°48.3'S017°46.8'E
North Extreme Path Limit 2N209:03:15.609:01:22.105°17.3'N135°15.9'E
South Extreme Path Limit 2S209:03:11.009:01:17.503°16.5'N134°45.4'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1604 Apr 29

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C105:11:28.505:09:35.020°47.2'S017°29.4'E
Extreme Central Line Limit 2C209:03:14.209:01:20.704°17.0'N135°00.4'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse07:07:20.207:05:26.706°20.0'N074°17.5'E 81.6° 347.4° 175.6 km06m11.55s
Greatest Duration07:15:26.307:13:32.807°10.0'N076°38.7'E 80.7° 322.9° 176.0 km06m12.10s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1604 Apr 29

Polynomial Besselian Elements
1604 Apr 29 at 07:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.02816 -0.15763 14.5576 0.56444 0.01819 285.7685
1 0.49910 0.11424 0.0126 -0.00007 -0.00007 15.0028
2 0.00003 -0.00007 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046347
Tan ƒ2 0.0046117

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 7.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1604 Apr 29

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1604 Apr 29 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 113.5 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
