Annular Solar Eclipse of 2035 Mar 09

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Annular Solar Eclipse of 2035 Mar 09 is visible from the following geographic regions:

  • Partial Eclipse: Australia, New Zealand, south Pacific, Mexico, Antarctica
  • Annular Eclipse: New Zealand, Pacific

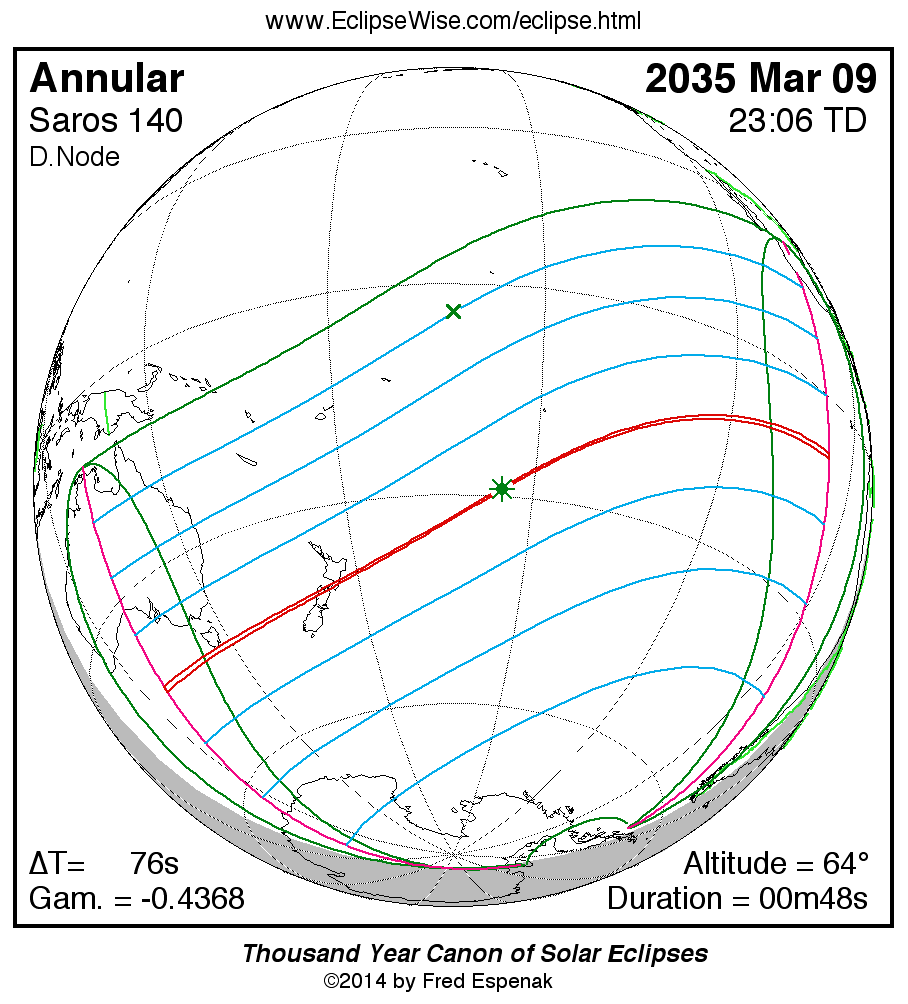

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2035 Mar 09 at 23:05:54 TD (23:04:37 UT1). This is 5.1 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1388.

The eclipse belongs to Saros 140 and is number 30 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2035 Mar 09 is preceded two weeks earlier by a penumbral lunar eclipse on 2035 Feb 22.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 76.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Annular Solar Eclipse of 2035 Mar 09 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth.

The Moon's antumbral shadow appears as a small black disk and tracks along the path of annularity (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while an annular eclipse is visible inside the antumbra. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

The map to the right shows a single frame from the medium size animation for the Annular Solar Eclipse of 2035 Mar 09 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of annularity. To the lower right is the credit for the animation.

Animations for the Annular Solar Eclipse of 2035 Mar 09 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Annular Solar Eclipse of 2035 Mar 09

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.99191
Eclipse Obscuration 0.98388
Gamma-0.43679
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2035 Mar 09 at 23:05:53.6 TD (23:04:37.4 UT1) 2464396.461544
Ecliptic Conjunction 2035 Mar 09 at 23:10:39.6 TD (23:09:23.4 UT1) 2464396.464854
Equatorial Conjunction 2035 Mar 09 at 22:50:50.5 TD (22:49:34.3 UT1) 2464396.451091
Geocentric Coordinates of Sun and Moon
2035 Mar 09 at 23:05:53.6 TD (23:04:37.4 UT1)
Coordinate Sun Moon
Right Ascension23h20m17.6s23h20m47.9s
Declination-04°16'22.2"-04°40'23.8"
Semi-Diameter 16'06.5" 15'44.9"
Eq. Hor. Parallax 08.9" 0°57'47.9"
Geocentric Libration of Moon
Angle Value
l -5.2°
b 0.5°
c -24.6°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 76.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 140 (30/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2035 Mar 09

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP120:22:04.120:20:47.933°47.9'S144°31.2'E
First Internal ContactP222:57:05.122:55:48.981°50.2'S039°56.9'W
Last Internal ContactP323:15:08.323:13:52.161°34.4'S067°56.2'W
Last External ContactP401:49:43.701:48:27.501°04.3'N114°36.2'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:14:18.021:13:01.910°47.2'S133°32.0'E
South Extreme Path Limit 1S122:52:52.922:51:36.778°47.4'S048°08.2'W
North Extreme Path Limit 2N200:57:21.400:56:05.324°05.8'N103°19.7'W
South Extreme Path Limit 2S223:19:24.723:18:08.565°12.2'S067°38.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2035 Mar 09

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU121:26:19.221:25:03.043°11.2'S127°18.2'E
First Internal ContactU221:27:56.521:26:40.343°33.3'S126°50.7'E
Last Internal ContactU300:44:04.100:42:47.908°42.2'S097°27.0'W
Last External ContactU400:45:35.200:44:19.008°21.4'S097°51.4'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:26:45.121:25:28.942°57.0'S127°13.7'E
South Extreme Path Limit 1S121:27:30.721:26:14.543°47.4'S126°55.1'E
North Extreme Path Limit 2N200:45:10.800:43:54.608°07.9'S097°46.3'W
South Extreme Path Limit 2S200:44:28.400:43:12.208°55.6'S097°32.1'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2035 Mar 09

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C121:27:07.821:25:51.643°22.2'S127°04.5'E
Extreme Central Line Limit 2C200:44:49.700:43:33.508°31.7'S097°39.2'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse23:05:53.623:04:37.429°02.6'S154°58.1'W 63.9° 340.2° 31.5 km00m47.54s
Greatest Duration21:27:07.821:25:51.643°22.2'S127°04.5'E 0.0° 95.9° 95.5 km01m25.89s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2035 Mar 09

Polynomial Besselian Elements
2035 Mar 09 at 23:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.07947 -0.43283 -4.2734 0.55264 0.00645 162.3962
1 0.52057 0.16309 0.0159 -0.00012 -0.00012 15.0039
2 0.00000 0.00005 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047095
Tan ƒ2 0.0046860

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements
