Solar Eclipse Prime Page

Total Solar Eclipse of 2059 May 11

Fred Espenak

Key to Solar Eclipse Figure (below)

Introduction


The Total Solar Eclipse of 2059 May 11 is visible from the following geographic regions:

  • Partial Eclipse: North America, Central America, South America
  • Total Eclipse: Central Pacific, Ecuador, Peru, Brazil

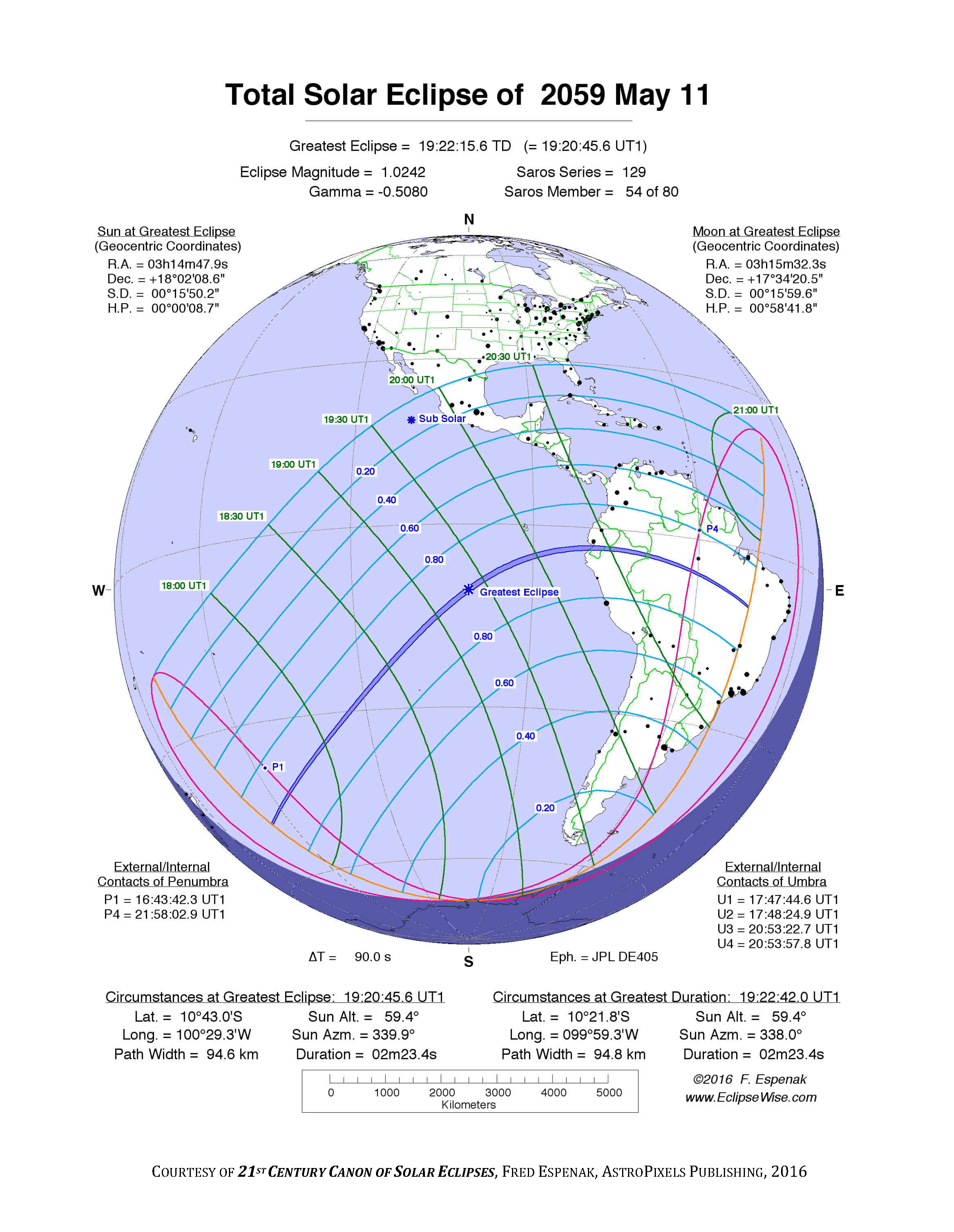

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2059 May 11 at 19:22:16 TD (19:20:46 UT1). This is 3.5 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1687.

The eclipse belongs to Saros 129 and is number 54 of 80 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2059 May 11 is followed two weeks later by a partial lunar eclipse on 2059 May 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 90.0 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Global Map Animation of Solar Eclipse

Michael Zeiler GreatAmericanEclipse.com and
Fred Espenak EclipseWise.com have created a series of eclipse animations - one for every solar eclipse during the 21st Century.

The animation of the Total Solar Eclipse of 2059 May 11 shows the path of the Moon's shadows as they sweep across a global map of Earth (an orthographic projection). The vantage point of the animation is as seen from the Moon. The daylight hemisphere of Earth then faces the Moon and the lunar shadows appear perfectly circular with no distorted projection effects as they race across Earth. Another consequence of this viewing geometry is that the Moon's shadows move across the disk of Earth in a straight line.

The Moon's umbral shadow appears as a small black disk and tracks along the path of totality (yellow strip). The much larger penumbral shadow is lightly shaded and is outlined with a solid black edge. A partial eclipse is visible from within the penumbra, while a total eclipse is visible inside the umbra.

The map to the right shows a single frame from the medium size animation for the Total Solar Eclipse of 2059 May 11 . In the upper left corner is the type of eclipse and the eclipse date. To the upper right is the Universal Time. The lower left corner displays the instantaneous duration of totality. To the lower right is the credit for the animation.

Animations for the Total Solar Eclipse of 2059 May 11 are available in three sizes/resolutions: small, medium, and large. They can be viewed through the following links:


Creative Commons License
These animations may be freely used and shared through Creative Commons.
You may use and distribute these eclipse animations as long as they are not modified and you include an attribution.
Solar Eclipse Global Animation by Fred Espenak and Michael Zeiler is licensed under a Creative Commons Attribution-NoDerivatives 4.0 International License. Based on work at EclipseWise.com and GreatAmericanEclipse.com

Attribution: "Global Map Animation of Eclipse courtesy of Michael Zeiler (GreatAmericanEclipse.com) and Fred Espenak (EclipseWise.com)".

Eclipse Data: Total Solar Eclipse of 2059 May 11

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.02418
Eclipse Obscuration 1.04894
Gamma-0.50795
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2059 May 11 at 19:22:15.6 TD (19:20:45.6 UT1) 2473225.306083
Ecliptic Conjunction 2059 May 11 at 19:16:52.0 TD (19:15:22.1 UT1) 2473225.302339
Equatorial Conjunction 2059 May 11 at 19:01:24.2 TD (18:59:54.2 UT1) 2473225.291599
Geocentric Coordinates of Sun and Moon
2059 May 11 at 19:22:15.6 TD (19:20:45.6 UT1)
Coordinate Sun Moon
Right Ascension03h14m47.9s03h15m32.3s
Declination+18°02'08.6"+17°34'20.5"
Semi-Diameter 15'50.2" 15'59.6"
Eq. Hor. Parallax 08.7" 0°58'41.8"
Geocentric Libration of Moon
Angle Value
l 4.5°
b 0.6°
c -13.6°
Prediction Parameters
Paramater Value
Ephemerides JPL DE405
ΔT 90.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 129 (54/80)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2059 May 11

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP116:45:12.316:43:42.337°55.6'S147°08.5'W
Last External ContactP421:59:32.921:58:02.901°32.0'N059°54.6'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:42:48.117:41:18.218°15.8'S170°03.3'W
South Extreme Path Limit 1S121:01:42.721:00:12.721°30.7'N038°34.1'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2059 May 11

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU117:49:14.517:47:44.648°06.6'S156°33.6'W
First Internal ContactU217:49:54.917:48:24.948°16.3'S156°36.1'W
Last Internal ContactU320:54:52.720:53:22.709°21.4'S047°19.2'W
Last External ContactU420:55:27.820:53:57.809°12.4'S047°24.9'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:49:26.917:47:56.948°02.0'S156°40.3'W
South Extreme Path Limit 1S117:49:42.717:48:12.748°20.8'S156°29.5'W
North Extreme Path Limit 2N220:55:17.020:53:47.009°08.1'S047°20.8'W
South Extreme Path Limit 2S220:55:03.420:53:33.409°25.7'S047°23.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2059 May 11

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C117:49:34.717:48:04.748°11.4'S156°34.9'W
Extreme Central Line Limit 2C220:55:10.220:53:40.309°16.9'S047°22.1'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse19:22:15.619:20:45.610°43.0'S100°29.3'W 59.4° 339.9° 94.6 km02m23.39s
Greatest Duration19:24:12.019:22:42.010°21.8'S099°59.3'W 59.4° 338.0° 94.8 km02m23.43s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2059 May 11

Polynomial Besselian Elements
2059 May 11 at 19:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.01215 -0.54814 18.0331 0.54362 -0.00252 105.8947
1 0.51977 0.19790 0.0101 0.00012 0.00012 15.0015
2 0.00003 -0.00009 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046297
Tan ƒ2 0.0046067

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Polynomial Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing

Links for the Total Solar Eclipse of 2059 May 11

Links to Additional Solar Eclipse Information

  • Home - home page of EclipseWise with predictions for both solar and lunar eclipses

Decade Tables of Solar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Solar Eclipse Publications

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg jpeg

For more visit: AstroPixels Publishing

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2059 May 11 were generated using the JPL DE405 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 90.0 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the books 21st Century Canon of Solar Eclipses and Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or concealed.
