Solar Eclipse Prime Page

Total Solar Eclipse of 2523 Jun 15

Fred Espenak

Introduction

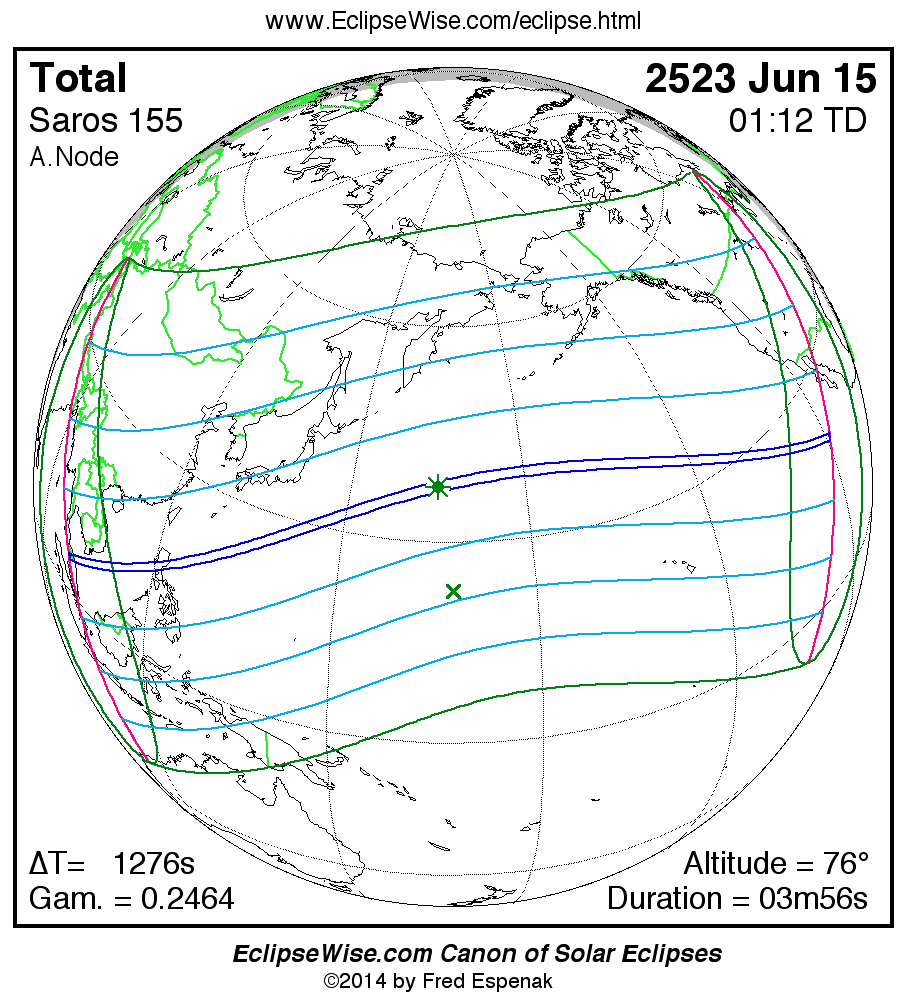

eclipse map


The Total Solar Eclipse of 2523 Jun 15 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2523 Jun 15 at 01:12:28 TD (00:51:13 UT1). This is 2.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 7427.

The eclipse belongs to Saros 155 and is number 34 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2523 Jun 15 is preceded two weeks earlier by a penumbral lunar eclipse on 2523 May 30.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1275.6 seconds for this eclipse. The uncertainty in ΔT is 319.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.33°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2523 Jun 15 .


Eclipse Data: Total Solar Eclipse of 2523 Jun 15

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.04533
Eclipse Obscuration 1.09270
Gamma 0.24635
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2523 Jun 15 at 01:12:28.4 TD (00:51:12.8 UT1) 2642731.535564
Ecliptic Conjunction 2523 Jun 15 at 01:15:03.4 TD (00:53:47.8 UT1) 2642731.537359
Equatorial Conjunction 2523 Jun 15 at 01:16:16.8 TD (00:55:01.2 UT1) 2642731.538208
Geocentric Coordinates of Sun and Moon
2523 Jun 15 at 01:12:28.4 TD (00:51:12.8 UT1)
Coordinate Sun Moon
Right Ascension05h33m20.1s05h33m10.9s
Declination+23°13'49.1"+23°28'17.5"
Semi-Diameter 15'45.9" 16'13.0"
Eq. Hor. Parallax 08.7" 0°59'31.0"
Geocentric Libration of Moon
Angle Value
l -4.2°
b -0.3°
c -1.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 1275.6 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 155 (34/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2523 Jun 15

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP122:31:10.422:09:54.800°48.8'N117°31.9'E
First Internal ContactP200:31:08.200:09:52.622°05.0'N077°51.8'E
Last Internal ContactP301:53:44.001:32:28.436°54.1'N093°57.2'W
Last External ContactP403:53:39.703:32:24.116°04.8'N135°37.7'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N100:12:11.423:50:55.839°12.1'N072°08.3'E
South Extreme Path Limit 1S123:20:10.122:58:54.522°46.1'S116°00.6'E
North Extreme Path Limit 2N202:12:37.201:51:21.652°45.5'N083°05.9'W
South Extreme Path Limit 2S203:04:48.702:43:33.107°33.7'S133°47.5'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2523 Jun 15

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU123:28:46.723:07:31.105°23.9'N101°09.3'E
First Internal ContactU223:30:22.223:09:06.605°35.7'N100°40.4'E
Last Internal ContactU302:54:29.102:33:13.520°48.8'N118°33.1'W
Last External ContactU402:56:09.202:34:53.620°36.6'N119°04.2'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:29:54.123:08:38.505°53.2'N100°39.8'E
South Extreme Path Limit 1S123:29:15.323:07:59.705°06.3'N101°09.8'E
North Extreme Path Limit 2N202:54:58.502:33:42.921°06.9'N118°31.4'W
South Extreme Path Limit 2S202:55:39.302:34:23.720°18.4'N119°05.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2523 Jun 15

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C123:29:34.523:08:18.905°29.8'N100°54.9'E
Extreme Central Line Limit 2C202:55:19.202:34:03.620°42.6'N118°48.7'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse01:12:28.400:51:12.837°31.5'N159°40.0'E 75.5° 170.5° 156.0 km03m55.60s
Greatest Duration01:16:18.000:55:02.437°51.1'N166°36.9'E 75.4° 180.1° 155.9 km03m55.78s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2523 Jun 15

Polynomial Besselian Elements
2523 Jun 15 at 01:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.15176 0.22685 23.2294 0.53874 -0.00738 194.6531
1 0.55933 0.08150 0.0016 -0.00010 -0.00010 14.9991
2 0.00005 -0.00017 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046086
Tan ƒ2 0.0045856

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 1.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2523 Jun 15

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2523 Jun 15 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1275.6 seconds for this eclipse. The uncertainty in ΔT is 319.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.33°.
