Total Lunar Eclipse of -0543 Mar 13 (0544 Mar 13 BCE)

Fred Espenak

Introduction

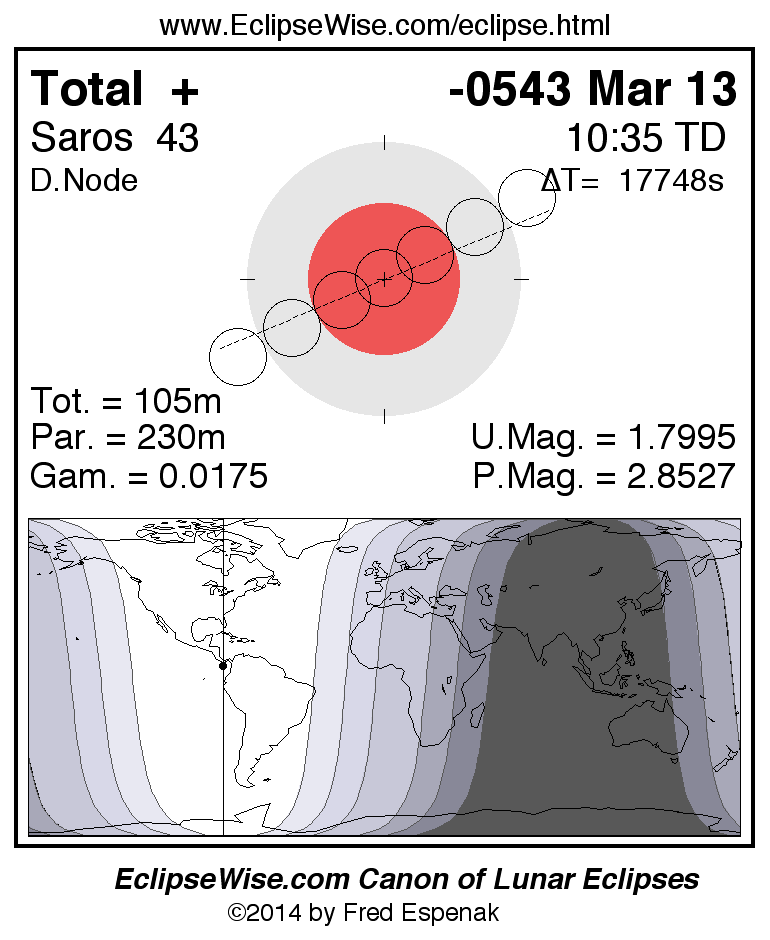

The Total Lunar Eclipse of -0543 Mar 13 (0544 Mar 13 BCE) is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on -0543 Mar 13 at 10:34:35 TD (05:38:49 UT1). This is 4.9 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -30498.

The eclipse belongs to Saros 43 and is number 53 of 87 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This total eclipse is central meaning the Moon’s disk actually passes through the axis of Earth’s umbral shadow. It has an umbral eclipse magnitude of 1.7995, and Gamma has a value of 0.0175. Because they are so deep, such eclipses typically have the longest total phases. In this case, the duration of totality lasts 104.5 minutes. That qualifies the eclipse as a member of a select class of exceptionally long total eclipses with durations exceeding 100 minutes.

The total lunar eclipse of -0543 Mar 13 is preceded two weeks earlier by a partial solar eclipse on -0543 Feb 26, and it is followed two weeks later by a partial solar eclipse on -0543 Mar 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 17746.2 seconds for this eclipse. The uncertainty in ΔT is 446.6 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 1.87°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of -0543 Mar 13 .


Eclipse Data: Total Lunar Eclipse of -0543 Mar 13

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.85274
Umbral Magnitude 1.79951
Gamma 0.01748
Epsilon 0.0162°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse -0543 Mar 13 at 10:34:35.1 TD (05:38:48.9 UT1) 1522798.735288
Ecliptic Opposition -0543 Mar 13 at 10:34:23.0 TD (05:38:36.8 UT1) 1522798.735148
Equatorial Opposition -0543 Mar 13 at 10:33:28.3 TD (05:37:42.1 UT1) 1522798.734515
Geocentric Coordinates of Sun and Moon
-0543 Mar 13 at 10:34:35.1 TD (05:38:48.9 UT1)
Coordinate Sun Moon
Right Ascension23h10m26.1s11h10m28.0s
Declination-05°23'49.7"+05°24'40.6"
Semi-Diameter 15'55.0" 15'06.7"
Eq. Hor. Parallax 08.8" 0°55'27.7"
Geocentric Libration of Moon
Angle Value
l -4.2°
b -0.0°
c 21.7°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2013°
Umbral Radius 0.6708°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 17746.2 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 43 (53/87)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of -0543 Mar 13

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP107:33:06.502:37:20.306°09.6'N037°23.3'W 299.5° 1.4520°
Partial BeginsU108:39:25.903:43:39.705°53.2'N053°30.3'W 299.9° 0.9218°
Total BeginsU209:42:20.204:46:34.005°37.6'N068°47.5'W 301.1° 0.4187°
Greatest EclipseGreatest10:34:35.105:38:48.905°24.7'N081°29.3'W 28.9° 0.0162°
Total EndsU311:26:51.006:31:04.805°11.7'N094°11.4'W 116.7° 0.4191°
Partial EndsU412:29:46.207:34:00.004°56.0'N109°28.8'W 117.9° 0.9234°
Penumbral EndsP413:35:57.508:40:11.204°39.5'N125°33.9'W 118.3° 1.4544°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)06h02m50.9s
Partial (U4 - U1)03h50m20.3s
Total (U3 - U2)01h44m30.8s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of -0543 Mar 13

Polynomial Besselian Elements
-0543 Mar 13 at 11:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.18605 -0.08429 -0.0941 1.20144 0.67089 0.25190
1 0.42085 -0.23241 0.0003 0.00032 0.00032 0.00009
2 0.00014 -0.00011 0.0000 0.00000 0.00000 0.00000
3 -0.00000 0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Besselian Elements

Links for the Total Lunar Eclipse of -0543 Mar 13 (0544 Mar 13 BCE)

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Lunar Eclipse of -0543 Mar 13 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 17746.2 seconds for this eclipse. The uncertainty in ΔT is 446.6 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 1.87°.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce this data when accompanied by an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
