Hybrid Solar Eclipse of -0436 Jun 10 (0437 Jun 10 BCE)

Fred Espenak

Introduction

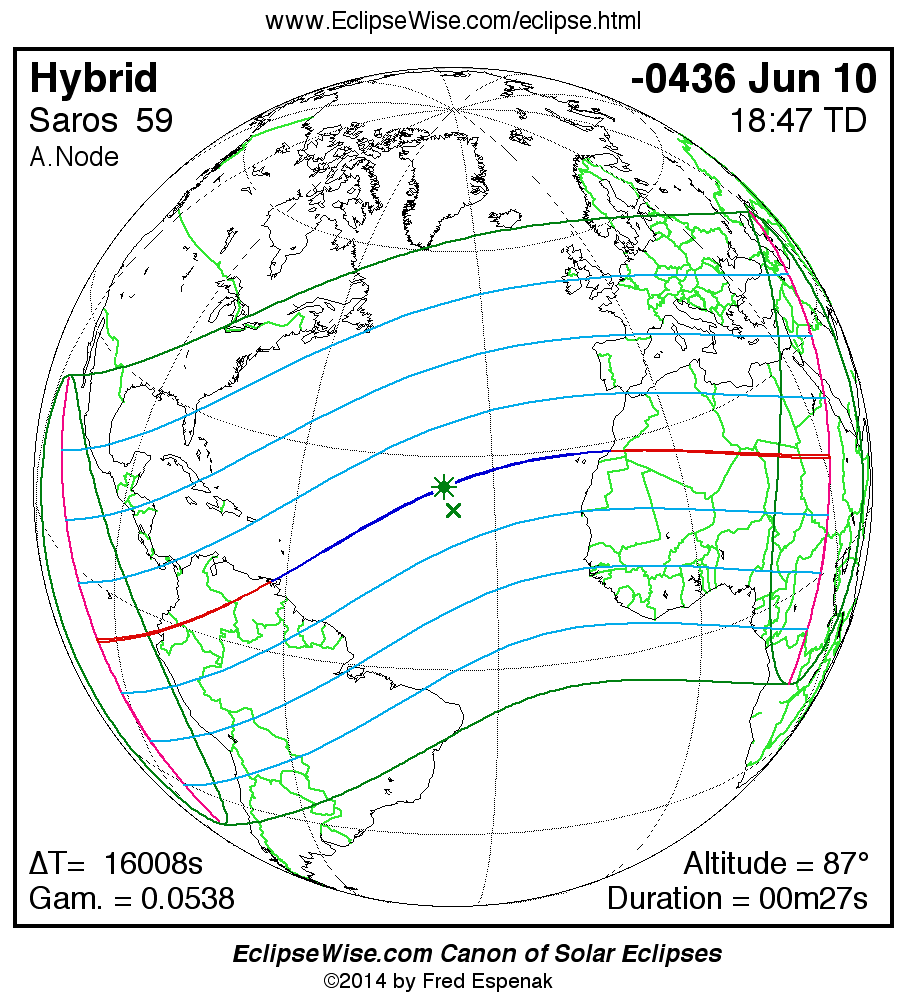

eclipse map


The Hybrid Solar Eclipse of -0436 Jun 10 (0437 Jun 10 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0436 Jun 10 at 18:46:41 TD (14:19:55 UT1). This is 6.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of -29171.

The eclipse belongs to Saros 59 and is number 34 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -0436 Jun 10 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends. It is a very short hybrid eclipse with a duration at greatest eclipse of 00m27s. The eclipse magnitude is 1.0044, while Gamma has a value of 0.0538.

The hybrid solar eclipse of -0436 Jun 10 is preceded two weeks earlier by a penumbral lunar eclipse on -0436 May 27, and it is followed two weeks later by a penumbral lunar eclipse on -0436 Jun 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 16006.3 seconds for this eclipse. The uncertainty in ΔT is 407.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.70°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of -0436 Jun 10 .


Eclipse Data: Hybrid Solar Eclipse of -0436 Jun 10

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.00435
Eclipse Obscuration 1.00872
Gamma 0.05375
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0436 Jun 10 at 18:46:41.5 TD (14:19:55.2 UT1) 1561970.097167
Ecliptic Conjunction -0436 Jun 10 at 18:47:17.3 TD (14:20:31.0 UT1) 1561970.097581
Equatorial Conjunction -0436 Jun 10 at 18:48:03.8 TD (14:21:17.5 UT1) 1561970.098120
Geocentric Coordinates of Sun and Moon
-0436 Jun 10 at 18:46:41.5 TD (14:19:55.2 UT1)
Coordinate Sun Moon
Right Ascension04h47m08.9s04h47m05.9s
Declination+22°40'55.5"+22°43'54.3"
Semi-Diameter 15'43.3" 15'32.5"
Eq. Hor. Parallax 08.6" 0°57'02.3"
Geocentric Libration of Moon
Angle Value
l 5.4°
b -0.1°
c -5.6°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 16006.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 59 (34/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0436 Jun 10

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP115:54:26.011:27:39.710°10.6'S079°21.4'W
First Internal ContactP217:56:55.313:30:09.005°38.4'S111°54.7'W
Last Internal ContactP319:36:24.515:09:38.318°16.6'N048°47.2'E
Last External ContactP421:39:02.917:12:16.613°45.7'N016°04.3'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:25:41.812:58:55.521°59.7'N116°11.2'W
South Extreme Path Limit 1S116:58:44.512:31:58.238°22.2'S080°25.1'W
North Extreme Path Limit 2N220:07:30.115:40:43.844°53.4'N057°41.4'E
South Extreme Path Limit 2S220:34:51.716:08:05.515°03.1'S019°46.9'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0436 Jun 10

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU116:55:14.712:28:28.409°09.5'S094°59.8'W
First Internal ContactU216:55:56.512:29:10.209°08.4'S095°10.7'W
Last Internal ContactU320:37:23.416:10:37.214°47.8'N031°56.8'E
Last External ContactU420:38:11.116:11:24.814°46.6'N031°44.3'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N116:55:40.512:28:54.208°59.2'S095°10.7'W
South Extreme Path Limit 1S116:55:30.712:28:44.409°18.8'S094°59.8'W
North Extreme Path Limit 2N220:37:41.616:10:55.414°58.3'N031°57.0'E
South Extreme Path Limit 2S220:37:52.916:11:06.714°36.1'N031°44.2'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of -0436 Jun 10

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C116:55:35.612:28:49.309°09.0'S095°05.3'W
Extreme Central Line Limit 2C220:37:47.316:11:01.014°47.2'N031°50.6'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse18:46:41.514:19:55.225°50.2'N104°21.6'W 86.8° 167.4° 15.1 km00m27.10s
Greatest Duration20:37:47.316:11:01.014°47.2'N031°50.6'E 0.0° 293.5° 46.7 km00m46.30s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of -0436 Jun 10

Polynomial Besselian Elements
-0436 Jun 10 at 19:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.10456 0.07913 22.6830 0.54958 0.00341 106.9222
1 0.52560 0.12050 0.0047 0.00011 0.00011 14.9998
2 0.00001 -0.00015 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0045964
Tan ƒ2 0.0045736

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of -0436 Jun 10 (0437 Jun 10 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of -0436 Jun 10 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 16006.3 seconds for this eclipse. The uncertainty in ΔT is 407.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.70°.
