Annular Solar Eclipse of -0476 Feb 06 (0477 Feb 06 BCE)

Fred Espenak

Introduction

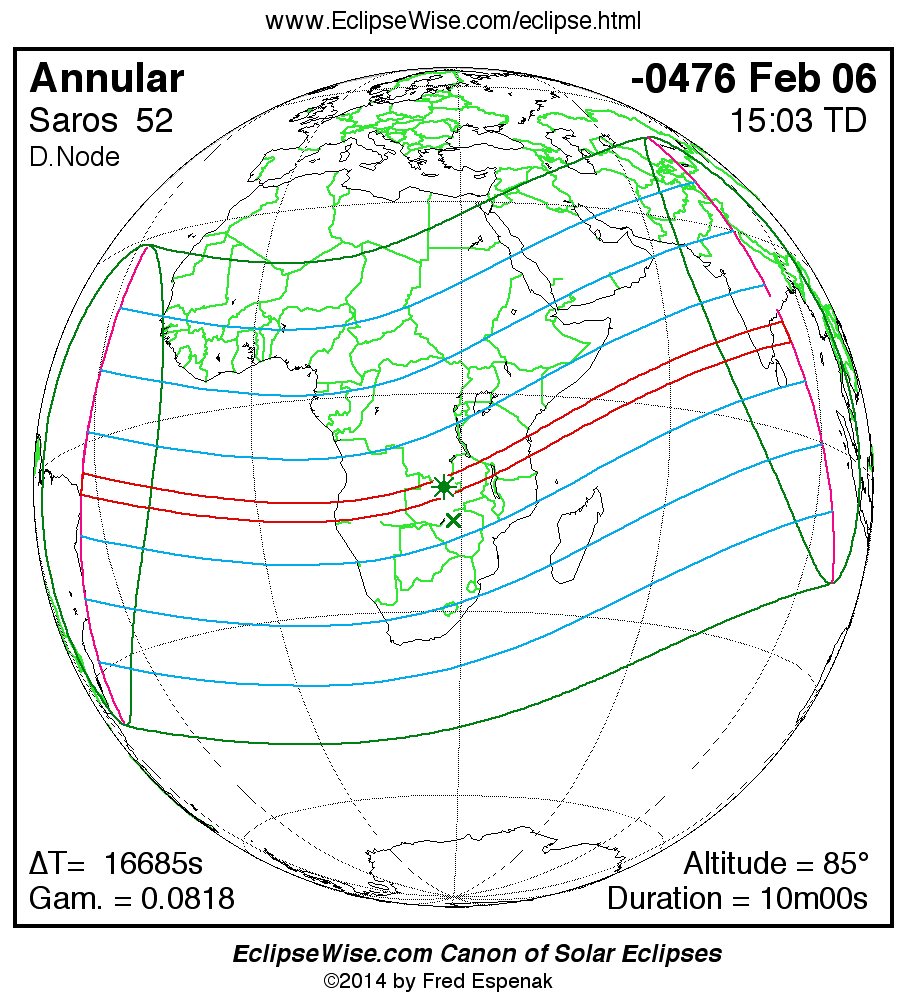

eclipse map


The Annular Solar Eclipse of -0476 Feb 06 (0477 Feb 06 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0476 Feb 06 at 15:02:41 TD (10:24:38 UT1). This is 0.2 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -29670.

The eclipse belongs to Saros 52 and is number 51 of 86 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of -0476 Feb 06 is an exceptionally long annular eclipse with a duration at greatest eclipse of 10m00s. It has an eclipse magnitude of 0.9274.

The annular solar eclipse of -0476 Feb 06 is preceded two weeks earlier by a penumbral lunar eclipse on -0476 Jan 22, and it is followed two weeks later by a penumbral lunar eclipse on -0476 Feb 21.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 16682.7 seconds for this eclipse. The uncertainty in ΔT is 421.7 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.76°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -0476 Feb 06 .


Eclipse Data: Annular Solar Eclipse of -0476 Feb 06

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.92736
Eclipse Obscuration 0.85999
Gamma 0.08187
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0476 Feb 06 at 15:02:40.9 TD (10:24:38.2 UT1) 1547234.933776
Ecliptic Conjunction -0476 Feb 06 at 15:01:41.7 TD (10:23:39.0 UT1) 1547234.933091
Equatorial Conjunction -0476 Feb 06 at 15:04:30.4 TD (10:26:27.6 UT1) 1547234.935042
Geocentric Coordinates of Sun and Moon
-0476 Feb 06 at 15:02:40.9 TD (10:24:38.2 UT1)
Coordinate Sun Moon
Right Ascension20h57m46.0s20h57m42.6s
Declination-17°26'27.8"-17°22'08.1"
Semi-Diameter 16'05.3" 14'41.9"
Eq. Hor. Parallax 08.8" 0°53'56.5"
Geocentric Libration of Moon
Angle Value
l 0.3°
b -0.0°
c -18.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 16682.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 52 (51/86)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0476 Feb 06

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP111:55:40.707:17:38.007°15.9'S017°07.6'W
First Internal ContactP214:12:41.609:34:38.800°26.0'N048°56.6'W
Last Internal ContactP315:52:37.311:14:34.620°43.4'N099°06.8'E
Last External ContactP418:09:40.413:31:37.713°03.4'N067°30.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N113:23:07.508:45:04.828°34.2'N026°49.6'W
South Extreme Path Limit 1S113:27:14.008:49:11.337°41.8'S051°47.0'W
North Extreme Path Limit 2N216:41:58.812:03:56.148°10.6'N073°04.0'E
South Extreme Path Limit 2S216:38:17.312:00:14.617°42.2'S100°16.1'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0476 Feb 06

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU113:00:52.708:22:50.005°45.0'S032°56.5'W
First Internal ContactU213:07:05.908:29:03.205°31.0'S034°25.4'W
Last Internal ContactU316:58:14.612:20:11.914°48.0'N084°46.5'E
Last External ContactU417:04:27.912:26:25.214°34.0'N083°17.9'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N113:03:47.208:25:44.504°13.1'S033°11.0'W
South Extreme Path Limit 1S113:04:15.208:26:12.507°03.2'S034°12.1'W
North Extreme Path Limit 2N217:01:32.912:23:30.216°05.7'N083°30.6'E
South Extreme Path Limit 2S217:01:05.812:23:03.113°16.1'N084°34.4'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -0476 Feb 06

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C113:03:59.308:25:56.605°38.2'S033°41.0'W
Extreme Central Line Limit 2C217:01:21.312:23:18.614°40.8'N084°02.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse15:02:40.910:24:38.212°54.4'S042°09.9'W 85.4° 169.5° 273.9 km09m59.74s
Greatest Duration14:54:35.210:16:32.513°34.3'S025°36.9'E 83.9° 130.4° 274.3 km10m00.86s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -0476 Feb 06

Polynomial Besselian Elements
-0476 Feb 06 at 15:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.03719 0.07633 -17.4418 0.57235 0.02606 40.6097
1 0.49521 0.09261 0.0115 0.00000 0.00000 15.0005
2 -0.00002 0.00010 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047046
Tan ƒ2 0.0046812

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 15.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -0476 Feb 06 (0477 Feb 06 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -0476 Feb 06 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 16682.7 seconds for this eclipse. The uncertainty in ΔT is 421.7 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.76°.
