Annular Solar Eclipse of -0863 May 23 (0864 May 23 BCE)

Fred Espenak

Introduction

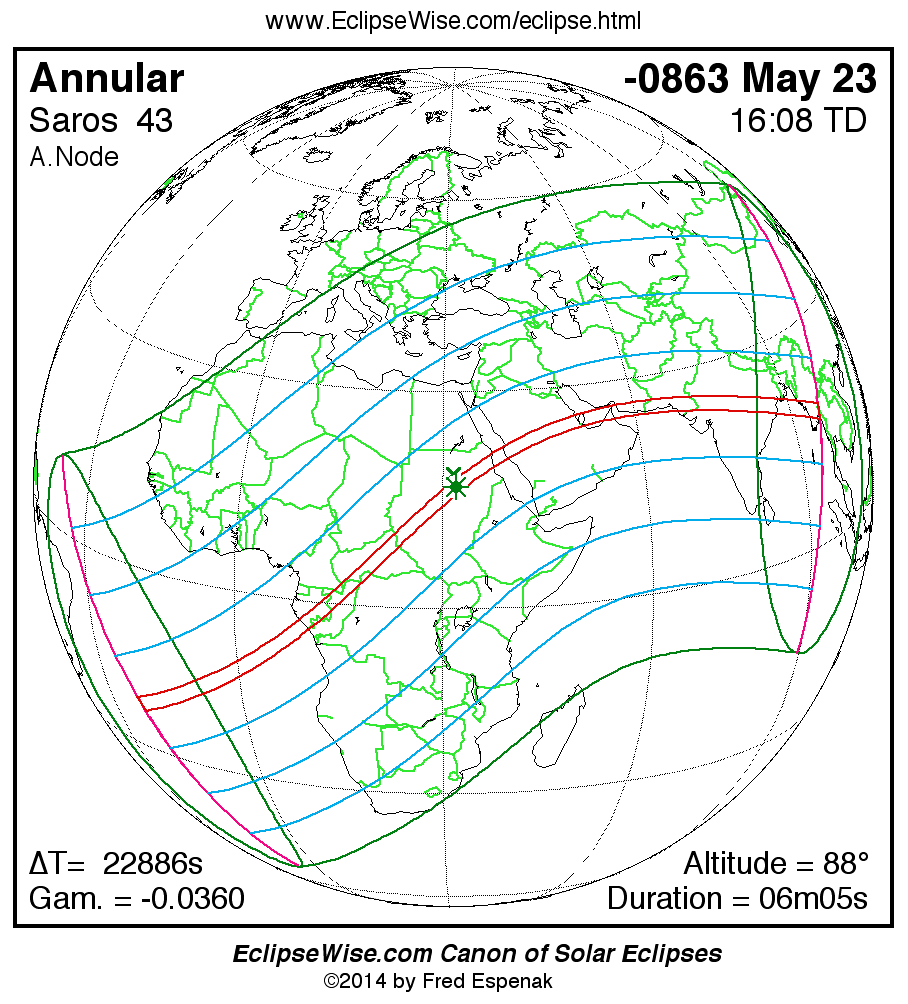

eclipse map


The Annular Solar Eclipse of -0863 May 23 (0864 May 23 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0863 May 23 at 16:07:55 TD (09:46:33 UT1). This is 0.4 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of -34453.

The eclipse belongs to Saros 43 and is number 37 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -0863 May 23 is a relatively long annular eclipse with a duration at greatest eclipse of 06m05s. It has an eclipse magnitude of 0.9498.

The annular solar eclipse of -0863 May 23 is preceded two weeks earlier by a penumbral lunar eclipse on -0863 May 09, and it is followed two weeks later by a penumbral lunar eclipse on -0863 Jun 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 22882.6 seconds for this eclipse. The uncertainty in ΔT is 569.8 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.38°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -0863 May 23 .


Eclipse Data: Annular Solar Eclipse of -0863 May 23

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94976
Eclipse Obscuration 0.90205
Gamma-0.03598
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0863 May 23 at 16:07:55.4 TD (09:46:32.8 UT1) 1405989.907324
Ecliptic Conjunction -0863 May 23 at 16:07:29.6 TD (09:46:06.9 UT1) 1405989.907025
Equatorial Conjunction -0863 May 23 at 16:06:18.0 TD (09:44:55.4 UT1) 1405989.906197
Geocentric Coordinates of Sun and Moon
-0863 May 23 at 16:07:55.4 TD (09:46:32.8 UT1)
Coordinate Sun Moon
Right Ascension03h19m40.2s03h19m43.1s
Declination+18°38'51.5"+18°37'02.9"
Semi-Diameter 15'42.8" 14'42.1"
Eq. Hor. Parallax 08.6" 0°53'57.3"
Geocentric Libration of Moon
Angle Value
l 0.8°
b 0.0°
c -13.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 22882.6 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 43 (37/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0863 May 23

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP113:02:20.606:40:58.021°04.1'S005°00.9'W
First Internal ContactP215:16:35.808:55:13.124°16.5'S037°17.3'W
Last Internal ContactP316:59:17.310:37:54.715°16.6'N113°34.6'E
Last External ContactP419:13:31.412:52:08.818°29.9'N081°13.0'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:35:27.408:14:04.810°18.2'N039°16.0'W
South Extreme Path Limit 1S114:23:02.708:01:40.153°08.3'S005°55.6'W
North Extreme Path Limit 2N217:40:06.011:18:43.448°53.2'N120°51.0'E
South Extreme Path Limit 2S217:53:13.111:31:50.514°57.8'S089°37.3'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -0863 May 23

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU114:07:10.607:45:48.021°43.2'S020°57.8'W
First Internal ContactU214:11:40.707:50:18.121°47.6'S022°03.6'W
Last Internal ContactU318:04:11.011:42:48.317°46.3'N098°16.6'E
Last External ContactU418:08:41.511:47:18.917°50.7'N097°10.6'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:09:43.707:48:21.020°44.7'S021°59.0'W
South Extreme Path Limit 1S114:09:09.507:47:46.922°46.1'S021°02.6'W
North Extreme Path Limit 2N218:06:07.611:44:45.018°49.5'N098°11.3'E
South Extreme Path Limit 2S218:06:43.011:45:20.416°47.5'N097°16.7'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -0863 May 23

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C114:09:25.607:48:03.021°45.4'S021°30.7'W
Extreme Central Line Limit 2C218:06:26.311:45:03.617°48.5'N097°43.6'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse16:07:55.409:46:32.816°49.5'N063°42.7'W 88.0° 338.3° 184.4 km06m04.86s
Greatest Duration16:29:40.010:08:17.420°14.8'N037°00.3'E 79.2° 263.4° 186.0 km06m08.09s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -0863 May 23

Polynomial Besselian Elements
-0863 May 23 at 16:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.04965 -0.05737 18.6464 0.56526 0.01901 62.4954
1 0.47278 0.17976 0.0099 0.00001 0.00001 15.0019
2 0.00004 -0.00010 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0045946
Tan ƒ2 0.0045717

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 16.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -0863 May 23 (0864 May 23 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -0863 May 23 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 22882.6 seconds for this eclipse. The uncertainty in ΔT is 569.8 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.38°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
