Annular Solar Eclipse of -1437 Oct 05 (1438 Oct 05 BCE)

Fred Espenak

Introduction

eclipse map

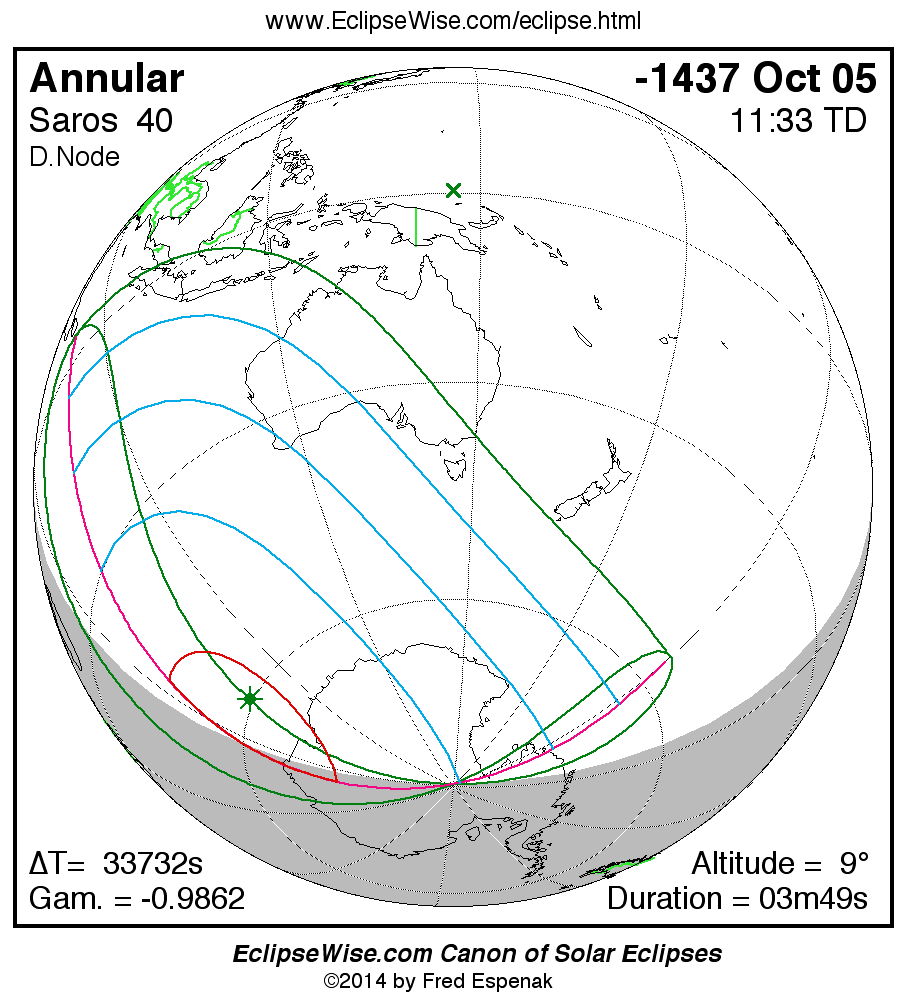

The Annular Solar Eclipse of -1437 Oct 05 (1438 Oct 05 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1437 Oct 05 at 11:33:07 TD (02:10:60 UT1). This is 5.8 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of -41548.

The eclipse belongs to Saros 40 and is number 13 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This annular eclipse is unsual in that it does NOT have a southern path limit. Instead, one edge of the antumbral shadow falls off into space throughout the eclipse. Gamma has a value of -0.9862.

The annular solar eclipse of -1437 Oct 05 is preceded two weeks earlier by a partial lunar eclipse on -1437 Sep 19.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 33727.7 seconds for this eclipse. The uncertainty in ΔT is 1705.6 seconds corresponding to a standard error in longitude of the eclipse path of ± 7.13°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -1437 Oct 05 .

Eclipse Data: Annular Solar Eclipse of -1437 Oct 05

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94594
Eclipse Obscuration 0.89481
Gamma-0.98623
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1437 Oct 05 at 11:33:07.4 TD (02:10:59.8 UT1) 1196470.590970
Ecliptic Conjunction -1437 Oct 05 at 11:44:07.2 TD (02:21:59.5 UT1) 1196470.598606
Equatorial Conjunction -1437 Oct 05 at 12:36:30.5 TD (03:14:22.8 UT1) 1196470.634987
Geocentric Coordinates of Sun and Moon
-1437 Oct 05 at 11:33:07.4 TD (02:10:59.8 UT1)
Coordinate Sun Moon
Right Ascension11h56m12.1s11h54m23.5s
Declination+00°25'09.0"-00°22'55.7"
Semi-Diameter 16'12.0" 15'17.8"
Eq. Hor. Parallax 08.9" 0°56'08.4"
Geocentric Libration of Moon
Angle Value
l -4.0°
b 1.3°
c 22.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 33727.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 40 (13/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1437 Oct 05

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP109:15:09.623:53:01.909°43.6'S090°44.8'E
Last External ContactP413:50:34.904:28:27.368°48.5'S159°11.7'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N109:50:04.900:27:57.204°26.4'N081°54.0'E
South Extreme Path Limit 1S113:15:47.903:53:40.254°46.4'S150°04.7'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1437 Oct 05

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU111:06:01.601:43:53.947°09.3'S063°24.4'E
Last External ContactU411:59:32.202:37:24.673°52.9'S050°59.8'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N111:06:14.601:44:07.047°02.5'S063°21.0'E
South Extreme Path Limit 1S111:59:19.002:37:11.373°59.3'S051°03.8'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -1437 Oct 05

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C111:15:47.101:53:39.451°56.5'S061°02.9'E
Extreme Central Line Limit 2C211:49:49.002:27:41.369°07.5'S053°05.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse11:33:07.402:10:59.859°27.2'S066°55.4'W 8.6° 74.3° 1288.1 km03m48.55s
Greatest Duration11:31:16.302:09:08.758°33.8'S073°54.9'E 8.5° 74.9° 1321.5 km03m48.58s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -1437 Oct 05

Polynomial Besselian Elements
-1437 Oct 05 at 12:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.27938 -0.97487 0.4139 0.56250 0.01626 1.4696
1 0.45914 -0.25931 -0.0164 -0.00012 -0.00012 15.0037
2 0.00003 0.00003 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047368
Tan ƒ2 0.0047133

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 12.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -1437 Oct 05 (1438 Oct 05 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -1437 Oct 05 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 33727.7 seconds for this eclipse. The uncertainty in ΔT is 1705.6 seconds corresponding to a standard error in longitude of the eclipse path of ± 7.13°.
