Total Solar Eclipse of -1666 Jan 24 (1667 Jan 24 BCE)

Fred Espenak

Introduction

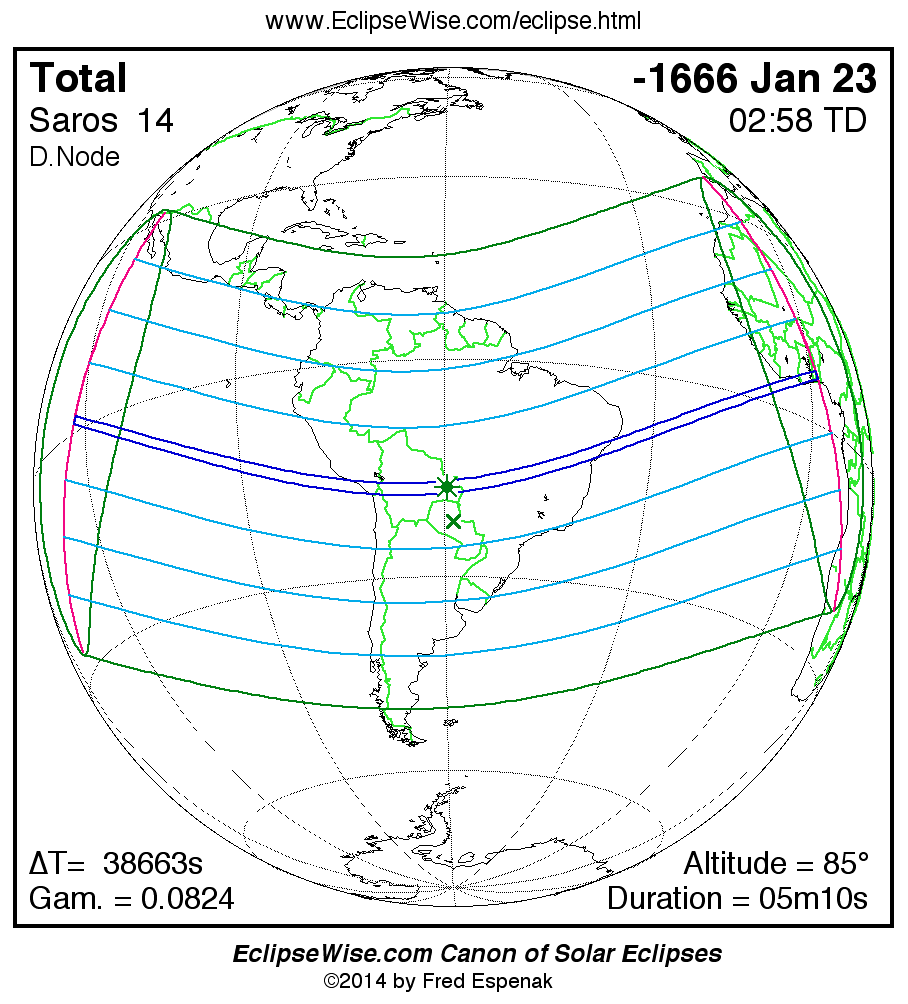

eclipse map


The Total Solar Eclipse of -1666 Jan 24 (1667 Jan 24 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1666 Jan 24 at 02:57:36 TD (16:13:18 UT1). This is 0.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -44389.

The eclipse belongs to Saros 14 and is number 50 of 85 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of -1666 Jan 24 is a relatively long total eclipse with a duration at greatest eclipse of 05m10s. It has an eclipse magnitude of 1.0554.

The total solar eclipse of -1666 Jan 24 is followed two weeks later by a penumbral lunar eclipse on -1666 Feb 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38657.8 seconds for this eclipse. The uncertainty in ΔT is 2448.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 10.23°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of -1666 Jan 24 .


Eclipse Data: Total Solar Eclipse of -1666 Jan 24

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.05544
Eclipse Obscuration 1.11395
Gamma 0.08236
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1666 Jan 24 at 02:57:36.0 TD (16:13:18.2 UT1) 1112574.175905
Ecliptic Conjunction -1666 Jan 24 at 02:56:45.7 TD (16:12:27.9 UT1) 1112574.175323
Equatorial Conjunction -1666 Jan 24 at 02:58:02.8 TD (16:13:45.0 UT1) 1112574.176215
Geocentric Coordinates of Sun and Moon
-1666 Jan 24 at 02:57:36.0 TD (16:13:18.2 UT1)
Coordinate Sun Moon
Right Ascension19h27m31.7s19h27m30.6s
Declination-22°20'28.2"-22°15'26.5"
Semi-Diameter 16'06.0" 16'42.2"
Eq. Hor. Parallax 08.9" 1°01'18.3"
Geocentric Libration of Moon
Angle Value
l -0.6°
b -0.0°
c -10.5°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 38657.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 14 (50/85)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of -1666 Jan 24

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP100:19:26.213:35:08.400°05.8'N109°46.9'W
First Internal ContactP202:10:35.015:26:17.206°43.8'N134°49.4'W
Last Internal ContactP303:44:36.717:00:18.912°18.9'N013°44.7'E
Last External ContactP405:35:44.118:51:26.305°41.8'N011°14.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:27:53.114:43:35.332°01.8'N112°01.5'W
South Extreme Path Limit 1S101:33:16.014:48:58.227°23.0'S140°34.4'W
North Extreme Path Limit 2N204:27:15.217:42:57.437°23.2'N010°03.8'W
South Extreme Path Limit 2S204:21:58.017:37:40.221°53.3'S019°03.2'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of -1666 Jan 24

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU101:13:52.114:29:34.301°34.7'N122°46.7'W
First Internal ContactU201:15:52.014:31:34.201°39.8'N123°14.6'W
Last Internal ContactU304:39:18.817:55:01.007°15.6'N002°13.1'E
Last External ContactU404:41:20.117:57:02.307°10.5'N001°44.9'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:14:47.114:30:29.302°07.7'N122°46.8'W
South Extreme Path Limit 1S101:14:57.814:30:40.001°06.7'N123°14.6'W
North Extreme Path Limit 2N204:40:24.417:56:06.607°43.9'N001°44.9'E
South Extreme Path Limit 2S204:40:13.717:55:55.906°42.2'N002°13.3'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of -1666 Jan 24

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C101:14:52.114:30:34.301°37.2'N123°00.6'W
Extreme Central Line Limit 2C204:40:19.517:56:01.707°13.0'N001°59.0'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse02:57:36.016:13:18.217°44.0'S138°52.1'E 85.4° 177.0° 183.6 km05m09.90s
Greatest Duration02:56:56.116:12:38.317°45.1'S059°50.3'W 85.4° 172.6° 183.6 km05m09.91s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of -1666 Jan 24

Polynomial Besselian Elements
-1666 Jan 24 at 03:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.01892 0.08347 -22.3411 0.53643 -0.00968 221.4720
1 0.58127 0.03058 0.0062 -0.00003 -0.00003 14.9981
2 -0.00000 0.00016 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047063
Tan ƒ2 0.0046828

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 3.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of -1666 Jan 24 (1667 Jan 24 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of -1666 Jan 24 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38657.8 seconds for this eclipse. The uncertainty in ΔT is 2448.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 10.23°.
