Annular Solar Eclipse of -1784 Jun 05 (1785 Jun 05 BCE)

Fred Espenak

Introduction

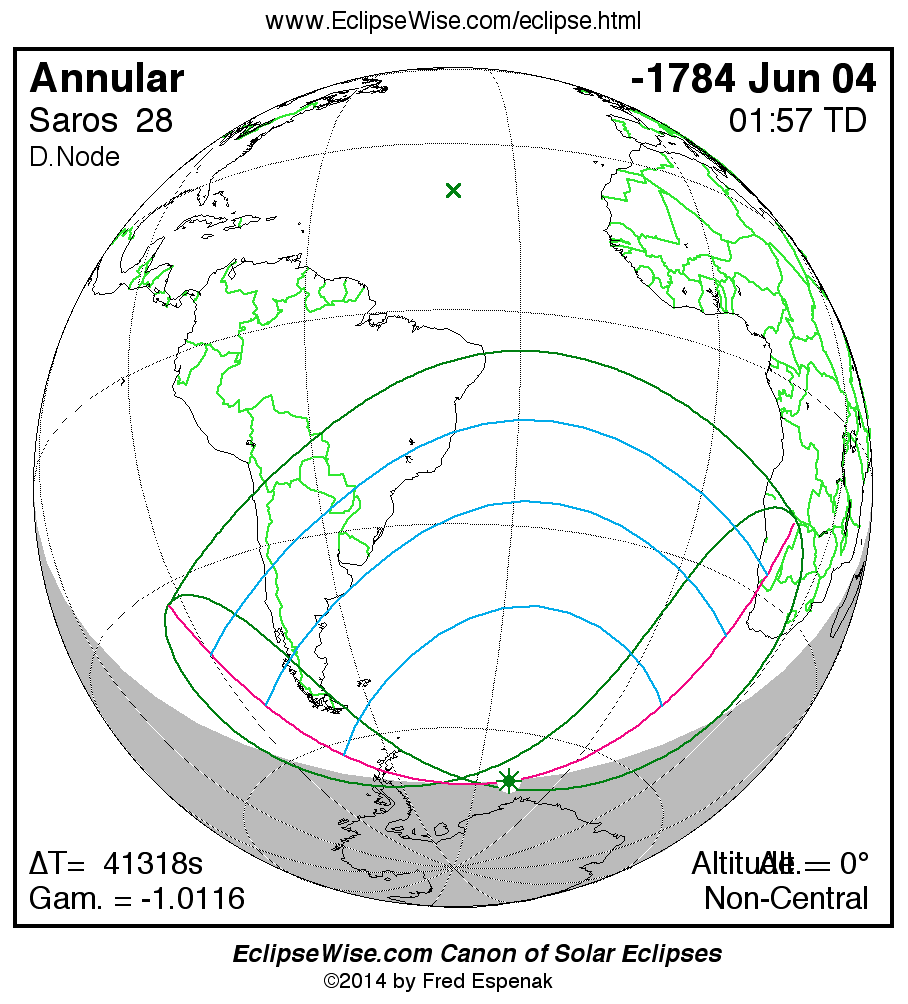

eclipse map


The Annular Solar Eclipse of -1784 Jun 05 (1785 Jun 05 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1784 Jun 05 at 01:57:00 TD (14:28:28 UT1). This is 3.8 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of -45844.

The eclipse belongs to Saros 28 and is number 8 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This annular eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a southern path limit. Instead , over half of the antumbral shadow falls off into space throughout the eclipse. Gamma has a value of -1.0116.

The annular solar eclipse of -1784 Jun 05 is preceded two weeks earlier by a total lunar eclipse on -1784 May 20.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 41312.8 seconds for this eclipse. The uncertainty in ΔT is 2873.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 12.00°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -1784 Jun 05 .


Eclipse Data: Annular Solar Eclipse of -1784 Jun 05

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94927
Eclipse Obscuration -
Gamma-1.01160
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1784 Jun 05 at 01:57:00.4 TD (14:28:27.6 UT1) 1069607.103097
Ecliptic Conjunction -1784 Jun 05 at 02:08:35.7 TD (14:40:02.9 UT1) 1069607.111145
Equatorial Conjunction -1784 Jun 05 at 01:40:42.2 TD (14:12:09.4 UT1) 1069607.091775
Geocentric Coordinates of Sun and Moon
-1784 Jun 05 at 01:57:00.4 TD (14:28:27.6 UT1)
Coordinate Sun Moon
Right Ascension03h39m26.7s03h39m58.7s
Declination+19°55'12.5"+19°00'26.4"
Semi-Diameter 15'43.4" 14'55.8"
Eq. Hor. Parallax 08.6" 0°54'47.7"
Geocentric Libration of Moon
Angle Value
l -2.8°
b 1.3°
c -14.7°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 41312.8 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 28 ( 8/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1784 Jun 05

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP123:38:42.312:10:09.444°46.4'S074°11.9'W
Last External ContactP404:15:21.816:46:49.030°33.1'S003°12.9'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N100:24:12.412:55:39.632°56.8'S093°03.0'W
South Extreme Path Limit 1S103:29:51.216:01:18.418°19.5'S020°03.7'E

Non-Central Annular Solar Eclipse

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1784 Jun 05

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU101:54:51.214:26:18.368°59.9'S020°02.3'W
Last External ContactU401:59:18.814:30:46.068°14.3'S015°37.3'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N101:54:52.614:26:19.869°00.0'S020°03.8'W
South Extreme Path Limit 1S101:59:17.414:30:44.668°14.1'S015°35.7'W

Non-Central Annular Solar Eclipse

Explanation of Umbral Shadow Contacts and Extremes Tables

Non-Central Annular Solar Eclipse

Explanation of Central Line Extremes Table

Non-Central Annular Solar Eclipse

Polynomial Besselian Elements: Annular Solar Eclipse of -1784 Jun 05

Polynomial Besselian Elements
-1784 Jun 05 at 02:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.16399 -0.99855 19.9230 0.56092 0.01469 213.1821
1 0.50990 0.07049 0.0091 -0.00008 -0.00008 15.0013
2 0.00002 -0.00008 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0045975
Tan ƒ2 0.0045746

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 2.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -1784 Jun 05 (1785 Jun 05 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -1784 Jun 05 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 41312.8 seconds for this eclipse. The uncertainty in ΔT is 2873.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 12.00°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
