Annular Solar Eclipse of 0439 May 28

Fred Espenak

Introduction

eclipse map

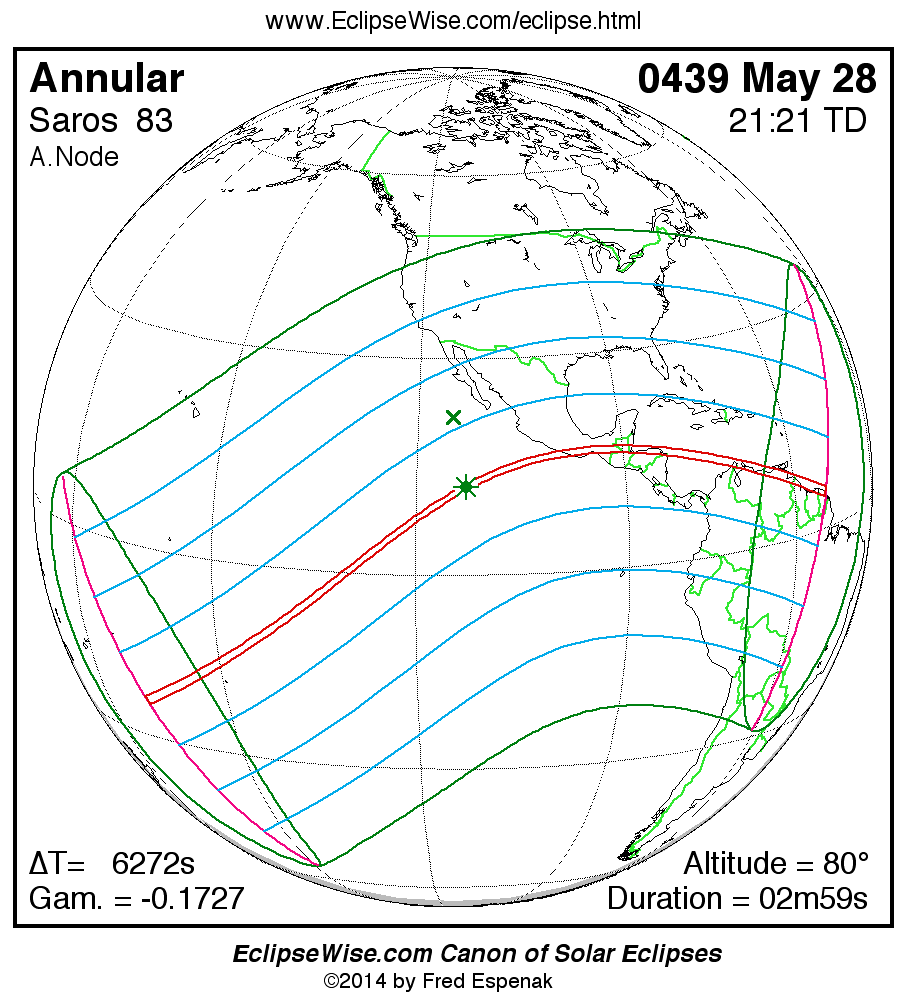

The Annular Solar Eclipse of 0439 May 28 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0439 May 28 at 21:21:10 TD (19:36:39 UT1). This is 4.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -18349.

The eclipse belongs to Saros 83 and is number 37 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The annular solar eclipse of 0439 May 28 is preceded two weeks earlier by a penumbral lunar eclipse on 0439 May 14, and it is followed two weeks later by a penumbral lunar eclipse on 0439 Jun 13.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 6271.4 seconds for this eclipse. The uncertainty in ΔT is 152.5 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.64°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 0439 May 28 .


Eclipse Data: Annular Solar Eclipse of 0439 May 28

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.97504
Eclipse Obscuration 0.95071
Gamma-0.17269
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 0439 May 28 at 21:21:10.0 TD (19:36:38.6 UT1) 1881550.317114
Ecliptic Conjunction 0439 May 28 at 21:19:10.9 TD (19:34:39.4 UT1) 1881550.315734
Equatorial Conjunction 0439 May 28 at 21:15:42.9 TD (19:31:11.4 UT1) 1881550.313327
Geocentric Coordinates of Sun and Moon
0439 May 28 at 21:21:10.0 TD (19:36:38.6 UT1)
Coordinate Sun Moon
Right Ascension04h21m13.9s04h21m24.7s
Declination+21°41'18.4"+21°32'06.1"
Semi-Diameter 15'43.4" 15'06.0"
Eq. Hor. Parallax 08.6" 0°55'25.1"
Geocentric Libration of Moon
Angle Value
l 4.4°
b 0.2°
c -8.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 6271.4 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 83 (37/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 0439 May 28

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP118:23:13.616:38:42.220°15.6'S152°43.6'W
First Internal ContactP220:34:28.418:49:57.035°24.0'S177°33.5'W
Last Internal ContactP322:07:58.720:23:27.207°08.6'S040°12.4'W
Last External ContactP400:19:14.422:34:42.908°21.3'N066°48.8'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:44:46.318:00:14.906°22.9'N175°54.2'E
South Extreme Path Limit 1S119:52:50.618:08:19.255°10.4'S148°43.0'W
North Extreme Path Limit 2N222:57:25.321:12:53.934°39.6'N033°44.4'W
South Extreme Path Limit 2S222:49:51.621:05:20.228°50.4'S060°28.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 0439 May 28

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU119:26:38.817:42:07.323°26.5'S167°05.5'W
First Internal ContactU219:29:16.817:44:45.423°38.9'S167°39.0'W
Last Internal ContactU323:13:05.021:28:33.504°55.1'N051°39.8'W
Last External ContactU423:15:48.121:31:16.605°08.2'N052°15.3'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:27:58.917:43:27.522°57.1'S167°39.6'W
South Extreme Path Limit 1S119:27:57.217:43:25.824°08.2'S167°05.0'W
North Extreme Path Limit 2N223:14:25.121:29:53.705°38.9'N051°42.2'W
South Extreme Path Limit 2S223:14:27.421:29:56.004°24.4'N052°12.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 0439 May 28

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C119:27:57.817:43:26.323°32.6'S167°22.3'W
Extreme Central Line Limit 2C223:14:26.521:29:55.105°01.7'N051°57.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse21:21:10.019:36:38.612°09.5'N139°10.1'W 80.1° 345.3° 90.5 km02m58.95s
Greatest Duration21:58:15.020:13:43.615°40.6'N103°10.8'W 68.6° 289.6° 95.1 km03m02.26s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 0439 May 28

Polynomial Besselian Elements
0439 May 28 at 21:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.13176 -0.21527 21.6866 0.55767 0.01146 136.5567
1 0.50308 0.13822 0.0063 0.00010 0.00010 15.0002
2 0.00003 -0.00013 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0045973
Tan ƒ2 0.0045744

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 0439 May 28

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 0439 May 28 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 6271.4 seconds for this eclipse. The uncertainty in ΔT is 152.5 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.64°.
