Hybrid Solar Eclipse of 1864 May 06

Fred Espenak

Introduction

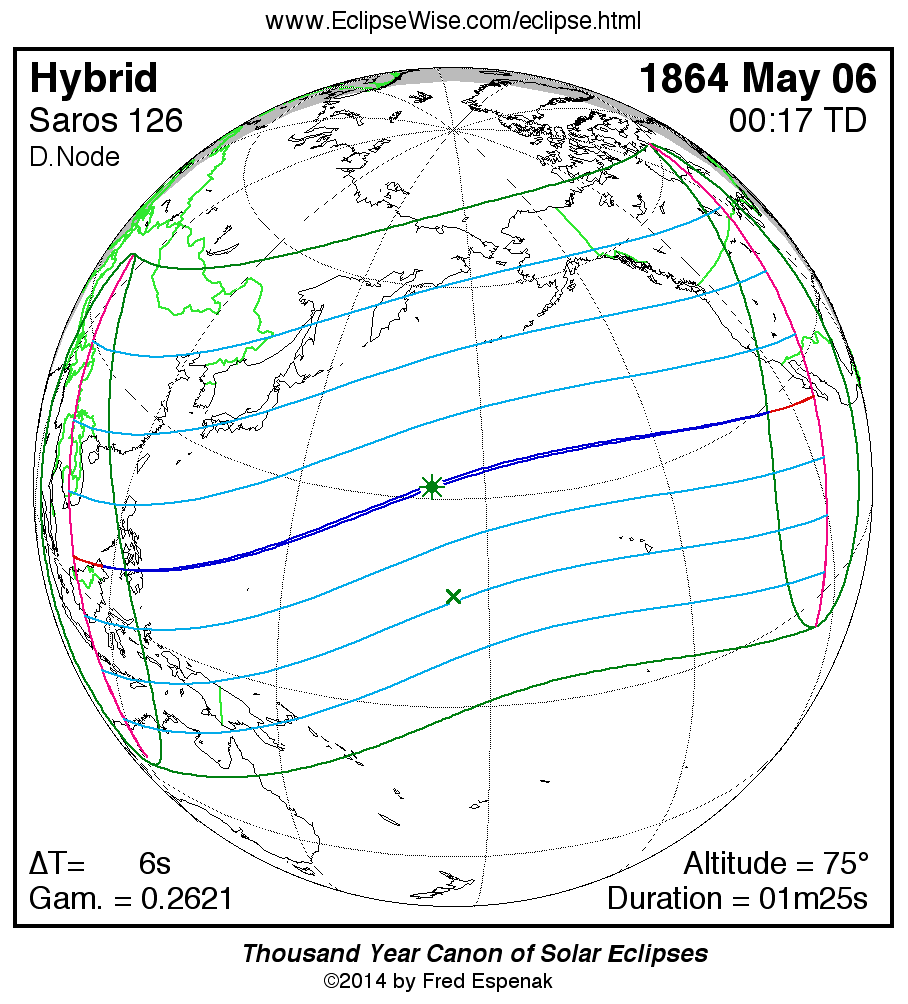

eclipse map


The Hybrid Solar Eclipse of 1864 May 06 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1864 May 06 at 00:16:48 TD (00:16:41 UT1). This is 4.5 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of -725.

The eclipse belongs to Saros 126 and is number 39 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1864 May 06 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends.

The hybrid solar eclipse of 1864 May 06 is followed two weeks later by a penumbral lunar eclipse on 1864 May 21.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 6.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of 1864 May 06 .


Eclipse Data: Hybrid Solar Eclipse of 1864 May 06

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.01465
Eclipse Obscuration 1.02951
Gamma 0.26215
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1864 May 06 at 00:16:47.7 TD (00:16:41.2 UT1) 2401997.511588
Ecliptic Conjunction 1864 May 06 at 00:13:57.3 TD (00:13:50.9 UT1) 2401997.509617
Equatorial Conjunction 1864 May 06 at 00:22:27.4 TD (00:22:20.9 UT1) 2401997.515520
Geocentric Coordinates of Sun and Moon
1864 May 06 at 00:16:47.7 TD (00:16:41.2 UT1)
Coordinate Sun Moon
Right Ascension02h52m55.1s02h52m42.7s
Declination+16°33'02.1"+16°47'56.0"
Semi-Diameter 15'50.6" 15'49.6"
Eq. Hor. Parallax 08.7" 0°58'05.0"
Geocentric Libration of Moon
Angle Value
l 4.8°
b -0.3°
c -18.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 6.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 126 (39/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1864 May 06

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP121:30:28.721:30:22.301°25.0'S126°57.0'E
First Internal ContactP223:36:29.323:36:22.823°13.8'N087°41.9'E
Last Internal ContactP300:56:55.900:56:49.544°22.1'N088°11.0'W
Last External ContactP403:03:09.903:03:03.520°07.5'N130°23.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N123:16:52.123:16:45.740°44.9'N085°06.3'E
South Extreme Path Limit 1S122:23:57.922:23:51.426°21.4'S121°36.7'E
North Extreme Path Limit 2N201:16:28.601:16:22.160°36.9'N078°06.1'W
South Extreme Path Limit 2S202:09:46.302:09:39.804°52.8'S124°45.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1864 May 06

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU122:31:26.822:31:20.303°50.1'N110°08.8'E
First Internal ContactU222:31:30.322:31:23.903°50.6'N110°07.7'E
Last Internal ContactU302:01:58.802:01:52.425°21.0'N113°15.1'W
Last External ContactU402:02:07.902:02:01.525°19.8'N113°17.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:31:29.222:31:22.803°51.3'N110°07.8'E
South Extreme Path Limit 1S122:31:27.922:31:21.403°49.5'N110°08.7'E
North Extreme Path Limit 2N202:02:01.702:01:55.225°22.7'N113°15.2'W
South Extreme Path Limit 2S202:02:05.102:01:58.725°18.1'N113°17.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of 1864 May 06

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C122:31:28.622:31:22.103°50.4'N110°08.2'E
Extreme Central Line Limit 2C202:02:03.402:01:56.925°20.4'N113°16.5'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse00:16:47.700:16:41.231°36.7'N171°29.7'E 74.6° 167.5° 52.1 km01m24.64s
Greatest Duration00:15:30.600:15:24.231°27.7'N171°04.3'E 74.6° 164.7° 52.2 km01m24.66s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of 1864 May 06

Polynomial Besselian Elements
1864 May 06 at 00:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.20186 0.22727 16.5468 0.54663 0.00047 180.8828
1 0.53935 0.10682 0.0114 0.00012 0.00012 15.0022
2 0.00001 -0.00012 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046318
Tan ƒ2 0.0046087

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 0.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of 1864 May 06

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of 1864 May 06 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 6.5 seconds for this eclipse.
