Annular Solar Eclipse of 1922 Mar 28
Fred Espenak
Key to Solar Eclipse Figure (below)
Introduction
The Annular Solar Eclipse of 1922 Mar 28 is visible from the following geographic regions:
- Partial Eclipse: east South America, Carribean, north Africa, Europe, west Asia
- Annular Eclipse: Peru, Brazil, Senegal, Mali, Mauritania, Algeria, Libya, Egypt, Saudi Arabia

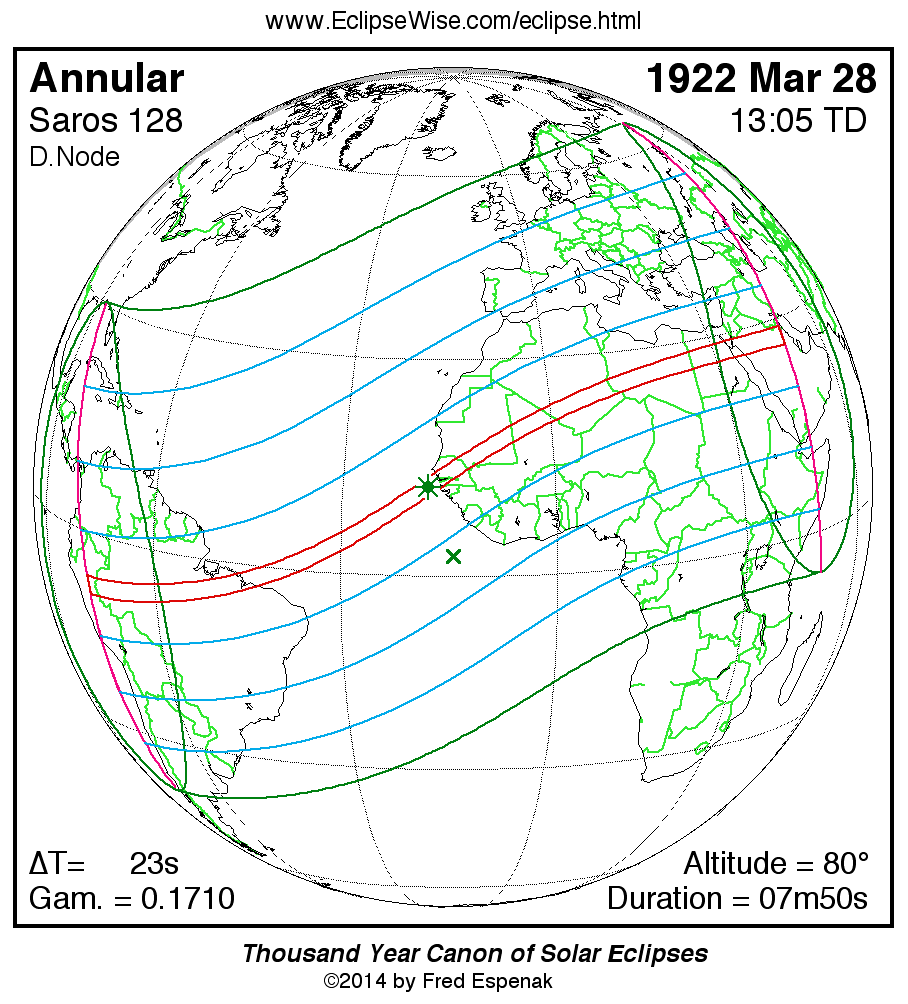

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.
The instant of greatest eclipse takes place on 1922 Mar 28 at 13:05:26 TD (13:05:03 UT1). This is 2.7 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Pisces. The synodic month in which the eclipse takes place has a Brown Lunation Number of -9.
The eclipse belongs to Saros 128 and is number 53 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.
The solar eclipse of 1922 Mar 28 is a relatively long annular eclipse with a duration at greatest eclipse of 07m50s. It has an eclipse magnitude of 0.9381.
The annular solar eclipse of 1922 Mar 28 is preceded two weeks earlier by a penumbral lunar eclipse on 1922 Mar 13, and it is followed two weeks later by a penumbral lunar eclipse on 1922 Apr 11.
These eclipses all take place during a single eclipse season.
The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 22.5 seconds for this eclipse.
The following links provide maps and data for the eclipse.

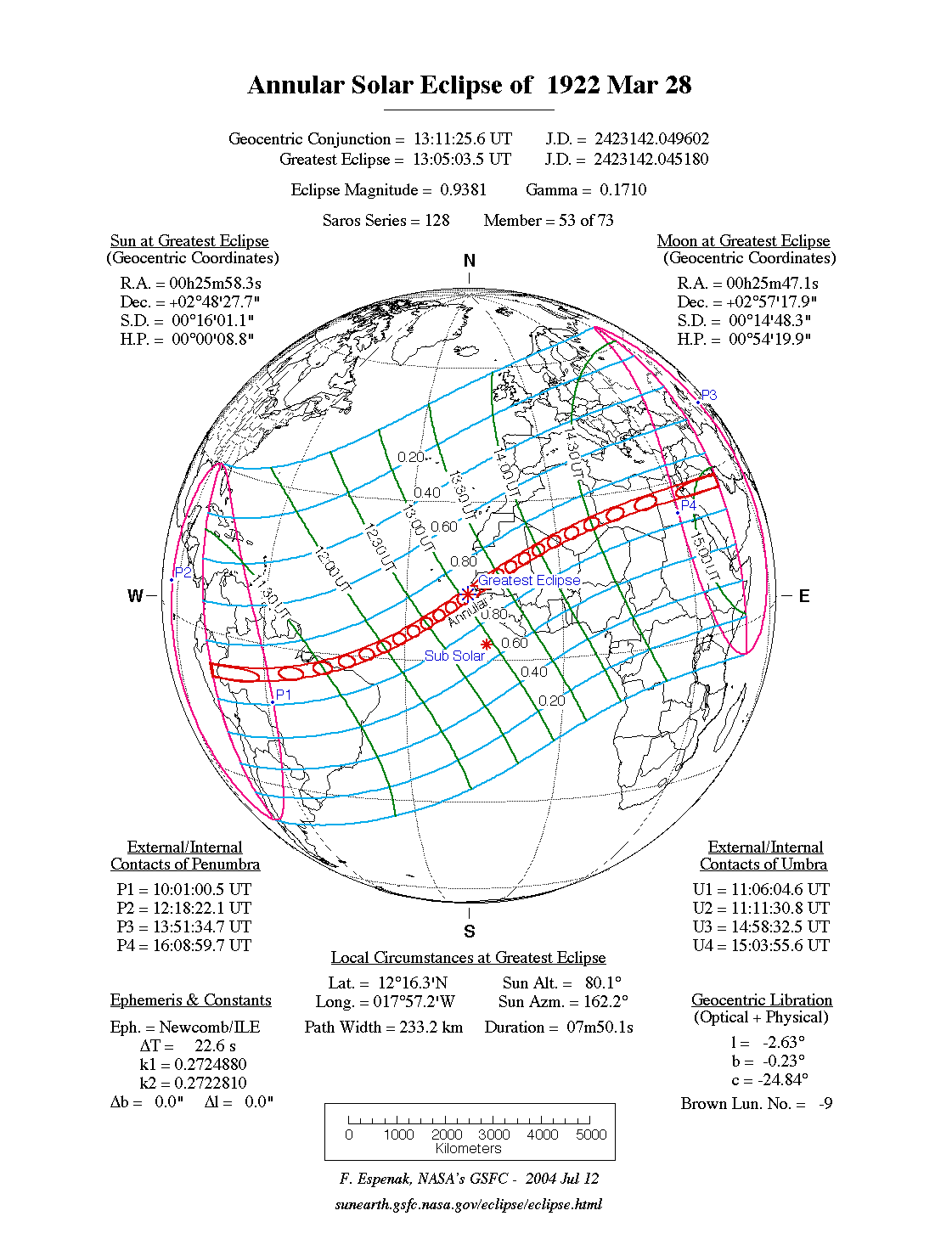

- Orthographic Map: Annular Solar Eclipse of 1922 Mar 28 - detailed global map of eclipse visibility (Key to Figure)
- Google Map: Annular Solar Eclipse of 1922 Mar 28 - interactive map of the eclipse path
- Path Table: Annular Solar Eclipse of 1922 Mar 28 - coordinates of the central line and path limits
- Circumstances Table: Annular Solar Eclipse of 1922 Mar 28 - eclipse times for hundreds of cities
- Saros 128 Table - data for all eclipses in the Saros series
- Additional Tables and Data - for this event
Eclipse Data: Annular Solar Eclipse of 1922 Mar 28
| Eclipse Characteristics | |
| Parameter | Value |
| Eclipse Magnitude | 0.93810 |
| Eclipse Obscuration | 0.88002 |
| Gamma | 0.17106 |
| Conjunction Times | ||
| Event | Calendar Date and Time | Julian Date |
| Greatest Eclipse | 1922 Mar 28 at 13:05:25.8 TD (13:05:03.3 UT1) | 2423142.045177 |
| Ecliptic Conjunction | 1922 Mar 28 at 13:03:23.4 TD (13:03:00.8 UT1) | 2423142.043760 |
| Equatorial Conjunction | 1922 Mar 28 at 13:11:48.1 TD (13:11:25.5 UT1) | 2423142.049601 |
| Geocentric Coordinates of Sun and Moon | ||
| 1922 Mar 28 at 13:05:25.8 TD (13:05:03.3 UT1) | ||
| Coordinate | Sun | Moon |
| Right Ascension | 00h25m58.2s | 00h25m47.1s |
| Declination | +02°48'27.5" | +02°57'17.9" |
| Semi-Diameter | 16'01.1" | 14'48.3" |
| Eq. Hor. Parallax | 08.8" | 0°54'20.0" |
| Geocentric Libration of Moon | |
| Angle | Value |
| l | -2.7° |
| b | -0.2° |
| c | -24.8° |
| Prediction Parameters | |
| Paramater | Value |
| Ephemerides | JPL DE405 |
| ΔT | 22.5 s |
| k (penumbra) | 0.2725076 |
| k (umbra) | 0.2722810 |
| Saros Series | 128 (53/73) |
Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1922 Mar 28
| Contacts of Penumbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | P1 | 10:01:22.5 | 10:01:00.0 | 11°19.5'S | 058°21.3'W |
| First Internal Contact | P2 | 12:18:44.5 | 12:18:22.0 | 05°53.7'N | 093°32.9'W |
| Last Internal Contact | P3 | 13:51:56.9 | 13:51:34.4 | 41°06.0'N | 065°53.7'E |
| Last External Contact | P4 | 16:09:22.4 | 16:08:59.8 | 23°52.9'N | 030°19.9'E |
| Extreme Northern and Southern Path Limits of Penumbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 11:47:10.2 | 11:46:47.7 | 30°23.3'N | 087°00.1'W |
| South Extreme Path Limit 1 | S1 | 11:15:39.5 | 11:15:17.0 | 41°07.4'S | 075°03.3'W |
| North Extreme Path Limit 2 | N2 | 14:23:16.5 | 14:22:54.0 | 65°23.5'N | 061°47.4'E |
| South Extreme Path Limit 2 | S2 | 14:55:26.8 | 14:55:04.3 | 05°56.6'S | 047°15.5'E |
Explanation of Penumbral Shadow Contacts and Extremes Tables
Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1922 Mar 28
| Contacts of Umbral Shadow with Earth | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| First External Contact | U1 | 11:06:26.9 | 11:06:04.3 | 07°56.1'S | 074°47.6'W |
| First Internal Contact | U2 | 11:11:53.0 | 11:11:30.5 | 07°28.8'S | 076°10.5'W |
| Last Internal Contact | U3 | 14:58:55.1 | 14:58:32.5 | 27°43.0'N | 048°10.6'E |
| Last External Contact | U4 | 15:04:18.1 | 15:03:55.5 | 27°16.1'N | 046°48.2'E |
| Extreme Northern and Southern Path Limits of Umbra | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| North Extreme Path Limit 1 | N1 | 11:09:43.1 | 11:09:20.6 | 06°23.0'S | 075°41.2'W |
| South Extreme Path Limit 1 | S1 | 11:08:39.7 | 11:08:17.2 | 09°02.2'S | 075°17.5'W |
| North Extreme Path Limit 2 | N2 | 15:01:03.0 | 15:00:40.5 | 28°48.0'N | 047°42.8'E |
| South Extreme Path Limit 2 | S2 | 15:02:07.2 | 15:01:44.6 | 26°10.8'N | 047°16.9'E |
Central Line Extremes and Duration: Annular Solar Eclipse of 1922 Mar 28
| Extreme Limits of the Central Line | |||||
| Contact Event | Contact | Time TD |
Time UT1 |
Latitude | Longitude |
| Extreme Central Line Limit 1 | C1 | 11:09:09.9 | 11:08:47.3 | 07°42.8'S | 075°29.0'W |
| Extreme Central Line Limit 2 | C2 | 15:01:36.7 | 15:01:14.1 | 27°29.3'N | 047°29.4'E |
Explanation of Central Line Extremes Table
| Greatest Eclipse and Greatest Duration | ||||||||
| Event | Time TD |
Time UT1 |
Latitude | Longitude | Sun Altitude |
Sun Azimuth |
Path Width | Central Duration |
| Greatest Eclipse | 13:05:25.8 | 13:05:03.3 | 12°16.4'N | 017°57.3'W | 80.1° | 162.2° | 233.1 km | 07m50.04s |
| Greatest Duration | 13:06:46.6 | 13:06:24.1 | 12°28.5'N | 017°39.3'W | 80.0° | 166.1° | 233.0 km | 07m50.05s |
Polynomial Besselian Elements: Annular Solar Eclipse of 1922 Mar 28
| Polynomial Besselian Elements | ||||||
| 1922 Mar 28 at 13:00:00.0 TD (=t0) | ||||||
| n | x | y | d | l1 | l2 | μ |
| 0 | -0.09537 | 0.14927 | 2.8058 | 0.56889 | 0.02262 | 13.6710 |
| 1 | 0.48489 | 0.15304 | 0.0159 | -0.00006 | -0.00006 | 15.0044 |
| 2 | 0.00002 | -0.00002 | -0.0000 | -0.00001 | -0.00001 | -0.0000 |
| 3 | -0.00001 | -0.00000 | - | - | - | - |
| Tan ƒ1 | 0.0046839 |
| Tan ƒ2 | 0.0046606 |
At time t1 (decimal hours), each besselian element is evaluated by:
x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)
where: t = t1 - t0 (decimal hours) and t0 = 13.000
