Annular Solar Eclipse of 2002 Jun 10

Fred Espenak

Introduction


The Annular Solar Eclipse of 2002 Jun 10 is visible from the following geographic regions:

  • Partial Eclipse: east Asia, Australia, west North America
  • Annular Eclipse: north Pacific, west Mexico

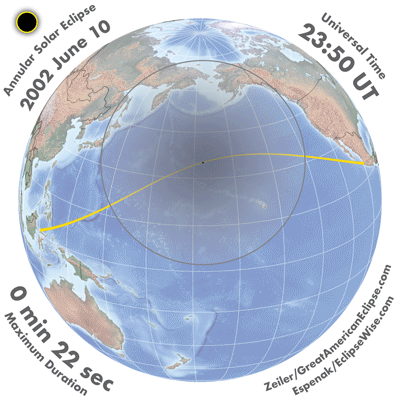

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2002 Jun 10 at 23:45:22 TD (23:44:18 UT1). This is 6.4 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 983.

The eclipse belongs to Saros 137 and is number 35 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2002 Jun 10 is a very short annular eclipse with a duration at greatest eclipse of 00m23s. It has an eclipse magnitude of 0.9962.

The annular solar eclipse of 2002 Jun 10 is preceded two weeks earlier by a penumbral lunar eclipse on 2002 May 26, and it is followed two weeks later by a penumbral lunar eclipse on 2002 Jun 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 64.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2002 Jun 10 .


Eclipse Data: Annular Solar Eclipse of 2002 Jun 10

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.99623
Eclipse Obscuration 0.99246
Gamma 0.19933
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2002 Jun 10 at 23:45:22.2 TD (23:44:17.9 UT1) 2452436.489096
Ecliptic Conjunction 2002 Jun 10 at 23:47:35.5 TD (23:46:31.2 UT1) 2452436.490639
Equatorial Conjunction 2002 Jun 10 at 23:49:19.1 TD (23:48:14.8 UT1) 2452436.491838
Geocentric Coordinates of Sun and Moon
2002 Jun 10 at 23:45:22.2 TD (23:44:17.9 UT1)
Coordinate Sun Moon
Right Ascension05h16m04.1s05h15m55.6s
Declination+23°03'18.9"+23°14'25.0"
Semi-Diameter 15'45.1" 15'27.1"
Eq. Hor. Parallax 08.7" 0°56'42.5"
Geocentric Libration of Moon
Angle Value
l -5.1°
b -0.2°
c -2.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 64.3 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 137 (35/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2002 Jun 10

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP120:52:54.320:51:50.002°29.9'S137°58.2'E
First Internal ContactP223:00:25.222:59:20.915°07.1'N098°25.6'E
Last Internal ContactP300:30:14.500:29:10.233°17.8'N081°11.4'W
Last External ContactP402:37:41.902:36:37.616°01.2'N122°15.9'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N122:37:54.822:36:50.535°01.4'N093°18.3'E
South Extreme Path Limit 1S121:48:20.521:47:16.227°36.4'S135°54.3'E
North Extreme Path Limit 2N200:52:39.400:51:35.151°48.3'N070°16.4'W
South Extreme Path Limit 2S201:42:28.001:41:23.609°14.8'S119°27.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2002 Jun 10

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU121:54:55.321:53:51.001°16.1'N120°51.8'E
First Internal ContactU221:56:13.521:55:09.201°23.5'N120°29.1'E
Last Internal ContactU301:34:30.401:33:26.119°51.8'N104°38.6'W
Last External ContactU401:35:42.701:34:38.419°45.1'N105°00.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N121:55:48.921:54:44.601°38.0'N120°29.0'E
South Extreme Path Limit 1S121:55:19.921:54:15.601°01.6'N120°51.8'E
North Extreme Path Limit 2N201:34:53.101:33:48.820°05.1'N104°37.8'W
South Extreme Path Limit 2S201:35:20.001:34:15.719°31.8'N105°00.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2002 Jun 10

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C121:55:34.421:54:30.101°19.8'N120°40.5'E
Extreme Central Line Limit 2C201:35:06.601:34:02.319°48.4'N104°49.3'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse23:45:22.223:44:17.934°33.0'N178°53.3'W 78.3° 169.0° 13.5 km00m22.82s
Greatest Duration21:55:34.421:54:30.101°19.8'N120°40.5'E 0.0° 66.9° 78.3 km01m12.62s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2002 Jun 10

Polynomial Besselian Elements
2002 Jun 11 at 00:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.09390 0.21902 23.0555 0.55168 0.00549 180.1334
1 0.52745 0.09319 0.0028 -0.00012 -0.00012 14.9993
2 0.00004 -0.00016 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046054
Tan ƒ2 0.0045824

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 0.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2002 Jun 10

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2002 Jun 10 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 64.3 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
