Annular Solar Eclipse of 2066 Jun 22

Fred Espenak

Introduction


The Annular Solar Eclipse of 2066 Jun 22 is visible from the following geographic regions:

  • Partial Eclipse: North America, north Europe, north Asia
  • Annular Eclipse: Russia, Alaska, Canada

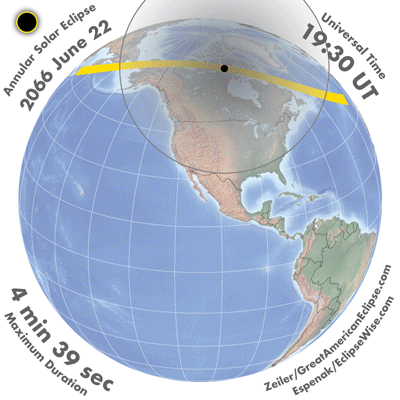

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2066 Jun 22 at 19:25:48 TD (19:24:11 UT1). This is 0.4 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1775.

The eclipse belongs to Saros 128 and is number 61 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2066 Jun 22 is followed two weeks later by a partial lunar eclipse on 2066 Jul 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 96.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2066 Jun 22 .


Eclipse Data: Annular Solar Eclipse of 2066 Jun 22

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.94346
Eclipse Obscuration 0.89012
Gamma 0.73297
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2066 Jun 22 at 19:25:47.7 TD (19:24:11.0 UT1) 2475824.308460
Ecliptic Conjunction 2066 Jun 22 at 19:17:05.8 TD (19:15:29.0 UT1) 2475824.302420
Equatorial Conjunction 2066 Jun 22 at 19:15:57.6 TD (19:14:20.9 UT1) 2475824.301631
Geocentric Coordinates of Sun and Moon
2066 Jun 22 at 19:25:47.7 TD (19:24:11.0 UT1)
Coordinate Sun Moon
Right Ascension06h07m28.7s06h07m48.1s
Declination+23°25'11.2"+24°04'22.4"
Semi-Diameter 15'44.2" 14'42.0"
Eq. Hor. Parallax 08.7" 0°53'57.0"
Geocentric Libration of Moon
Angle Value
l -0.3°
b -0.8°
c -0.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 96.7 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 128 (61/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2066 Jun 22

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP116:41:43.116:40:06.431°18.0'N174°43.8'W
Last External ContactP422:09:56.022:08:19.319°40.5'N052°36.1'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N117:16:00.217:14:23.515°20.5'N174°51.4'W
South Extreme Path Limit 1S121:35:36.821:34:00.103°28.3'N051°25.5'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2066 Jun 22

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU118:02:00.718:00:24.046°50.8'N152°57.1'E
First Internal ContactU218:08:50.318:07:13.548°48.0'N149°06.4'E
Last Internal ContactU320:42:52.020:41:15.338°00.0'N019°58.0'W
Last External ContactU420:49:40.920:48:04.235°53.9'N023°10.7'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:08:13.218:06:36.549°07.8'N148°52.8'E
South Extreme Path Limit 1S118:02:40.418:01:03.646°29.5'N153°09.3'E
North Extreme Path Limit 2N220:43:29.120:41:52.438°21.5'N019°51.3'W
South Extreme Path Limit 2S220:49:01.320:47:24.535°31.1'N023°16.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2066 Jun 22

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C118:05:23.118:03:46.447°47.9'N151°05.5'E
Extreme Central Line Limit 2C220:46:18.820:44:42.136°55.2'N021°37.0'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse19:25:47.719:24:11.070°07.9'N096°53.7'W 42.6° 197.5° 308.5 km04m39.78s
Greatest Duration19:22:58.919:21:22.170°31.1'N099°38.9'W 42.5° 192.6° 308.3 km04m39.81s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2066 Jun 22

Polynomial Besselian Elements
2066 Jun 22 at 19:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.13371 0.75274 23.4182 0.56572 0.01946 104.4337
1 0.50266 -0.05671 -0.0004 0.00000 0.00000 14.9990
2 -0.00001 -0.00018 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046015
Tan ƒ2 0.0045786

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2066 Jun 22

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2066 Jun 22 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 96.7 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
