Solar Eclipse Prime Page

Annular Solar Eclipse of 2067 Jun 11

Fred Espenak

Introduction


The Annular Solar Eclipse of 2067 Jun 11 is visible from the following geographic regions:

  • Partial Eclipse: Americas
  • Annular Eclipse: Central Pacific, Ecuador, Peru

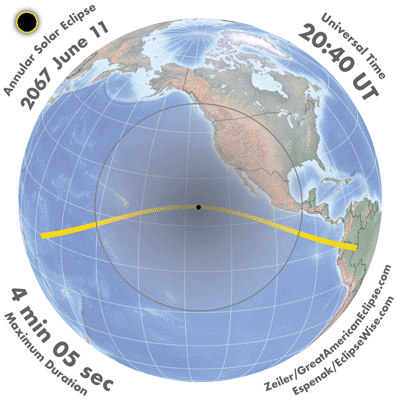

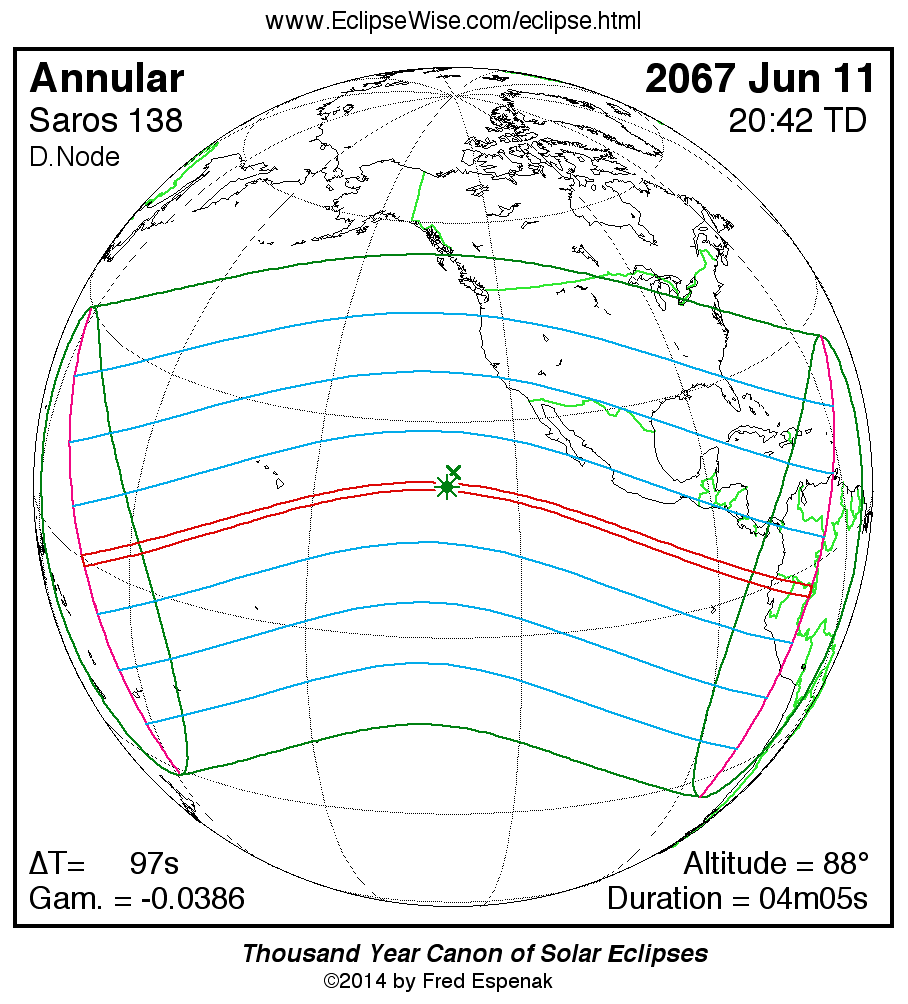

The map to the right depicts the geographic regions of eclipse visibility. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2067 Jun 11 at 20:42:26 TD (20:40:49 UT1). This is 4.3 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1787.

The eclipse belongs to Saros 138 and is number 34 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2067 Jun 11 is preceded two weeks earlier by a penumbral lunar eclipse on 2067 May 28, and it is followed two weeks later by a penumbral lunar eclipse on 2067 Jun 27.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 97.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2067 Jun 11 .


Eclipse Data: Annular Solar Eclipse of 2067 Jun 11

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.96702
Eclipse Obscuration 0.93513
Gamma-0.03865
Conjunction Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2067 Jun 11 at 20:42:26.4 TD (20:40:49.0 UT1) 2476178.361678
Ecliptic Conjunction 2067 Jun 11 at 20:42:53.4 TD (20:41:15.9 UT1) 2476178.361990
Equatorial Conjunction 2067 Jun 11 at 20:42:35.2 TD (20:40:57.7 UT1) 2476178.361780
Geocentric Coordinates of Sun and Moon
2067 Jun 11 at 20:42:26.4 TD (20:40:49.0 UT1)
Coordinate Sun Moon
Right Ascension05h20m58.3s05h20m58.0s
Declination+23°07'36.6"+23°05'29.3"
Semi-Diameter 15'45.1" 15'00.0"
Eq. Hor. Parallax 08.7" 0°55'03.2"
Geocentric Libration of Moon
Angle Value
l 3.8°
b 0.1°
c -5.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 97.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 138 (34/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2067 Jun 11

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP117:41:42.117:40:04.700°22.1'N175°12.5'W
First Internal ContactP219:51:38.719:50:01.202°56.8'S153°43.4'E
Last Internal ContactP321:33:13.121:31:35.606°24.1'S055°40.5'W
Last External ContactP423:43:15.923:41:38.403°05.2'S086°45.5'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N119:13:01.319:11:23.830°04.0'N147°48.5'E
South Extreme Path Limit 1S118:57:12.118:55:34.731°21.5'S178°50.6'W
North Extreme Path Limit 2N222:11:53.122:10:15.626°43.4'N050°10.4'W
South Extreme Path Limit 2S222:27:40.022:26:02.534°41.2'S083°44.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2067 Jun 11

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU118:45:02.018:43:24.500°19.4'S169°15.3'E
First Internal ContactU218:48:12.618:46:35.100°22.7'S168°29.0'E
Last Internal ContactU322:36:38.622:35:01.103°50.1'S070°25.4'W
Last External ContactU422:39:53.822:38:16.303°46.7'S071°12.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:46:52.818:45:15.300°21.7'N168°29.9'E
South Extreme Path Limit 1S118:46:22.618:44:45.101°03.7'S169°14.0'E
North Extreme Path Limit 2N222:38:00.322:36:22.903°04.6'S070°26.4'W
South Extreme Path Limit 2S222:38:31.222:36:53.804°32.0'S071°11.6'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2067 Jun 11

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C118:46:37.318:44:59.800°21.0'S168°52.1'E
Extreme Central Line Limit 2C222:38:16.222:36:38.703°48.3'S070°49.1'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse20:42:26.420:40:49.021°02.4'N130°43.1'W 87.9° 2.0° 118.9 km04m05.22s
Greatest Duration20:43:56.920:42:19.521°00.9'N129°53.4'W 87.8° 342.6° 119.0 km04m05.23s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2067 Jun 11

Polynomial Besselian Elements
2067 Jun 11 at 21:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.15015 -0.04359 23.1277 0.56014 0.01392 135.0310
1 0.51736 -0.01696 0.0027 0.00008 0.00008 14.9992
2 -0.00002 -0.00015 -0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046056
Tan ƒ2 0.0045827

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2067 Jun 11

Links to Additional Solar Eclipse Information

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2067 Jun 11 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 97.5 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
